Woodworking Machinery

Straw Peanut Shell Pellet Forming Line

Jiangsu Liangyou Zhengda Co., Ltd.
  • Type:Ring Die Pellet Machine
  • Voltage:220V
  • Automatic Grade:Automatic
  • Controlling Mode:CNC
  • Energy Saving:Energy Saving
  • Certification:CE, ISO

Base Info

  • Model NO.:FDSP series
  • Warranty:1 Year
  • Customized:Customized
  • Condition:New
  • Color:Multi Color
  • After-sales Service:Provided
  • Material of The Machinery:Stainless Steel or Carbon Steel
  • Size and Weight:as Per Requirements
  • Motor Brand of Thte Main Pelletizer:Siemens
  • Oil Seal of The Pelletizer:Imported From Germany
  • Bearing Brand of The Pelletizer:SKF
  • Transport Package:Iron Pallet
  • Specification:2000KG
  • Trademark:FDSP
  • Origin:Jiangsu China
  • HS Code:8479300000
  • Production Capacity:2 Sets Per Month

Description

Basic Info.

Model NO. FDSP series Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Material of The Machinery Stainless Steel or Carbon Steel Size and Weight as Per Requirements Motor Brand of Thte Main Pelletizer Siemens Oil Seal of The Pelletizer Imported From Germany Bearing Brand of The Pelletizer SKF Transport Package Iron Pallet Specification 2000KG Trademark FDSP Origin Jiangsu China HS Code 8479300000 Production Capacity 2 Sets Per Month

Product Description

                               Straw peanut shell pellet forming line

What Materials Can Be Pelletized By Ring Die Wood Pellet Mill?
Nearly all forestry and agro-waste material can be made into wood pellets by our ring die wood pellet mill, such as: Wood Chips, Shaving, Sawdust, Groundnutshell, Sugarcane ,Caster Shells/Stalk, Coffee Husk, Paddy Straw, Sunflower Stalk, Cotton Stalks, Tobacco Waste, Mustard Stalk, Jute Waste, Bamboo Dust, Tea Waste, Wheat Straw, Palm husk, Soybeans Husk, Coir Pitch Barks/Straws, Rice Husks etc. The final pellets can be used for industrial boilers and large power plants as well as home heating.

Straw Peanut Shell Pellet Forming Line
Straw Peanut Shell Pellet Forming Line

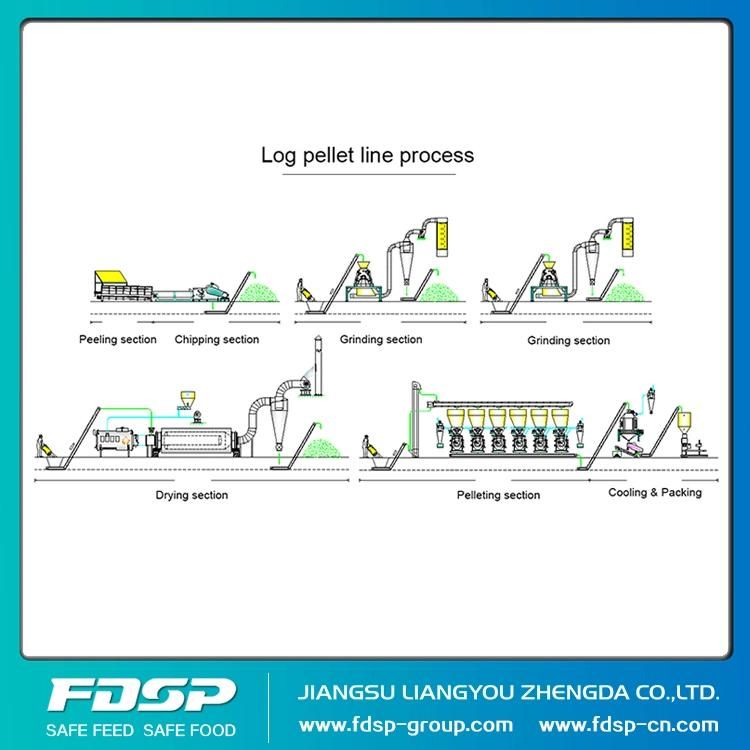

Description of complete biomass wood pellet production line:
We can provide different kind of complete biomass pellet production line. The biomass pellet production line suitable for press the different kind of wood wast, wood scrap, wood shaving and other biomass materials such as rice husk, corn cob, straw , palm fiber and other agricultural waste into good quality biomass fuel pellets.

The complete wood pellet production line including the follow sections:
wood sawdust making section, for cutting the log wood or wood branches into sawdust directly.

the drying section, for drying the wet materials into good moisture content about 15%.

The pellet making section, this is the mainly part of this wood pellet production line, good for press 100% sawdust powder  or any other kind of biomass materials into good quality pellets.

The cooling and screening section, for cooling the pellets and separate the dust and broken pellets,made the output pellets is good for storage.

The packing section, for packing the final produces into bags, normally can be 15-50kg/bags.
the control section, for different control cabinet and control system to control all the equipment, with overload protection system and also with motor protection system inside the control cabinet.

 Straw Peanut Shell Pellet Forming Line


Parameters of wood pellet mill:
ModelMZLH420MZLH520MZLH680MZLH780
Capacity(T/H)0.8-1.21.5-1.82-2.52.5-3.5
Main motor power(kw)75/90110/132160/185200/220
Feeder power(kw)2.2344
Ring die dia(mm)420520680780
Pellets dia(mm)6-86-86-86-8


Detail Quotation Solutions for you, we need to know Information as Follows:
(1). What capacity would your prefer?
-----The Capacity Range of Wood Pellet Machine: 0.8-1T; 1.5-2T; 2-3T;3-4T.

(2).What is your raw material?
-----According to different raw material(such as hard wood,soft wood,straw,rice hust), capacity is different.

(3).What is your raw material size?
-----Best size for pressing high quality pellets is 3mm-5mm.

(4).What is the moisture of your raw material?
-----Better to be 10-15%.( If large than this, then we will recommend your Dryer Machine)

(5).Final Pellets Size?
-----We have Diameter for Pellets:6mm, 8mm, 10mm, 12mm, (Different Diameters for your Different Requirement.)
------Pellets Length: Adjustable20-50mm. (Normally our clients ask pellets length of 33mm, between 30-36mm)

Straw Peanut Shell Pellet Forming Line
Company View:

FDSP has been devoting to feed machinery industry since its establishment in 2003. It covers an area of 30000 square meters, locating in the zhongguancun science&technology industrial park in Liyang City, Jiangu Province, PRC.

FDSP is focusing on profession, keeping innovation and exploration. The core concept in FDSP Company can be generalized into five words: Quality, Sincerity, Perfection, Exploration & Innovation.
Straw Peanut Shell Pellet Forming Line
Customers visiting:
FDSP has exported Feed machinery to 30 countries including Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, Iran etc.Welcome customers from all around the world visiting.
