Xe300 Nesting CNC Router Machine for Wood AMD Furniture in China
Hefei Aquila CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE, Ce, ISO 9001
- CNC or Not：CNC
- Voltage：380V
- Application：Wood
- Process Usage：CNC Non-Conventional Machine Tools
Base Info
- Model NO.：XE300
- Movement Method：Contour Control
- Control Method：Closed-Loop Control
- Numerical Control：CNC,Mnc
- Processing Precision：0.01~0.02(mm)
- Performance Classification：MID-Range CNC Machine Tools
- Configuration：6kw+4.5kw+Drilling Bank (5+4)
- Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
- Specification：Working Area: 1300*2500*200mm
- Trademark：Mars
- Origin：China
- HS Code：8465990000
- Production Capacity：3000 Sets,Year
Description
OthersLubrication System Automatic Transmission XY axis rack and pinion, Z axis ball screw Guide Rail Taiwan PMI/Hiwin rectangular linear rail(Y 30mm, X/Z 25mm) Inverter Zoncn/Fuling brand Vacuum Pump 1*7.5KW double leaf vacuum pump Max Travelling Speed 50m/min Max Processing Speed 30m/min Working Accuracy ±0.02mm Re-positioning Accuracy ±0.05mm Dictate Format G-Code / HPGL Working Voltage AC380V/ 3PH/ 50HZ Support Software Professional cutting optimization software(JiFusen/Yunxi/Tomder/Haisense) Net Weight 3000KG

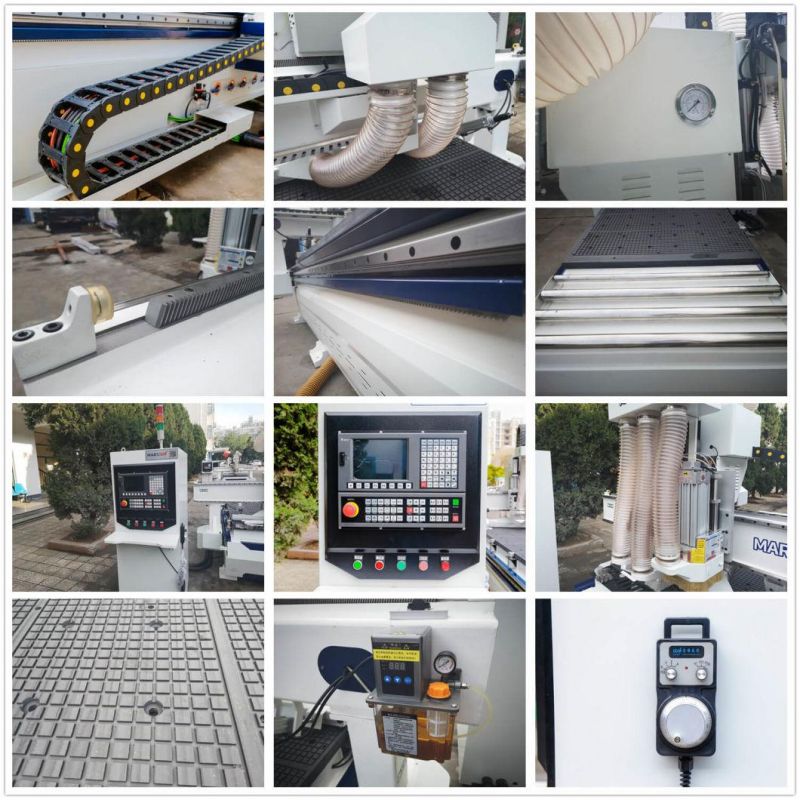

Accessories:
Accessories:
Performance Features:
| 1 | Equipped with all the leading international brand components, Japan Yaskawa servo motor and driver |
| 2 | Machine body structure is made of welded thick-walled square steel tube, with five-sided tempering, to ensure the body never deformation |
| 3 | Vacuum table, high adsorption capacity, able to adsorb materials of different sizes |
| 4 | Taiwan-made guide rail and ball screw, high precision, long service life, good stability |
| 5 | Advanced control system, easy to operation,fully support automatic production. It can automatically accomplish multi-layer 3D job, cutting, engraving, milling. Offline operation can be realized. |
| 6 | Taiwan planetary reducer, with small volume, large torque, high transmission efficiency, wide range of deceleration |
Samples:

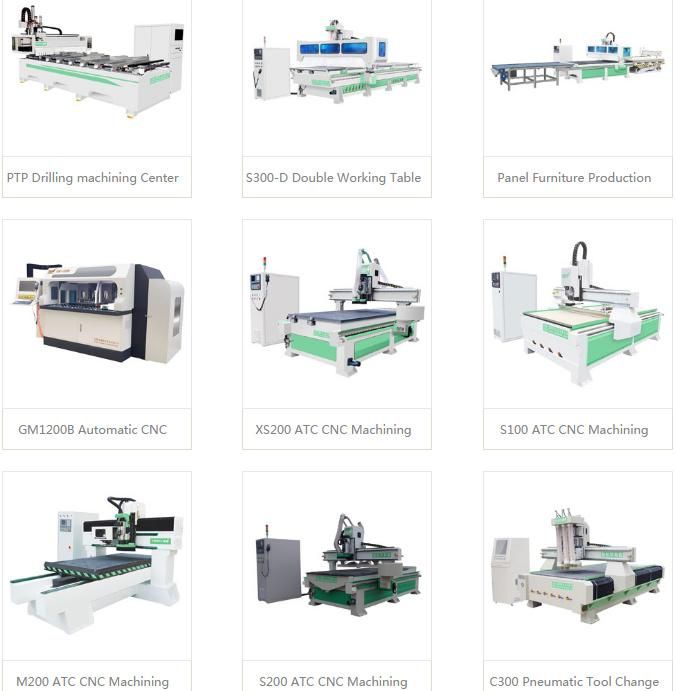

Similar Products:
