• Model NO.：QMB633H-D
• Motor Power：＞10Kw
• Cutter Shaft：6
• Spindle Speed：＞5000rpm
• Process Type：Heavy Processing
• Certification：CE, ISO
• After-sales Service：3 years
• Certificate：Ce & ISO
• Product name：4-sided moulder
• Transport Package：Plywood Carton
• Specification：6000x2280x2090
• Trademark：Qingcheng
• Origin：China
• HS Code：84659200
• Production Capacity：5000set,Set

Basic Info.

Model NO. QMB633H-D Motor Power ＞10Kw Cutter Shaft 6 Spindle Speed ＞5000rpm Process Type Heavy Processing Certification CE, ISO After-sales Service 3 years Certificate Ce & ISO Product name 4-sided moulder Transport Package Plywood Carton Specification 6000x2280x2090 Trademark Qingcheng Origin China HS Code 84659200 Production Capacity 5000set/Set

Product Description

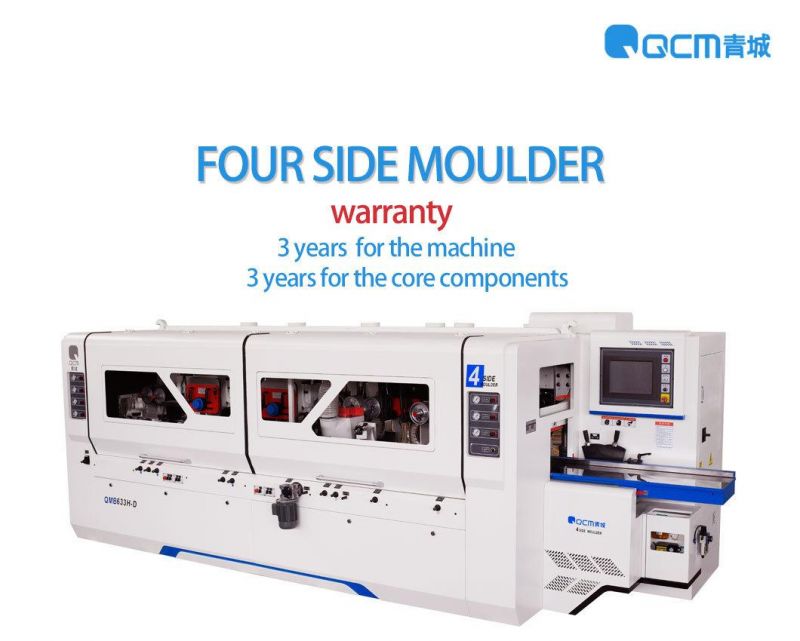

4-side Planer/Four-Side Moulder/Woodworking planer/Moulder Machinery For Wooden Furniture
QMB633H-D




Specifications	Unit	QMB633H-D
Working width	mm	50-330
Working thickness	mm	20-250
Min.working length(intermittent/continuous)	mm	700/300
Dia of spindle	mm	Φ50
Dia of feeding roller	mm	Φ180
Feeding speed	m/min	8-36
Rotation speed of spindle	r/min	6000
Cutter dia of first bottom cutter	mm	Φ140
Left/Right vertical cutter	mm	Φ140-Φ230
The first upper cutter	mm	Φ140-Φ230
The Second upper cutter	mm	Φ140-Φ230
Back bottom cutter	mm	Φ140-Φ230
Universal spindle	mm	/
Total power	kW/HP	84/112
The first bottom cutter	kW/HP	11/15
Left vertical cutter	kW/HP	11/15
Right vertical cutter	kW/HP	11/15
The First upper cutter	kW/HP	15/20
The second upper cutter	kW/HP	11/15
The second bottom cutter	kW/HP	11/15
Universal spindle	kW/HP	/
Feeding motor	kW/HP	11/15
Beam lifting motor	kW/HP	1.5/2
upper cutter lifting motor	kW/HP	0.75/1
Radial adjustment of the vertical spindle	kW/HP	0.37/0.5
Rear pressing plate elevation	kW/HP	0.37/0.5
Side feeding motor	kW/HP	/
Belt conveyor	kW/HP	/
Disc conveyor	kW/HP	/
Suction hood dia	mm	6*Φ180
Air supply pressure	Mpa	0.6
Overall dimensions	mm	6000x2280x2090
Weight	kg	9600

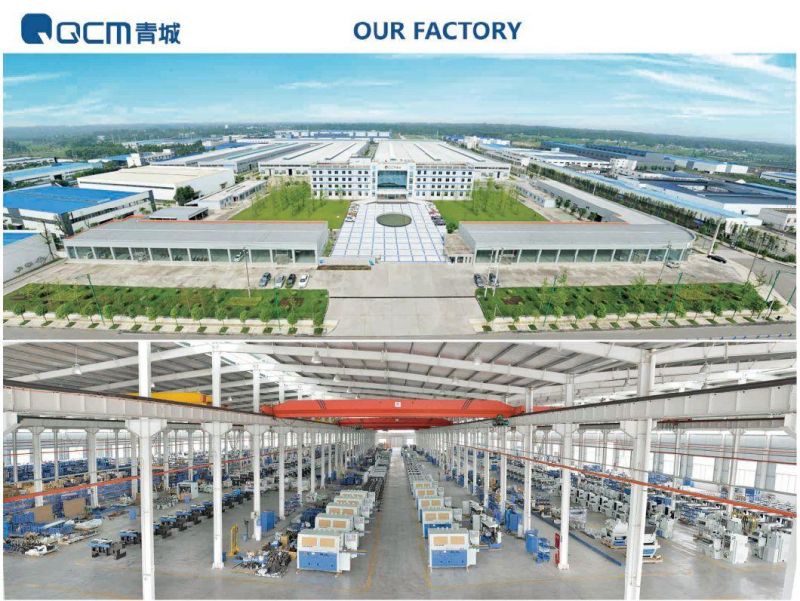

Qingcheng Machinery Co.,LTD established in 1970 which are speclializing in producing all kinds of woodworking machines, like Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoning Machine, Wood Planer etc.

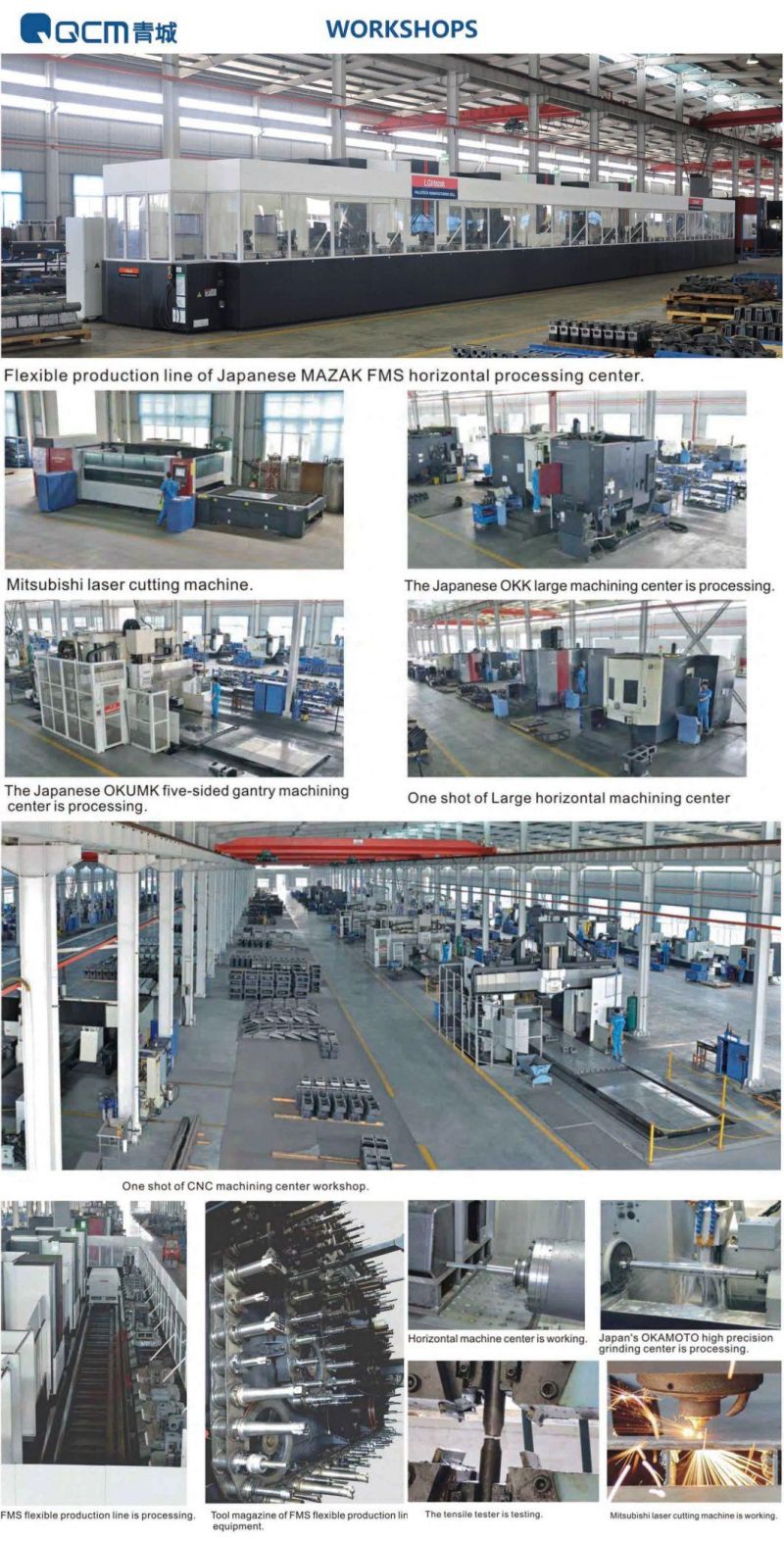

It's been 70years since we have devoted our-self to the development and manufacturing of woodworking machinery. As a top manufacturer in wood machinery, we insist on investment on research and develop and equipment. We have purchased vertical machining centers, muti-function CNC lathes produced by Japan Mazak, horizontal machining centers of Japan MAKINO, Japanese gantry machining centers of OKUMA, and laser cutting machines from Mitsubishi.

Those advanced equipment insure you precision, performance and durability, with mass production in big quantity. So that we can insure our customers fast delivery time, high quality and perfect performance.





FAQ

Below FAQ for your reference, if you have any further questions, we are always here for you.

1, Manufacturer or Trading company?
Yes, we are professional machine producer since 1970.During the last 70 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.

2, What's your payment term?
30% deposit and 70% balance should be paid before delivery.

3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.

4, Warranty of four side moulder?
Its warranty is 12 months.

5, What's your leading time?
Within 2 days for regular stocked machine after receiving deposit.
2 months for OEM machines.

7, What's your delivery term?
---FOB shanghai/Ningbo
