• Model NO.：QMB418E-GH
• Motor Power：5-10Kw
• Cutter Shaft：4
• Spindle Speed：＞5000rpm
• Process Type：Medium-Sized Processing
• Certification：CE, ISO
• After-sales Service：3 years
• Certificate：Ce & ISO
• Product Name：four side milling machine
• Transport Package：Plywood Carton
• Specification：2930x1480x1600
• Trademark：Qingcheng
• Origin：China
• HS Code：84659200
• Production Capacity：100set,M

Basic Info.

Model NO. QMB418E-GH Motor Power 5-10Kw Cutter Shaft 4 Spindle Speed ＞5000rpm Process Type Medium-Sized Processing Certification CE, ISO After-sales Service 3 years Certificate Ce & ISO Product Name four side milling machine Transport Package Plywood Carton Specification 2930x1480x1600 Trademark Qingcheng Origin China HS Code 84659200 Production Capacity 100set/M

Product Description

Woodworking machinery wood 4-side Planer Four-Side Moulder/ Woodworking planer/Moulder Machinery For Wooden Furniture/ wooden panels/wooden mouldings

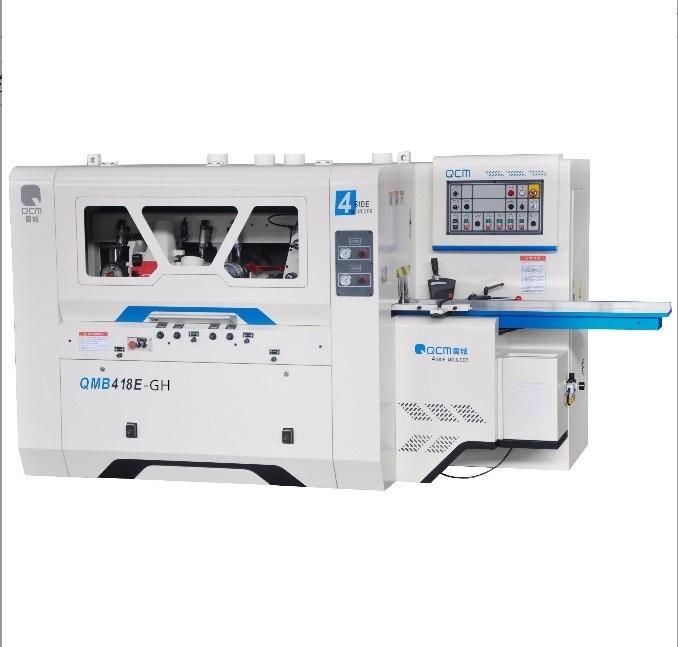

QMB418E-GH



Specifications	Unit	QMB418E-GH
Working width	mm	20-180
Working thickness	mm	8-110
Min.working length(intermittent/continuous)	mm	500/250
Dia of spindle	mm	Φ40
Feeding speed	m/min	10-45
Rotation speed of spindle	r/min	/
The First spindle speed	r/min	6800
Other spindle speed	r/min	8000
Cutter dia of first bottom cutter	r/min	Φ125
Left/Right vertical cutter	mm	Φ115-Φ170
The first upper cutter	mm	Φ105-Φ150
The Second upper cutter	mm	/
Back bottom cutter	mm	/
The Second right vertical cutter	mm	/
Total power	kW/HP	26.25/35
The First bottom cutter	kW/HP	5.5/7.5
Left vertical cutter	kW/HP	5.5/7.5
Right vertical cutter	kW/HP	4/5.5
The first upper cutter	kW/HP	7.5/10
The second upper cutter	kW/HP	/
The second bottom cutter	kW/HP	/
The second right vertical cutter	kW/HP	/
Feeding motor	kW/HP	3/4
Beam lifting motor	kW/HP	0.75/1
Air supply pressure	MPa	0.3-0.6
Vacuum port diameter	mm	4*Φ120
Overall dimensions	mm	2930x1480x1600
Weight	kg	2750

Qingcheng Machinery Co.,LTD established in 1970 which are speclializing in producing all kinds of woodworking machines, like Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoning Machine, Wood Planer etc.

It's been 50 years since we have devoted our-self to the development and manufacturing of woodworking machinery. During the last 50 years, we developed:

1. Our own casting foundry which can meet the demand of annual output of 15000 tons of large castings.
All the machines is cast in one piece which has advantage of high precision, high stablity.

2.Siemens electronic components for all the machines, well-organized and good stability.

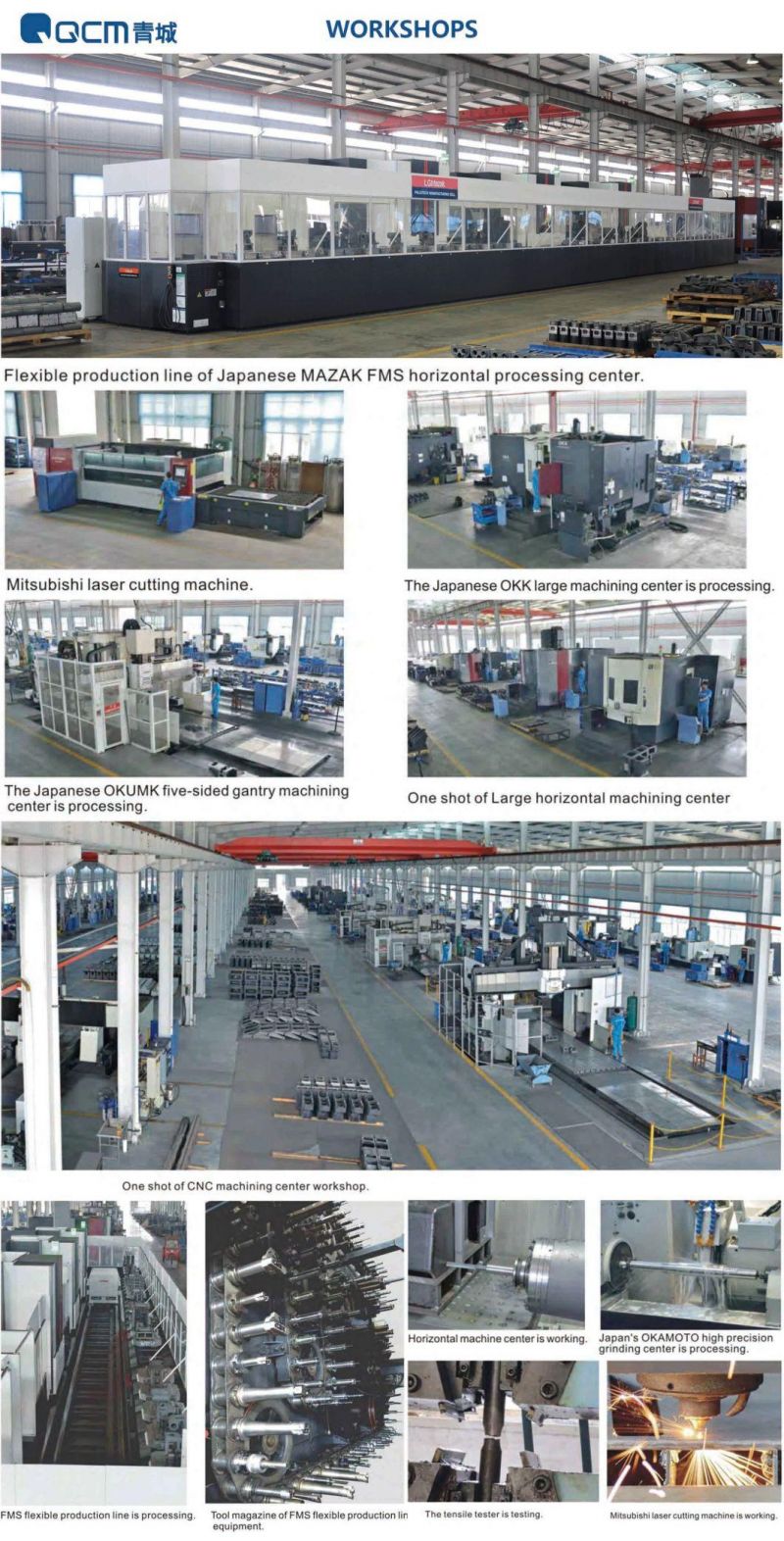

3.A complete and advanced processing mother-machines lines which costs 3 million dollars imported from Japan. High precision mother machines produce final machines with high precision, within  tolerance +-0.1S.

• Japan's OKUMA five-surface gantry machining-center
• Japan's LGMazak FMS flexible machining production line
• MAKINO horizontal machining center
• MORI SEIKI(nine-axis linkage) lathe-mill cutting center
• LGMazak vertical machining center
• Japan's Mitsubishi laser cutting machine
• Japan's OKK large machining center
• Japan's Okamoto CNC grinding center
• Japan's Mitutoyo three coordinate measuring machine.

Those advanced equipment insure you precision, performance and durability, with mass production in big quantity. So that we can insure our customers fast delivery time, high quality and perfect performance.






FAQ

Below FAQ for your reference, if you have any further questions, we are always here for you.

1, Manufacturer or Trading company?
Yes, we are professional machine producer since 1970. During the last 50 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.

2, What's your payment term?
30% deposit and 70% balance should be paid before delivery.

3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.

4, Warranty of your wood planer?
Its warranty is 12 months.

5, What's your leading time of planing moulding?
Within 2 days for regular stocked machine after receiving deposit.
2 months for OEM machines.

7, What's your delivery term of the wood planer?
---FOB shanghai/Ningbo
