• Model NO.：E300
• Transport Package：Plywood Case Package
• Specification：3000KG
• Trademark：Mars
• Origin：China
• HS Code：8458110090
• Production Capacity：300sets,Month

Basic Info.

Model NO. E300 Transport Package Plywood Case Package Specification 3000KG Trademark Mars Origin China HS Code 8458110090 Production Capacity 300sets/Month

Product Description

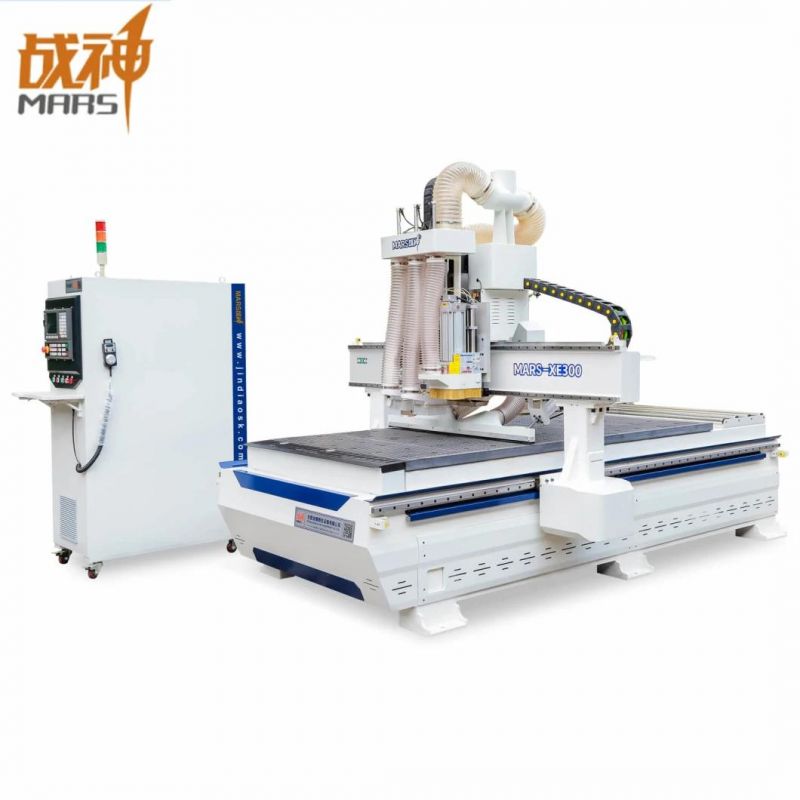

Panel Furniture Nesting CNC Router Machine/Gang Drill
CNC Cutting Machine

Keywords: 15 years experience of production
                         ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                        Three Brands: Mars, Golden Eagle, Boiro
                        Technicist who go abroad to offer after-sale service

Technical Parameter:


Model	E300 Gang Drill CNC Cutting Center
Working Stoke	1230*2440*50mm
Body Structure	Heavy-duty thicken steel structure, w/ tempering
Spindle Power	HQD 6KW+4.5KW air cooling spindle
Spindle Speed	0 ~ 24000 rpm/min
Drilling Bank	Italy HSD 5+4 gang drill
Control System	Syntec/ Osai
Drive System	Yaskawa/ Delta servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin rectangular linear rail
Vacuum Pump	5.5KW
Max Travelling Speed	50m/min
Max Processing Speed	30m/min
Dictate Format	G code/ HPGL
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Support Software	Professional cutting optimization software
Working Voltage	AC380/ 3PH/ 50HZ
Net Weight	3000KG
Machine Size	3700*3100*1900mm

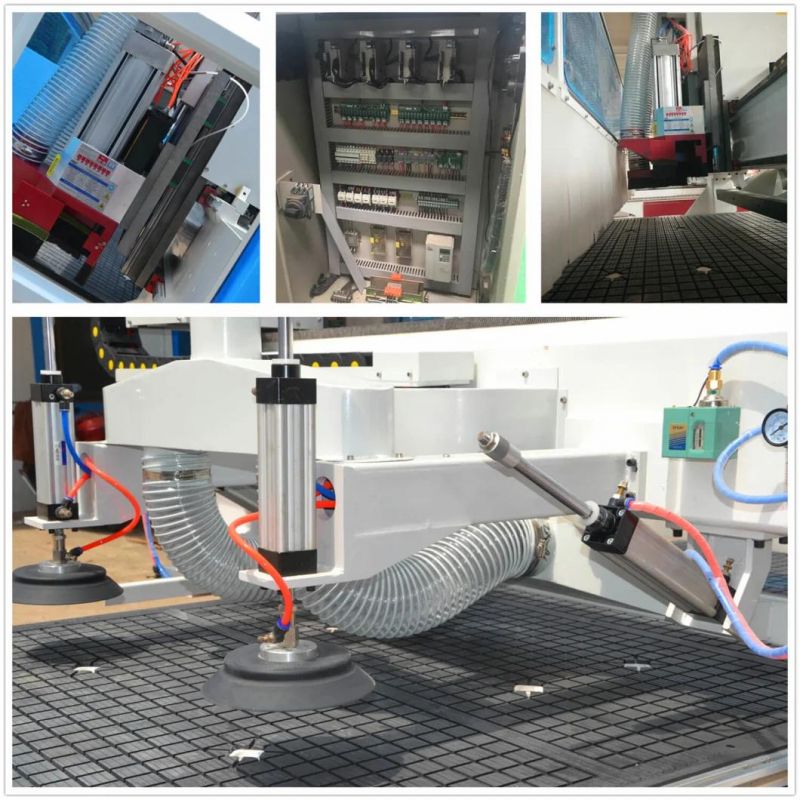

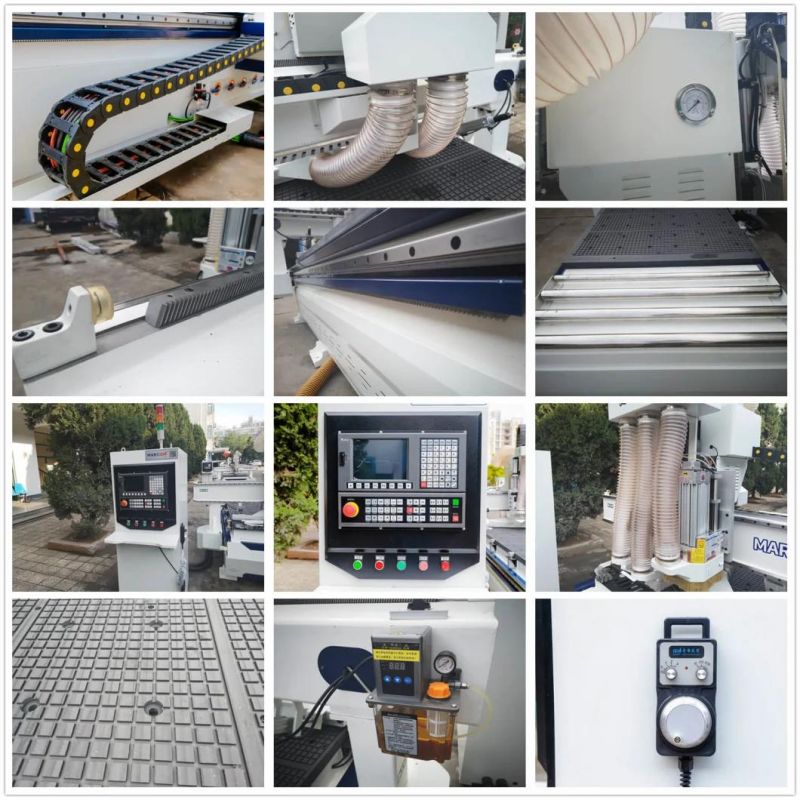

Machine Main Parts:






Performance Features:

1. Equipped with all the leading international brand components.
2. High-power Italy HSD air-cooling spindle, Japan YASKAWA servo motor and driver.
3. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
4. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.
5. Syntec CNC control system can automatically accomplish multi-layer 3D job, cutting, engraving, milling, all at ease. Offline operation can be realized.


Available Materials:



Samples:

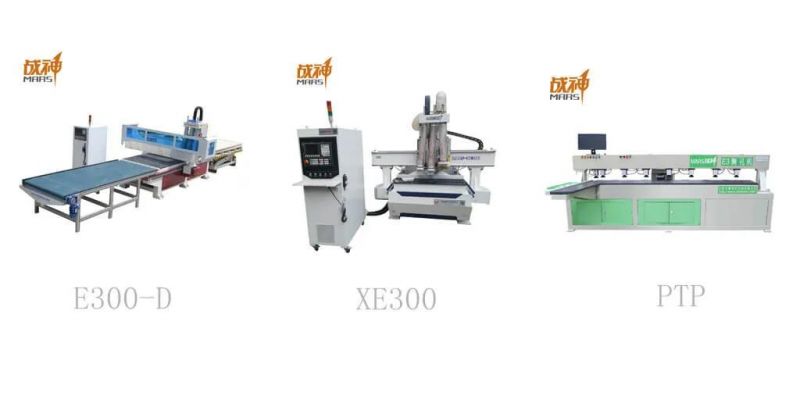

Related Machines
