• Model NO.：ET-468
• Min.length panel：120mm
• Min.width panel：60mm
• Manufacturing Principles：Glue Tank Underneath
• Customized：Customized
• Tapethickness：0.4-3mm
• PLC System：Delta Brand-Taiwan
• Guide Rail：Hiwin-Taiwan
• Electric Element：Airtac-Taiwan
• Option Fuction：Rough Trimming, Corner Tracking, Scrappin Slotting
• Panelthickness：12-55mm
• Workpiecethickness：10-60mm
• Heatingpower：2kw
• Feeding Speed：12-20 M,Min
• Pre-Heating Power：350 W
• Conveyor Belt：1.5 Kw
• Pre-Milling Power：2.2 Kw*2
• Glue Power：0.75kw
• Working Pressure：0.7 MPa
• Total Power：15 Kw
• Transport Package：Plywood Box with Strength Film
• Specification：5600*1100*1600 mm
• Trademark：ET
• Origin：China
• HS Code：8465940000
• Production Capacity：1000set,Year

Basic Info.

Model NO. ET-468 Min.length panel 120mm Min.width panel 60mm Manufacturing Principles Glue Tank Underneath Customized Customized Tapethickness 0.4-3mm PLC System Delta Brand-Taiwan Guide Rail Hiwin-Taiwan Electric Element Airtac-Taiwan Option Fuction Rough Trimming, Corner Tracking, Scrappin Slotting Panelthickness 12-55mm Workpiecethickness 10-60mm Heatingpower 2kw Feeding Speed 12-20 M/Min Pre-Heating Power 350 W Conveyor Belt 1.5 Kw Pre-Milling Power 2.2 Kw*2 Glue Power 0.75kw Working Pressure 0.7 MPa Total Power 15 Kw Transport Package Plywood Box with Strength Film Specification 5600*1100*1600 mm Trademark ET Origin China HS Code 8465940000 Production Capacity 1000set/Year

Product Description

ET-468 Fully Automatic woodworking edge bander with Corner Rouding

1) Used for different plate: MDF, block board, particle board, solid wood board, polywood, polymer plate, fire board etc.

2) Banding edge for desks,carbinet,wardrobe and stright line furniture.

3) Tape material can be PVC,melamine, veneer etc.

4) Can save lots of labors and cost, especially suitable for suitable for medium and large scale users.

5) Concentrated modern design for automatic woodworking production line.




Model	ET-468
Edge belt thickness	0.4-3mm
Edge belt width	12-62mm
Panel thickness	10-60mm
Feeding speed	12-20 m/min
Heating power	2 kw
Pre-heating power	350 w
Conveyor belt	1.5 kw
Pre-milling power	2.2 kw*2
Glue power	0.75kw
End trimming	0.37kw*2
Rough trimming	0.75kw*2
Fine trimming	0.75kw*2
Corner tracking	0.5kw*2
Scrapping
Buffing	0.37w*2
Working pressure	0.7 Mpa
Total power	15 kw
Dimension	5600*1100*1600 mm
Net Weight	2800 kg

1)Gluing and press mechanism adopts glue melting device to gelatinize the plates and tape uniformly, meanwhile make sure they canbe conglutinated firmly.
2)End-trimming mechanism is to cut the forward and rear tape after gluing and press process by the movement of the precise guide track, it is with automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly.
3)Rough &Fine Trimming unit, there are two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel to ensure both sides of the edge smooth and even.
4)Scraping unit for a perfect finishing of the applied edge. Buffing unit is equipped with cotton polishing wheels to make smooth surface by end-polishing.

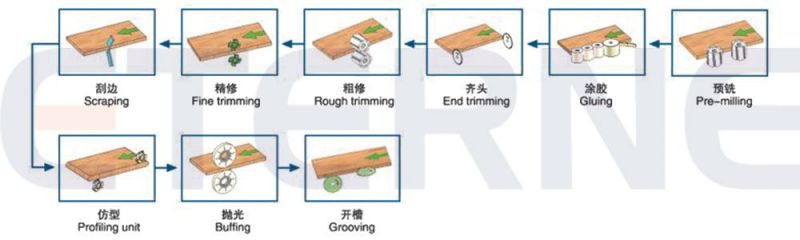

1) Multi-Fuction: Linear edge banding machine with Pre-milling--gluing--end trimming--rough trimming--fine trimming--scrapping--buffing.

2) Pre-milling is equipped with double trim-blades working on the waved effect in order to revise the plate before the following process.
3) Gluing and press mechanism adopts glue melting device to gelatinize the plates and tape uniformly, meanwhile make sure they can be conglutinated firmly.

4) End-trimming mechanism is to cut the forward and rear tape after gluing and press process by the movement of the precise guide track, it is with automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.

5) Rough &Fine Trimming unit, with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel, ensure both sides of the edge smooth and even.

6) Slotting unit, it is a optional function, used to slot out grooves on panel to install glass, back panel etc.
7) Scraping unit for a perfect finishing of the applied edge.

8) Buffing unit is equipped with cotton polishing wheels to make smooth surface by end-polishing.






1) Factory direct, with more than 17 years woodworking machinery production experience.
2) Can do OEM/ODM according to your request.
3) Engineer is available to help commissioning overseas.
4) Within 24 hours response if any enquiry and quick after-sales service system.
5) With own R&D strength .

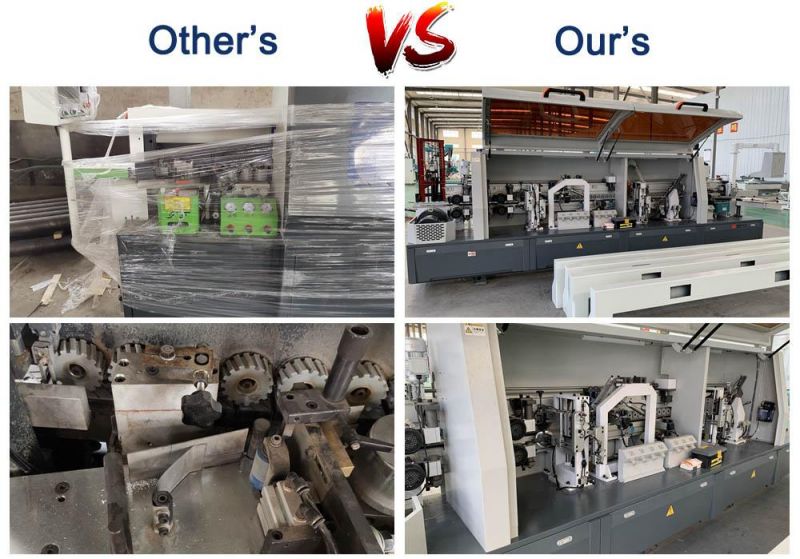

1.Other manufacture:Rough workmanship, no anti-rust treatment.
2.Our machines:With streamline oxidation treatment surface,the machine is attractive and durable.The heating plate is chorme plated instead of wape iron, it can has higher ragidity , higher heating speed, higher guiding precision, can work on -30 degree tempreture.

1.Q: Are you a manufacturer or trading company?
      A: We are a manufacturer, We are dedicated to pipe processing equipment manufacturing.

2.Q: Where is the nearest airport and port from your factory?
      A: The nearest airport and port is Qingdao.

3.Q: What is the spare parts about the machines?
      A:Pipe bender is seal components and valves.
      B:Pipe cutter is seal components and saw blades.

4.Q: How about the training and installment after we buy your machines?
      A: Our factory can send our engineer to the customer's factory install,commission and training freely. The customer provide the  double trip tickets,food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
