Woodworking Machinery

Multifunction High Precision 45 degrees Plywood MDF Acrylic Melamine Wood Board Sliding Table Panel Saw

JAYA INTERNATIONAL CO., LTD.
  • Warranty:one year
  • Type:Table Panel Saw
  • Power Type:Electric
  • Layout:Horizontal
  • Controlling Mode:Artificial
  • Automatic Grade:Automatic

Base Info

  • Model NO.:MJ6132YIA
  • Precision:High Precision
  • Certification:CE, ISO
  • Customized:Customized
  • Condition:New
  • Color:Customized
  • After-sales Service:online support
  • Saw Blade Titling:90-45
  • Scoring Motor:1.1kw
  • Main Motor:5.5kw
  • Scoring Saw Spindle Diameter:20mm
  • Main Saw Spindle Diameter:30mm
  • Scoring Saw Blade Speed:8800rpm
  • Main Saw Blade Speed:4000,6000rpm
  • Scoring Blade Diameter:120mm
  • Main Saw Blade Diameter:300mm
  • Max.Cutting Thickness:80mm
  • Max.Cutting Length:3100mm
  • Cutting Width Between Saw Blade and Rip:1200mm
  • Sliding Table Size:3200x375mm
  • N.W/G.W:750kgs,850kgs
  • Packing Size:2050*1110*1130mm 3250*425*290
  • Transport Package:Wooden Packing
  • Specification:2050*1110*1130mm 3250*425*290
  • Trademark:ZICAR
  • Origin:China
  • HS Code:8465990000
  • Production Capacity:500sets,Month

Description

Overview

Product Parameters



Detailed Photos

Product display

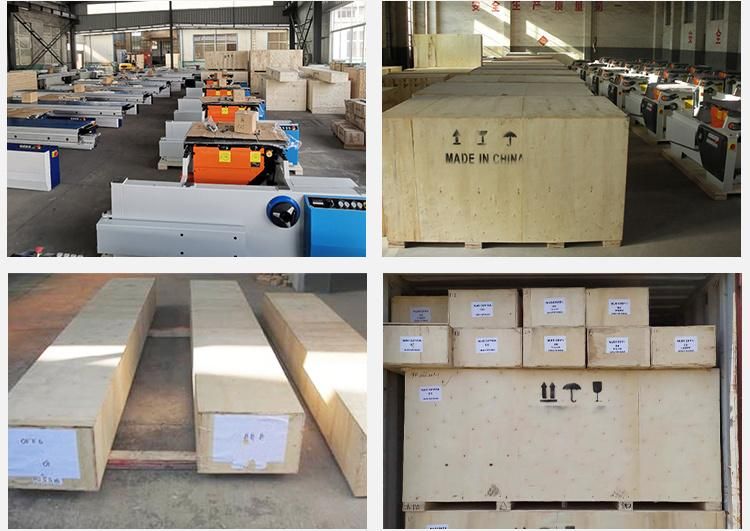

Packaging & Shipping

Multifunction High Precision 45 degrees Plywood MDF Acrylic Melamine Wood Board Sliding Table Panel Saw

Certifications

Multifunction High Precision 45 degrees Plywood MDF Acrylic Melamine Wood Board Sliding Table Panel Saw

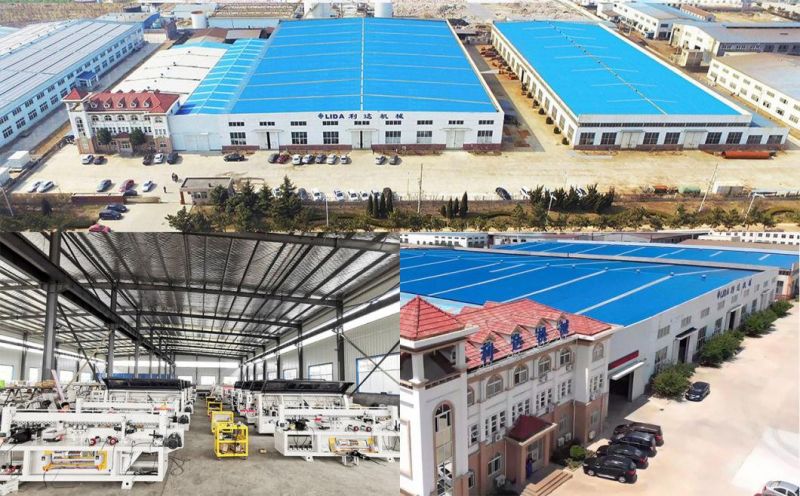

Company Profile

Multifunction High Precision 45 degrees Plywood MDF Acrylic Melamine Wood Board Sliding Table Panel Saw
FAQ

1.Our Payment Way?
L/C and T/T or other ways.

2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.

3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the roundtrip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.


4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provide engineer oversea service.
