• Model NO.：ZS2512R
• Drive System：Sg Servo Motor
• Spindle Motor Power：2*2.2kw,8*2.2kw Frequency Water-Cooling Spindle
• Lubrication System：Automatic
• Transmission：Xy Axis Rack and Pinion (PMI), Z Axis Ball Screw (
• Guide Rail：Taiwan PMI,Hiwin 25mm Rectangular Linear Rail
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：2.2kw Water Cooling Spindle
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. ZS2512R Drive System Sg Servo Motor Spindle Motor Power 2*2.2kw/8*2.2kw Frequency Water-Cooling Spindle Lubrication System Automatic Transmission Xy Axis Rack and Pinion (PMI), Z Axis Ball Screw ( Guide Rail Taiwan PMI/Hiwin 25mm Rectangular Linear Rail Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 2.2kw Water Cooling Spindle Trademark Mars Origin China HS Code 8465990000 Production Capacity 3000 Sets/Year

Product Description

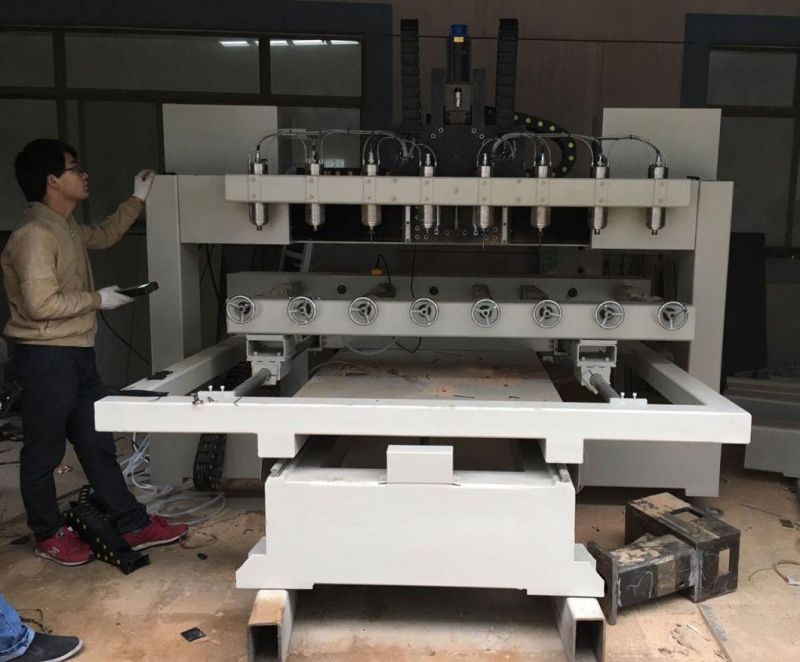

ZS2512R 1325 Wood 3D CNC Carving Machine 4 Axis Rotary Machine 4 Axis CNC Processing Center for Artware

Keywords:15 years experience of production
                   ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                   Three Brand: Mars, Golden Eagle,Borio




Description:
ZS2512R 1325 Wood 3D CNC Carving Machine 4 Axis Rotary Machine 4 Axis CNC Processing Center for Artware can process three-dimensional technology and complex workpiece;It can be used for 360-degree carving of human body,Buddha and crafts,etc.It is suitable for the carving of wood work.

Functions:
The function of this machine includes 360 degree carving.

Applicable Materials:
Acrylic, PVC, MDF(density board), artificial stone, organic glass, and other soft-metal sheets made of aluminum or copper.


Application Scope:
Can be widely used for the 3D processing of body sculpture, statues, artware, furniture, stone columns, etc..


Parameters:

Model	ZS2512R 1325 Wood 3D CNC Carving Machine 4 Axis Rotary Machine 4 Axis CNC Processing Center for Artware
Working Stoke	Ø250X1200mm
Feeding Height	160mm-250mm
Machine Size	2700*2000*2100mm
Working Table	Thick steel tube welded, with tempering
Table Structure	T-slot
Body Structure	Heavy-duty thicken steel structure with tempering
Control System	RichAuto-A11 DSP
Drive System	SG servo motor
Spindle Motor Power	2*2.2KW frequency water-cooling spindle; 0 ~ 24000 rpm/min
Lubrication System	Automatic
Transmission	XY axis rack and pinion (PMI), Z axis ball screw (TBI)
Guide Rail	Taiwan PMI/Hiwin 25mm rectangular linear rail
Engraving Tool	Ø3.175/ 4/ 6/ 12.7mm
Inverter	Zoncn/Fvling
Tool sensor	MARS
Limit switch	Japan Omron
Cable	MARS cable, anti-static, anti-interference, bending resistance
Beam	Reinforced steel beam
Max Travelling Speed	50m/min
Max Processing Speed	30m/min
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Dictate Format	G-Code / HPGL
Working Voltage	AC380V/ 3PH/ 50HZ
Support Software	Professional cutting optimization software(JiFusen/Yunxi/Tomder/Haisense)
Net Weight	2500KG

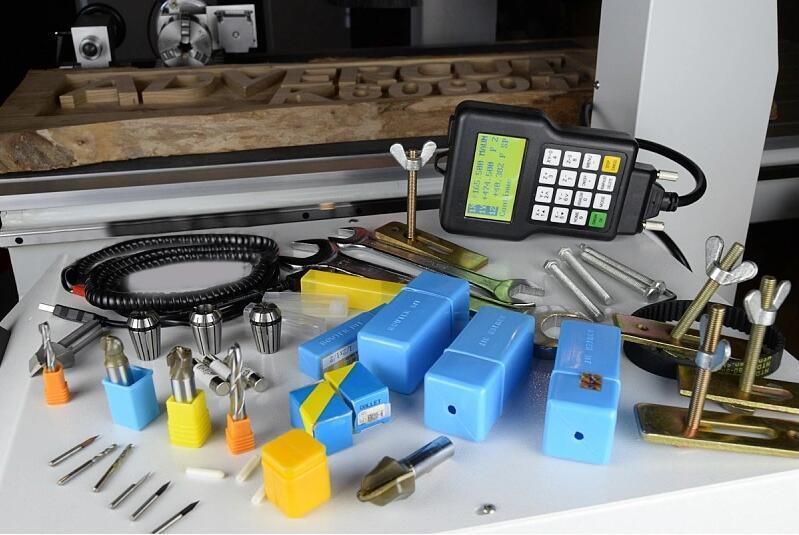

Accessories:




Performance Features:
1.Selection of imported ball screw, high precision dividing head, big clamping diameter, can be adapted to different sizes of cylindrical material.
2.National patent box-type column.
3.High-precision drive systems.
4.Machine body structure is made of welded thick-walled square steel tube, with five-sided tempering, to ensure the body never deformation.
5.Using a unique intelligent prediction algorithm, gives full play to drive potential to achieve high speed processing, linear and curve synchronous, the curve is more smooth..
6.Taiwan-made guide rail and ball screw, high precision, long service life, good stability.
7.With break-point and power-off memory function, ensure continuous processing after an accident of tool breaking or power-off.
8.Compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JDPaint/ Wentai, etc..

Samples:

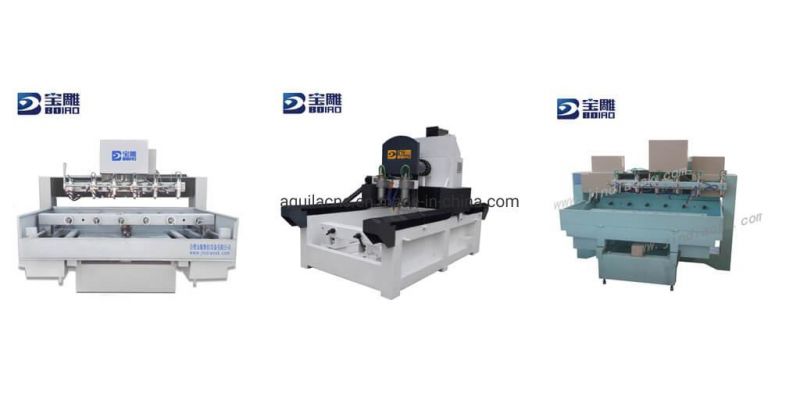

Similar products:
