• Model NO.：B-R-RP1300
• Condition：New
• Color：Customized
• After-sales Service：2 Years
• Working Width：1300mm
• Min Working Length：500mm
• Working Thickness：3-110mm
• Conveyor Speed：6-30m,Min
• Total Motor Power：80.05kw
• Application：Wood Door Cabinet Door Furniture, Picture
• Transport Package：Strong Stretch Film
• Specification：4800KG
• Trademark：SOSN
• Origin：China
• HS Code：846593000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. B-R-RP1300 Condition New Color Customized After-sales Service 2 Years Working Width 1300mm Min Working Length 500mm Working Thickness 3-110mm Conveyor Speed 6-30m/Min Total Motor Power 80.05kw Application Wood Door Cabinet Door Furniture, Picture Transport Package Strong Stretch Film Specification 4800KG Trademark SOSN Origin China HS Code 846593000 Production Capacity 150 Sets Per Month

Product Description

Woodworking Machinery Block Board Solid Wood Wide belt Planer Sanding Sander Machine.
Planer and sander machine is mainly used for solid wood board, panel, finger joined panel, door, flooring etc, with advanced technology, high precision, reasonable structure and easy operation.

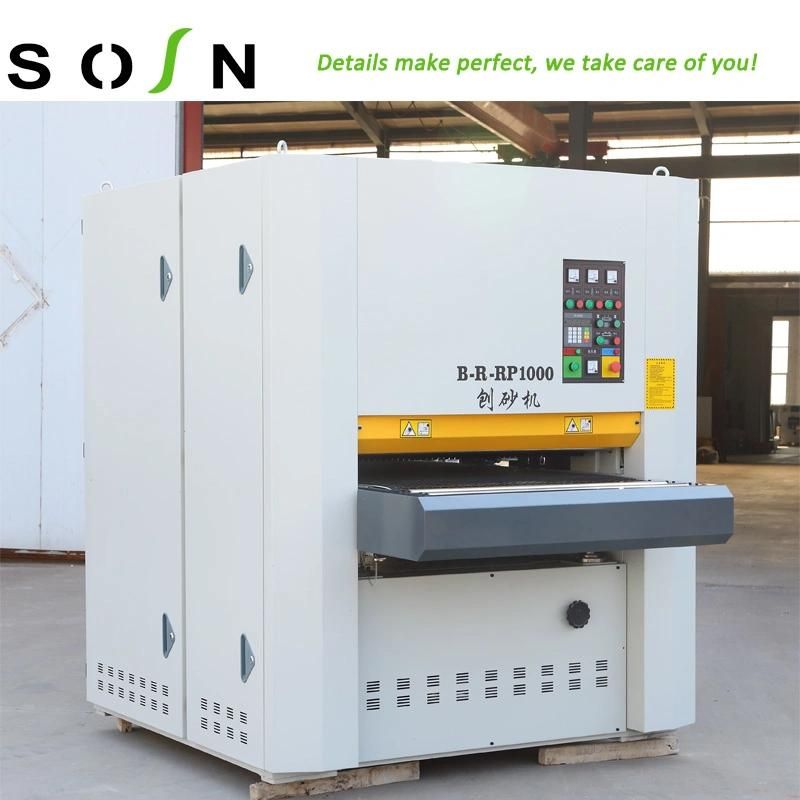

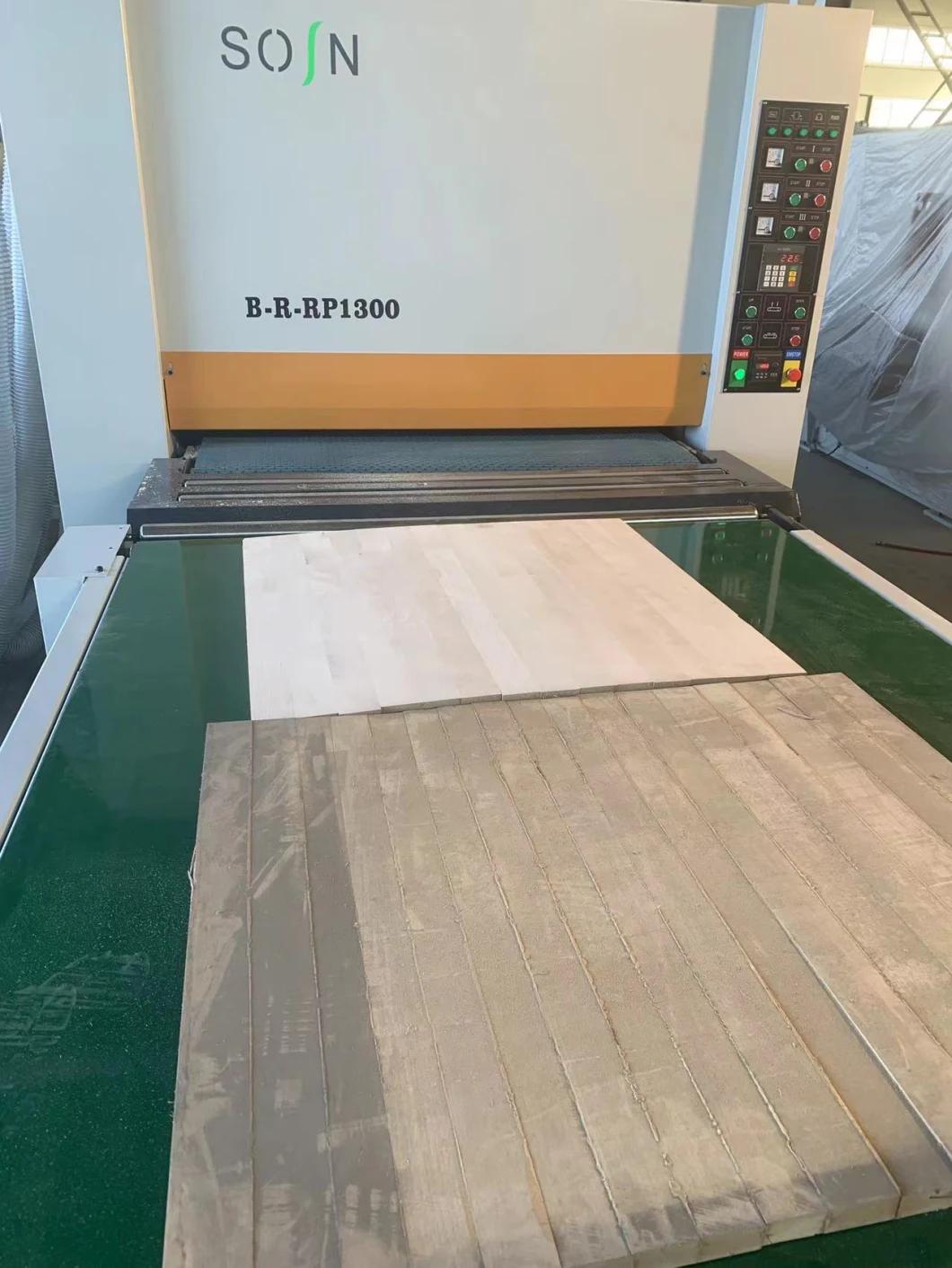

1). Machine picture:

2). Features:--Imported planer roll, will be thick roll and soft roll (or a combination of sand frame), and then after the first planer sand polishing process.
--With floating pressure boots, short sand material available.
--Casting stop device is used to avoid rebounding and hurting the plate during processing.
--Conveyor belt drive adopts variable-frequency helical gear worm reducer, more stable and reliable.

3). Main parameter:

Working  width	1300mm
Min.Working  length	500mm
Working  thickness	3-110mm
Feeding  speed	5-25m/min
Total  motor  power	80.05kw
Motor  for  first  unit	22kw
Motor for second unit	30kw
Motor for third unit	22kw
Feeding motor	5.5kw
Lifting motor	0.55kw
Abrasive belt size	1330*2200mm
Working air pressure	0.6MPa
Volume of dust collection device	12000m3/h
Overall dimensions	3000*2000*2050mm
Net weight	4800kg

We also have 630mm, 1000mm, 1300mm working width planer sanding machine for your choice.

4). Details description:

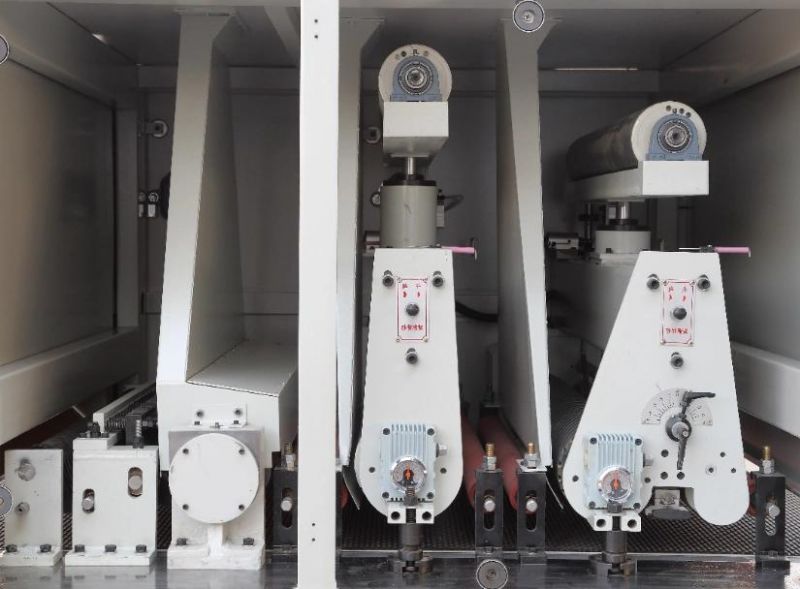

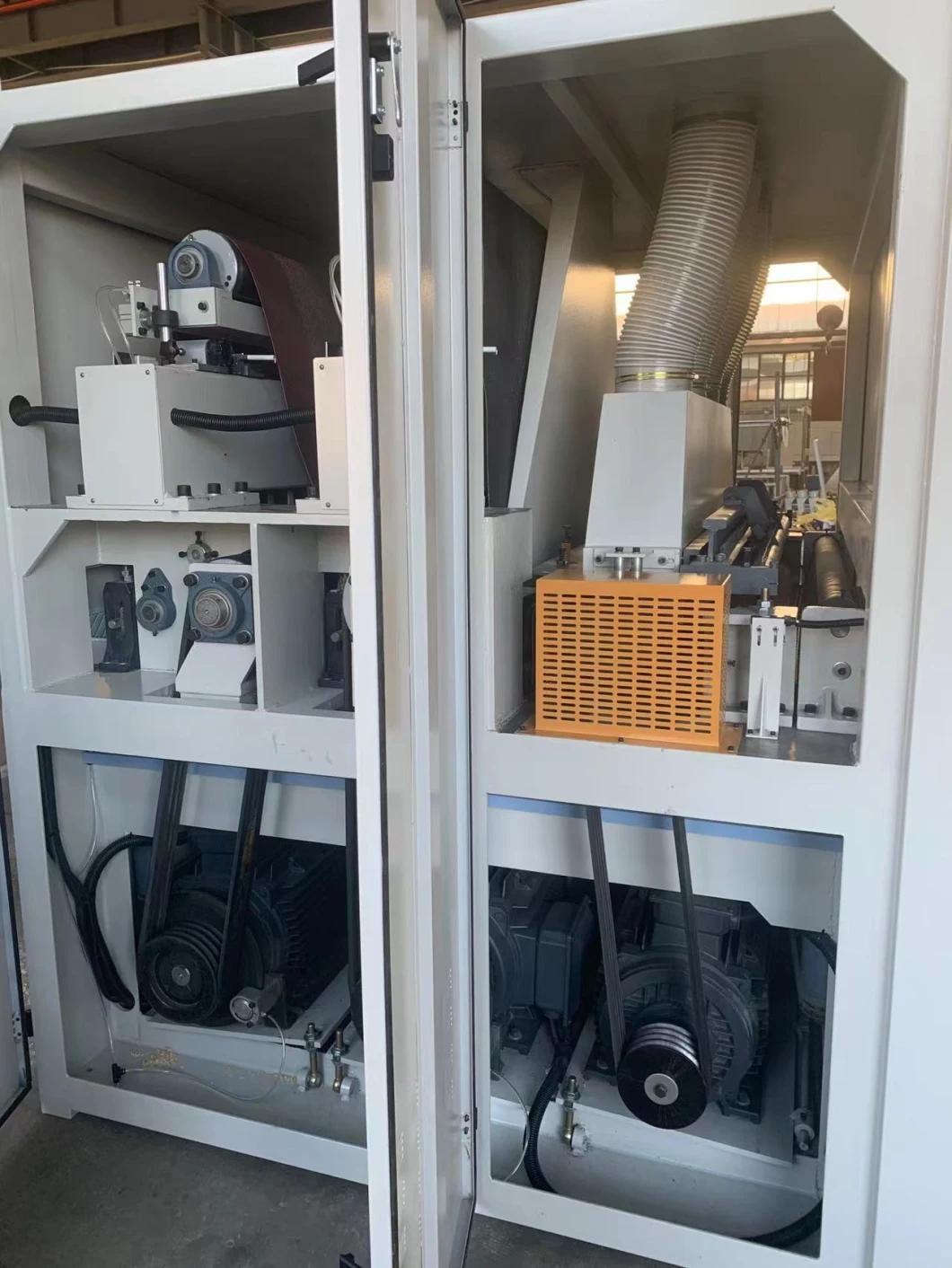

Inside structure of  the sanding machine: one planer roller + one sanding roller + one sanding roller + one polishing pad.

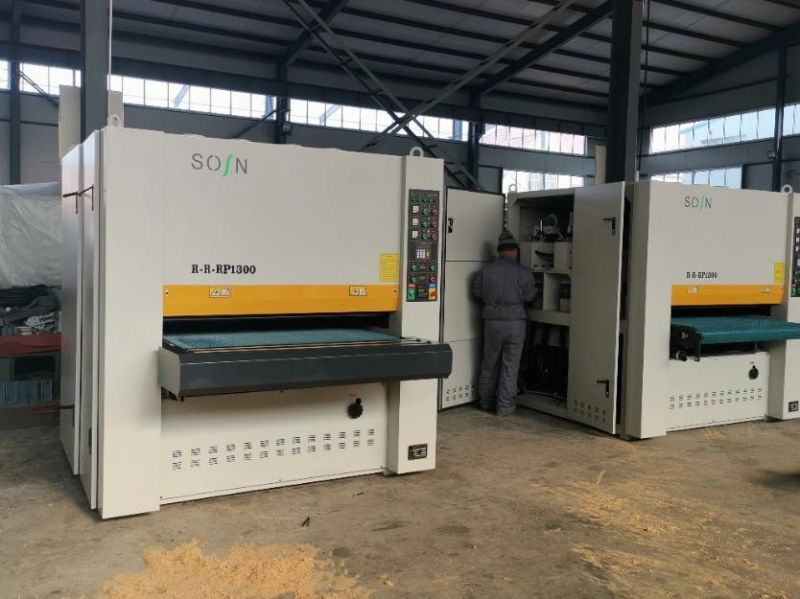

5).Machine at workshop:

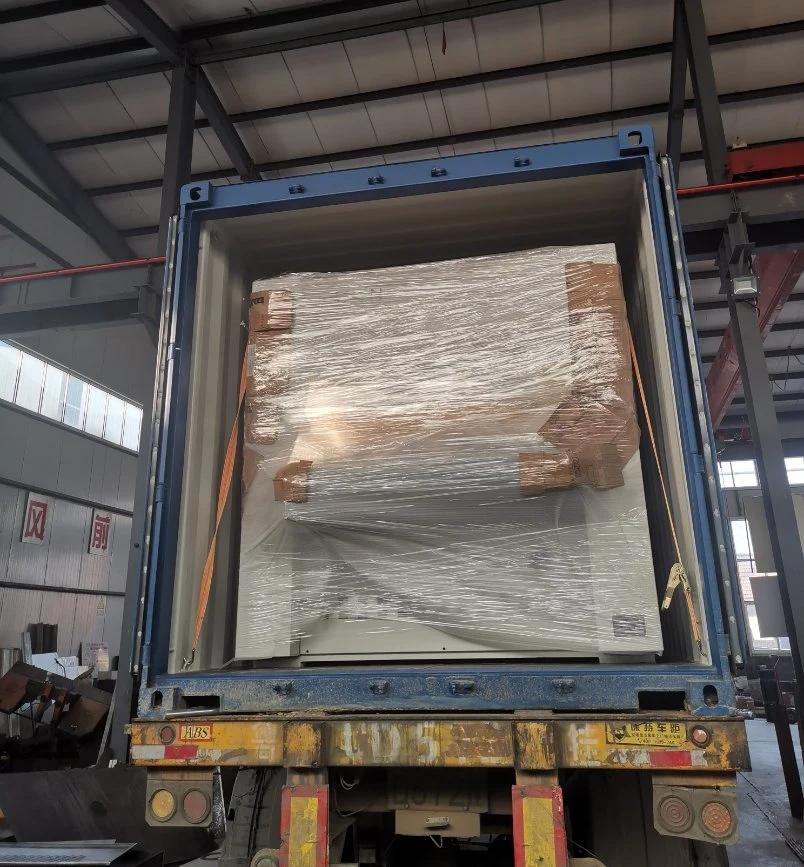

6). Package and delivery:

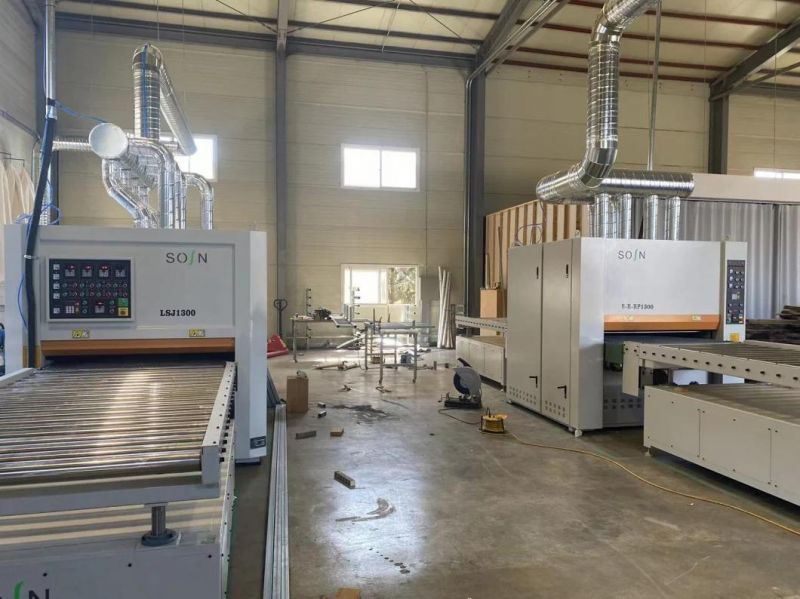

7). Planer sander machine production line in customer's factory:

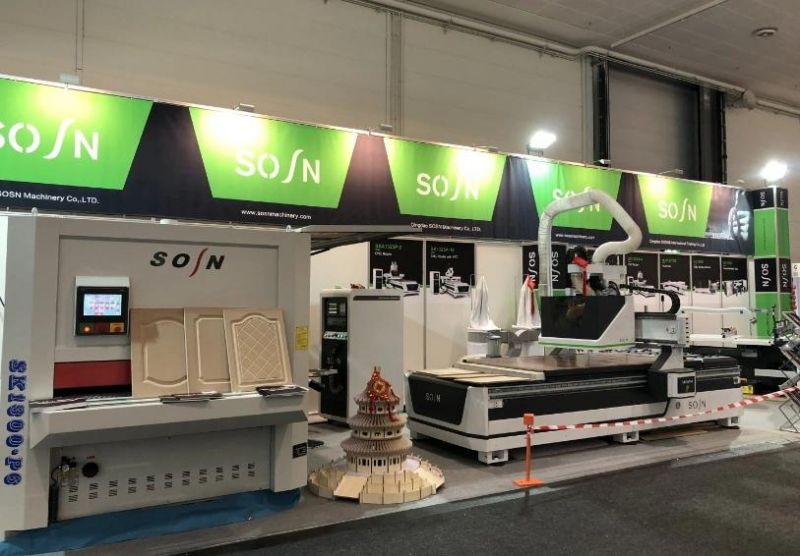

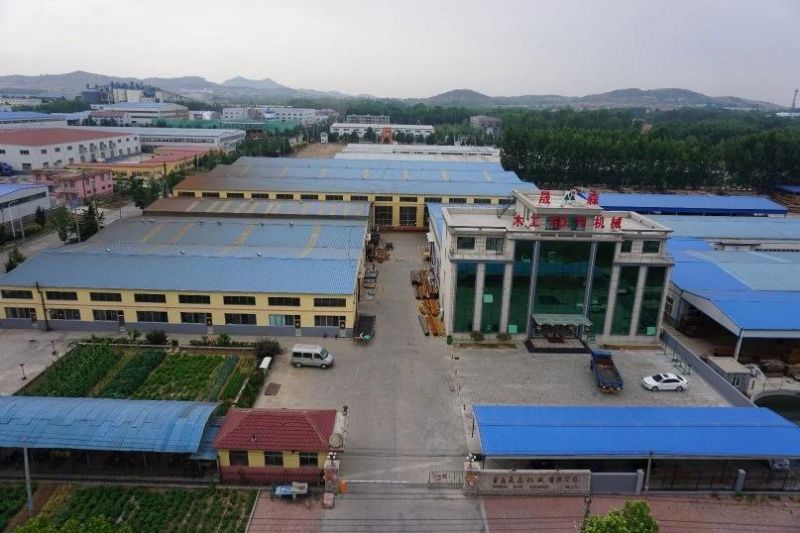

8).Our factory:

With rich professional exprience for woodworking machine, we sincerely welcome your visiting to our factory.

No worry for any installation or operation of this sanding machine, we are here to help you.

Heavy duty frame, Unique internal structure, top-brand spare parts, professional installation workers, in time after sale service, this machine surely can highly improve your working efficiency!

We can have video show for you since maybe now can not come to visit factory.

Please contact me now to start your working upgrading!
Livia ;)
