• Model NO.：1325
• Type：Engraving Router, Woodworking Engraving Machine
• Color：Customized
• Z Working Area：200mm
• Transport Package：Plywood Box
• Specification：1300*2500*200mm
• Trademark：sea eagle
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

Model1325X*Y* Z Working size1300*2500*200mmFeeding heightCan be 200~300mm,following orderIdling Speed18m/minWorking Speed12m/minRepositioning Accuracy<0.01mmSpindle Running Speed0-24000rpmMachine body and working tableSteel structure lathe bed, T-slot table of sectional materialWork holdingBy clamps

Transmission system X HAWIN Square rail,helical rack and pinionY HAWIN Square rail,helical rack and pinionZ HAWIN square rail on Z,Germany Imported double-net ball screw
Spindle
 Power 3.0~3.5 KW water cooling spindle (air cooling is optional)InverterFuling                       Collet diameterØ3.175-Ø12.7mmDrive  systemStepper motor,Leadshine driver 860Control SystemNcstudio card  (DSP is optional)Oiling systemAutomaticWorking VoltageAC380V±30V, 50HZ (22V 50Hz)Command CodeG Code, (*.nc*.mmg, *.u00,etc), *.engrunning environment temperature0 degree ~45 degreerelative humidity30~75%Working SoftwareWindows98/xp/7Compatible SoftwareType3/Artcam/UcancamV9/Castmate/corelerow/Autocad
TYPE  TYPE 2   Perfect Type (1325B-1)






Applicable industry
Panel furniture, cupboards, office furniture, custom furniture.
Features

• ModelSE-1325BX*Y* Z  travel size1250*2500*210mmFeeding height210mmWorking Speed18000m/minRepositioning Accuracy<0.01mmSpindle Running Speed0-24000rpmMax working speed18m/minMax traverse speed 30mm/minMachine body and working tableSteel structure lathe bed, T-slot table of sectional materialWork holdingBy vacuum adsorption with 5.5kw pump

  Transmission systemX HAWIN 25mm Square rail,helical rack and pinionY HAWIN 25mm Square rail,helical rack and pinionZ HAWIN 25mm square rail on Z,Germany Imported double-net ball screw
  Spindle
   Power 6.0 KW  spindle Collet diameterØ3.175-Ø12.7mmDrive  systemServo motor,Control SystemNcstudio 53C or DSP control system Oiling systemAutomaticMachine weight2500kgWorking VoltageAC380V±30V, 50HZ Command CodeG Code, (*.nc*.mmg, *.u00,etc), *.engrunning environment temperature0 degree ~45 degreerelative humidity30~75%Working SoftwareWindows98/xp/7Compatible SoftwareType3/Artcam/UcancamV9/Castmate/corelerow/Autocad




  Produst highlight

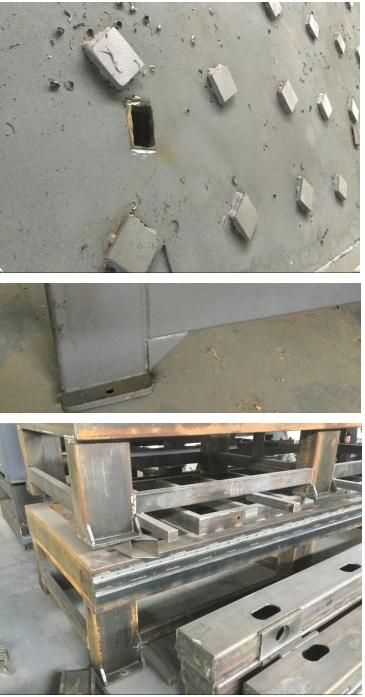

  Bed body is made of real 8~12mm stell plate.whole net weight is 2500kg


  Our bed body is real 8~12mm steel plate, it is very strong!It can be used for 100 years.
  And do you know some factories don't use this thickness steel, thire only is 3~5mm, they fill sand into the bidy,in order to increase weight
