ZICAR M521A 5 spindle 4 side moulder four side wood planer machine
JAYA INTERNATIONAL CO., LTD.- Warranty：1 YEAR
- Type：Four-Side Planer
- Working Depth：8-120mm
- Working Width：25~210mm
- Drivetrain：Feed Drivetrain
- Enter Method：Mechanical
Base Info
- Model NO.：M521A
- Motor Power：30.25kw
- Cutter Shaft：20
- Spindle Speed：8000r,min
- Process Type：Heavy Processing
- Certification：CE, ISO
- After-sales Service：Online support
- Model No.：M521A
- Working Thickness：8-120mm
- Front Working Table Length：1800mm
- Main Shaft Diameter：40mm
- Axial movement：0-20mm
- Main Shaft Revolution：8000r,min
- 1st Lower Shaft：5.5kw
- 1st Upper Shaft：7.5kw
- Left Vertical Shaft：5.5kw
- Right Vertical Shaft：5.5kw
- Feeding Motor：4kw
- Feeding Beam Lifting：0.75kw
- Total Power：30.25kw
- Overall Dimension：3550X1630X1750mm
- Net Weight：3100kg
- Transport Package：Film Package or Plywood Case
- Specification：3550X1630X1750mm
- Trademark：ZICAR
- Origin：China
- HS Code：8465100000
- Production Capacity：100sets,Month
Description
Overview

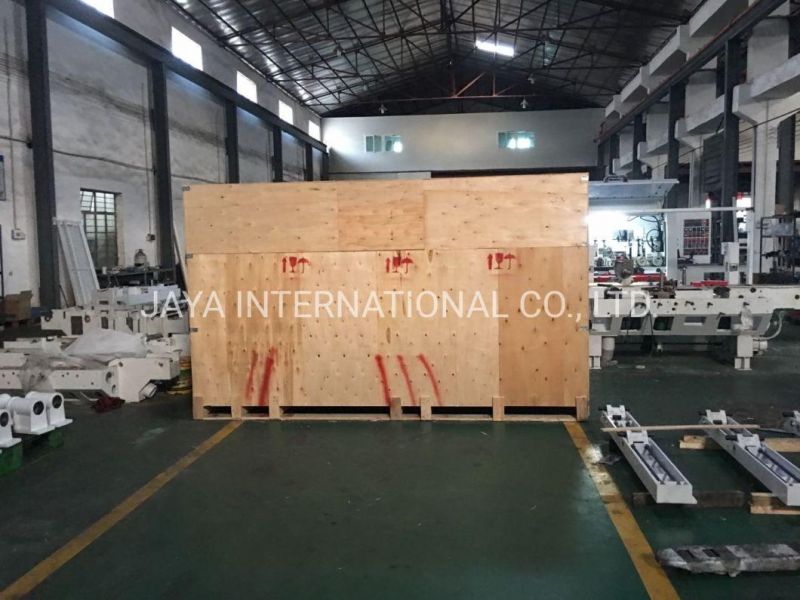

Detailed PhotosPackaging & Shipping
FAQ
1. Our Payment Way?
L/C and T/T or other ways.
2. Delivery Time?
30 days after down payment. We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other, so there is no problem in shipment.
3. Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are not included.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.
4. Our services?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support, provide engineer oversea service.
Product Parameters
Certifications
Company Profile
FAQ1. Our Payment Way?
L/C and T/T or other ways.
2. Delivery Time?
30 days after down payment. We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other, so there is no problem in shipment.
3. Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are not included.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.
4. Our services?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support, provide engineer oversea service.
