Plywood Making Machinery/Wood Veneer Peeling Lathe/8FT Veneer Peeling Machine
Shandong Yuequn Machinery Co., Ltd.- After-sales Service：Offered
- Warranty：3 Years
- Type：Veneer Peeling Machine
- Automatic：Automatic
- Certification：CE, ISO
- Name：8FT Veneer Peeling Machine
Base Info
- Model NO.：YQVH-1
- Max Peeling Length：2700mm
- Max Peeling Diameter：Φ500mm
- Size of Blade：2700-180-16mm
- Thickness of Veneer：0.3-4mm
- Linear Speed of Host Machine：40-80m,Min (Adjustable)
- Diameter of Rollers：125mm
- Power of Double Rollers：11kw*2
- Power of Single Roller：7.5kw*2
- Power of Feed：15kw, Servo Motor
- Cutting Power：1*4kw, Servo Motor
- Auto Knife Setting Motor：1.5kw, Servo Motor
- Auto Knife Height Motor：1.5kw, Servo Motor
- Hydraulic Knife Motor：3kw
- Guide Rail：Taiwan Hiwin Linear Guide
- Transport Package：in Nude
- Specification：5600*2000*1800mm
- Trademark：Yuequn
- Origin：Linyi City, Shandong Province
- HS Code：8465960000
- Production Capacity：100 Sets,Month
Description
8Feet veneer peeling machine
Model
YQVP2600-HP
Max.peeling length
2600mm
Max.cutting diameter
500mm
Thickness range
0.35mm-5mm
Peeling knife
2700*180*16mm
Cutting knife
2700*140*12.7mm
Core diameter of remaining
25-32mm
Diameter of single roller
125mm
Diameter of double roller
125mm
Diameter of guide screw
90mm
Power of Single roller
2*7.5kW
Power of double roller
2*11kW
The knife gap motor
1.5kw(servo motor)
The knife angle motor
1.5kw(servo motor)
Feeding motor
15kW(servo motor)
Clipper motor
4kw (servo motor)
Hydraulic station
7.5kw
Conveyor motor
2.2kW
speed
40M-80m/minute(adjustable)
Weight diameter
9000kgs
Overall dimension
5600*2000*1800mm
China Manufacturer Rotary Plywood Wood 8 Feet Veneer Peeling Machine Lath
Company Information

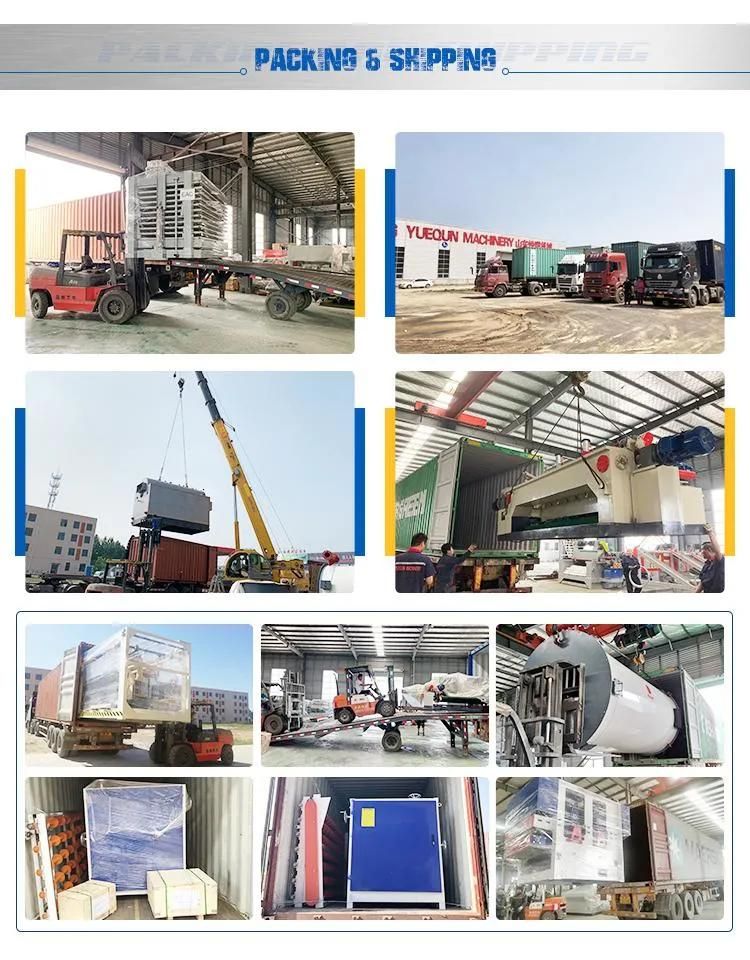

Packaging & Shipping
Why Choose Us:
Pre-sale service
1) Provide the free consultation of equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
Service during the sales
1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service
1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
FAQ
Q1:Can you customize products for clients?
A1: Yes We can customize and produce woodworking machines according to the customer's requirements or drawings.
Q2:What about your products quality?
A2:We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.
Q3:How can we trust your factory?
A3:We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.
Q4:Why does the price often change?
A4:The price depends on the latest prices of the raw materials.
Q5:What about the contract signing?
A5: If you're satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we'll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.
Q6: How about delivery?
A: when the product is ready, it can be delivered to you after your full payment. We}ll provide technical guidance.
