• Model NO.：LSA6090
• Control System：Mach3 (USB Port)
• Drive Type：Servo
• Table Type：Aluminum Profile T Slot Clamping
• Spindle Power：2.2kw Water Cooling(0-24000rpm)
• Gross Weight：350kg
• Transport Package：Wooden Boxes
• Specification：1.35*1.1*1.3m
• Trademark：Lansen
• Origin：China
• HS Code：8465990000

Basic Info.

Model NO. LSA6090 Control System Mach3 (USB Port) Drive Type Servo Table Type Aluminum Profile T Slot Clamping Spindle Power 2.2kw Water Cooling(0-24000rpm) Gross Weight 350kg Transport Package Wooden Boxes Specification 1.35*1.1*1.3m Trademark Lansen Origin China HS Code 8465990000

Product Description

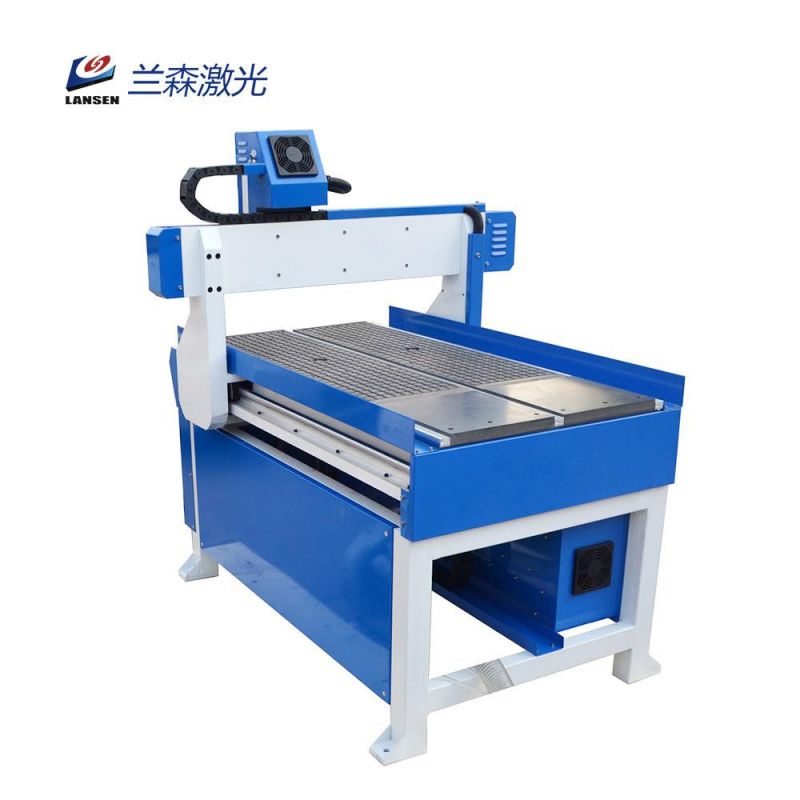

6090 small advertising wood CNC router cutting machine YASKAWA 2.2kw
Features:

1. More reasonable equipment structure: gantry movement way.
2. Mach3 control system; DSP Controllrt,USB port optional
3. Ballscrew Transmit way: High accuracy.
4. Linear Guide Rail: Guide rails adopts linear guide rails.
5. Aluminium T slot fix way.

Parameters:

Model	LSA6090
Spindle power	1.5kw/2.2Kw/3KW
X,Y Worksize	600x900mm
Z-axis worksize	150mm
Control system	Mach3/DSP offline control
Cooling way	Water cooling
Spindle rotating speed	0-24000rpm
voltage	220v/50hz/(110V/60Hz optional)
Machine power	450w
Command	G code
Max Speed	12m/min
Working speed	3.5m/min
Motor	Stepper
Rail guide	Linear Guide rail
Compatible Software	Type 3 / Artcam / Casmate / Proe / UG / Artgrave etc.
Transmit way	Ballscrew transmit way
Holding way	Clamp
Resolution	≤±0.05mm
Repeat precision	0.005mm
Dustproof part	dust shield
Cutter diameter	3.175-6mm (12mm)
Equipment size	1300mm*900mm*1200mm (L*W*H)
Package size	1500mmx1100mmx1600mm(L*W*H)
Package	Wooden box
N.W	250kgs
G.W	325kgs

Applications:

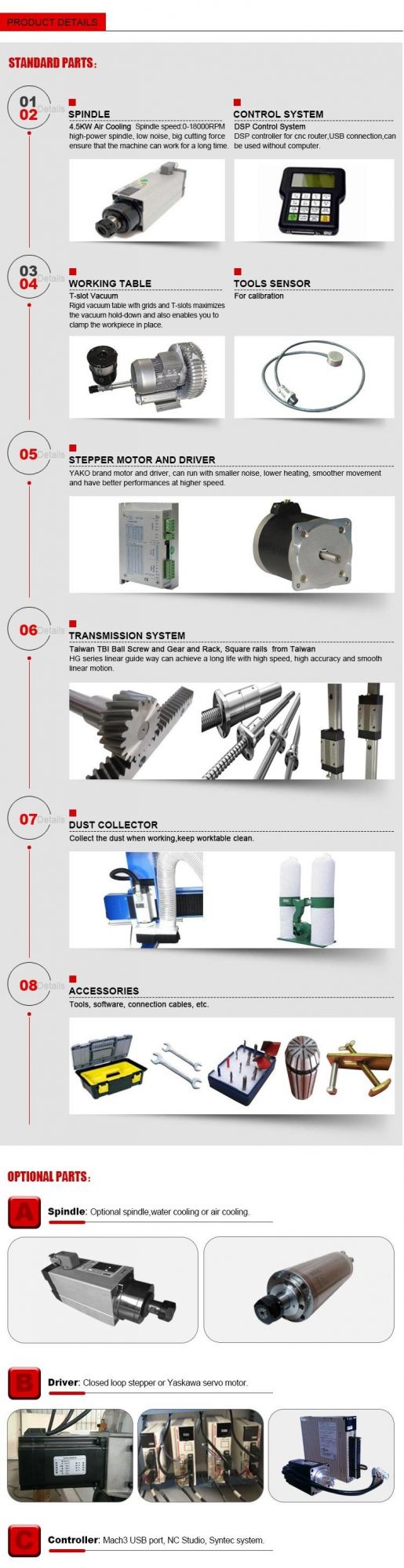

Machine details:


Warranty:
1. 2 year for the whole machine.
2. 6 months for the Plasma generator.
3. Consumable parts are beyond the warranty lines.
4. etailed manual and video to guide the uses how to use the machine and maintenance supplied.
5. Technical support by website and phone.
6. If you meet the problems, we can solve it with pictures, videos ect .

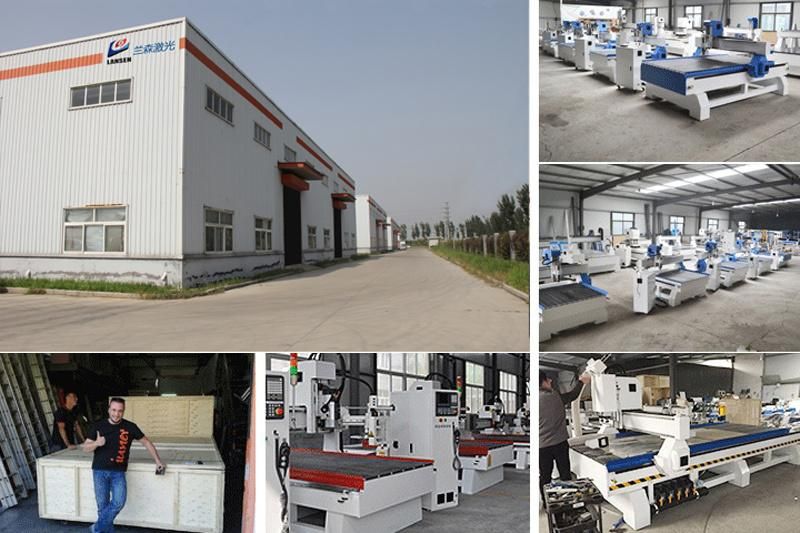

About us:







FAQ:
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
