• Model NO.：WZLH420
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Engineer Available
• Capacity(T/H)：0.8-1.2
• Main Power(Kw)：90
• Pellet Size(mm)：6-8
• Power of Screw Feeder(Kw)：3
• Power of Force Feeder(Kw)：1.5
• Transport Package：Iron Pallet and Soft Guard
• Specification：CE, ISO9001, SGS
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8479300000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Engineer Available Capacity(T/H) 0.8-1.2 Main Power(Kw) 90 Pellet Size(mm) 6-8 Power of Screw Feeder(Kw) 3 Power of Force Feeder(Kw) 1.5 Transport Package Iron Pallet and Soft Guard Specification CE, ISO9001, SGS Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

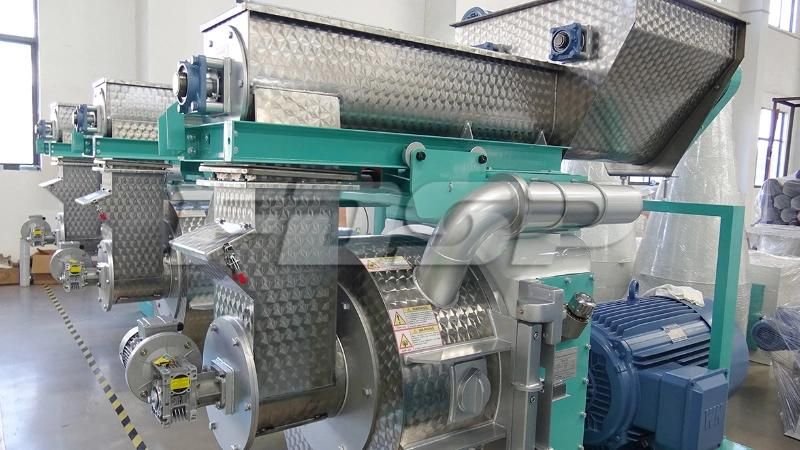

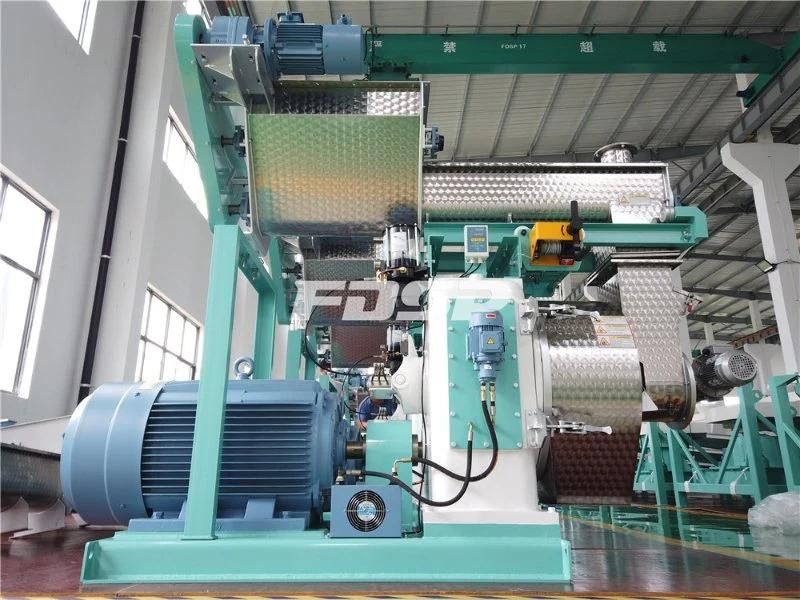

Simple Operation Biomass Wood Pellet Mill Sawdust Pellet Making MachineIntroduction
1.Biomass wood pellet machine is a kind of machine which could process sawdust,straw dust,rice husk,peanut shell,tree branches etc biomass through pre-treatment and process.Those biomass material will be solidified into high-density pellet fuel.

2.Advantages of wood pellet machine:
a.  Biomass fuel is a kind of solid pellet fuel made up from corn straw,wheat straw,
rice straw,peanut shell,rice husk,tree branches,leaves,sawdust,tree bark etc solid waste.These materials are processed with crushing,pressing and molding to small rod-like solid  granular fuel.The fuel is extruded by rollers and ring die under common
temperature.The density of  the fuel is about 0.9-1.6g/m³.
b. The technological process:Materials collection-----Crushing-----Drying-----Molding----Packing
c. The application of biomass fuel:A new kind of bio-energy,which could talk place of wood,coal,gas etc and widely used in heating, life
stoves,industrial boilers,biomass power plant etc.

3.Classification:Flat die wood pellet machine,horizontal ring die wood pellet machine
and vertical ring die wood pellet machine.Our product is horizontal ring die pelletizer,which have higher output than flat die machine,compared with vertical ring die pelletizer,our product is better choice with the stable performance for long time and easy maintenance.Moreover,our finished pellets are compact so they can be applied for industrial boiler.


Features

Item	Wood biomass pellet machine
Pellet Mill Type	- With Standard Feeder - With Anti-broken Feeder
Technical Parameters	- Capacity: 0.8-1.2(T/H) - Size: 2800*1150*2100(mm) - Power:90KW - Inner diameter of die: 420(mm) - Pellet size: 6ø, 8ø, 10ø(mm) - Net weight: 4000(kg)
Main Features	- CE & ISO & SGS certification - Siemens motor, imported bearing - High precision gear-driven transmission system - One ring die and two rollers system
Optional Parts	- Screw feeder with anti-broken - Conditioner: To adjust the moisture of raw material.  - Auto cooling system for gear-box(large capacity)
Packing Mode	Iron pallet with stretched film, etc
MOQ	1 set
Payment	L/C, T/T, Western Union, Money Gram...
Warranty	12 months

Main Technical Parameter

Model	WZLH420	WZLH520	WZLH680	WZLH780
Capacity(T/H)	0.8-1.2	1.5-1.8	2-2.5	2.5-3.5
Main motor power(kw)	75/90	110/132	160/185	200/220
Feeder power(kw)	2.2	3	4	4
Ring die dia(mm)	420	520	680	780
Pellets dia(mm)	6-8	6-8	6-8	6-8

FAQ
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghaiairport directly.All our clients, from home or abroad, are warmly welcome to visit us!

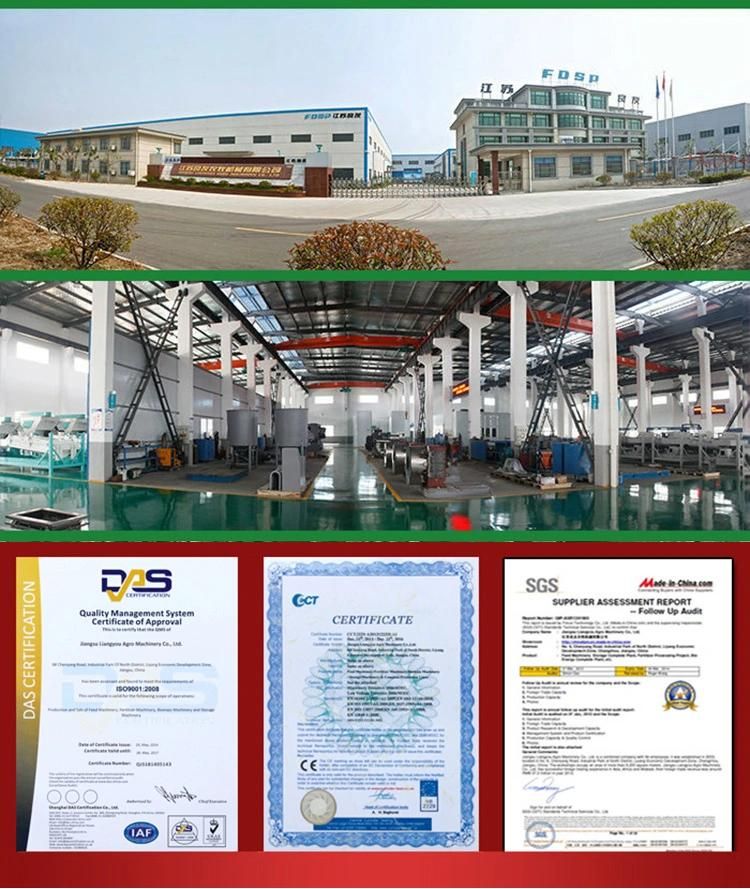

Why Choose Us?
Our products have passed the SGS,ISO9001:2008,CE certifications.Moreover,we own several patents,such as "utility model patents certificate"and "hightech products
certificate",etc.Our goods exported to many countries and won the good reputation by the high quality and superior service.
