Hot Sale Plywood Core Veneer Jointing Machine
Linyi Sin San Lin Smart Machinery Co., Ltd.- Condition：New
- Certification：ISO, CE
- Power Type：Electrical
- Voltage：380V,415V
- PLC：Delta(Taiwan)
- Motor：Siemens Servo Motor
Base Info
- Model NO.：PBJ-4X8
- Speed：0-35m,Minute(Adjustable)
- Rotary Actuator：Festo(Germany)
- Veneer Thickness：1.0-3.6mm
- Clutch：Chain Tail(Taiwan)
- Transport Package：Nude Packing
- Specification：12000*2600*2500mm
- Trademark：METRO
- Origin：Shandong, China
- HS Code：8465990000
- Production Capacity：300set,Year
Description
5800Kgs

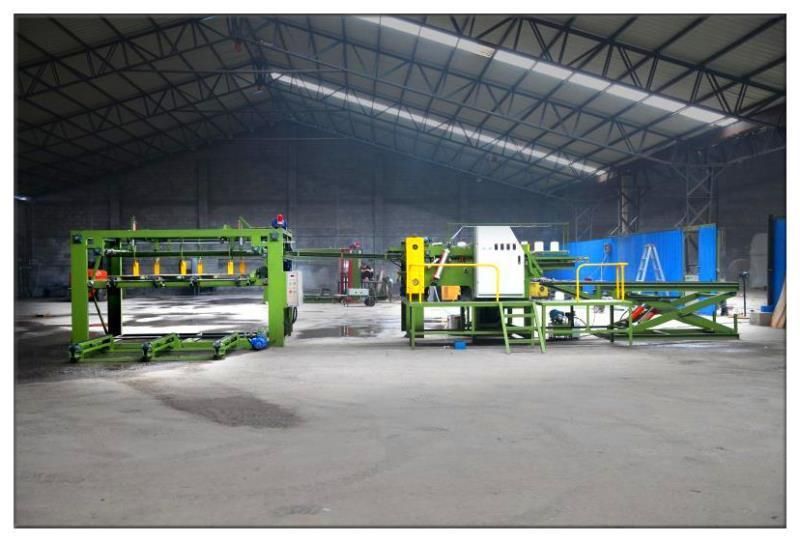

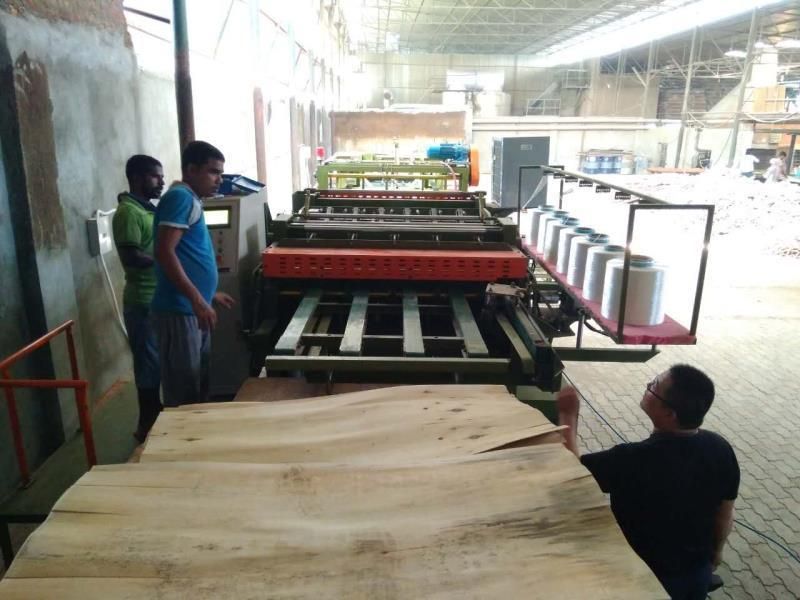

More Photos:
Advantage:
1.One operator, no overlap and seamless, no break;
2. Save 70% of core finishing
3.Save 80% assembling workers
4.Save 50% puttying workers
Working principle:
core veneer (1.2-3.6mm thickness) after dying may have different length and thickness, and the shapes may get irregular. This machine can detect the width, thickness, cavities of the panels, and have them rimmed, glued, spliced, cut to length and stacked automatically. with this machine, customized board of different sizes an be spliced.
