• Model NO.：MJ6230B
• Certification：ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Model No.：MJ6230B
• Max.incising thickness：48mm
• Total Power：7.5Kw
• Max.incising length：3000mm
• Main blade motor Power：5.5Kw
• Outer diameter of secondary blade：Φ120mm
• Revolving speed of main blade：4700rpm
• Inner diameter of secondary blade：Φ20mm
• Air pressure：0.6MPa
• Returning speed：15m,min
• Cutting speed：15m,min
• Revolving speed of secondary blade：6700rpm
• Net weight：about1700Kg
• Size：1000X4544X1350mm
• Transport Package：Wrapping Film
• Specification：1000x4544x1350mm
• Trademark：ZICAR
• Origin：China
• HS Code：8465910000
• Production Capacity：100sets,Month

Basic Info.

Model NO. MJ6230B Certification ISO Customized Customized Condition New Color Customized Model No. MJ6230B Max.incising thickness 48mm Total Power 7.5Kw Max.incising length 3000mm Main blade motor Power 5.5Kw Outer diameter of secondary blade Φ120mm Revolving speed of main blade 4700rpm Inner diameter of secondary blade Φ20mm Air pressure 0.6MPa Returning speed 15m/min Cutting speed 15m/min Revolving speed of secondary blade 6700rpm Net weight about1700Kg Size 1000X4544X1350mm Transport Package Wrapping Film Specification 1000x4544x1350mm Trademark ZICAR Origin China HS Code 8465910000 Production Capacity 100sets/Month

Product Description

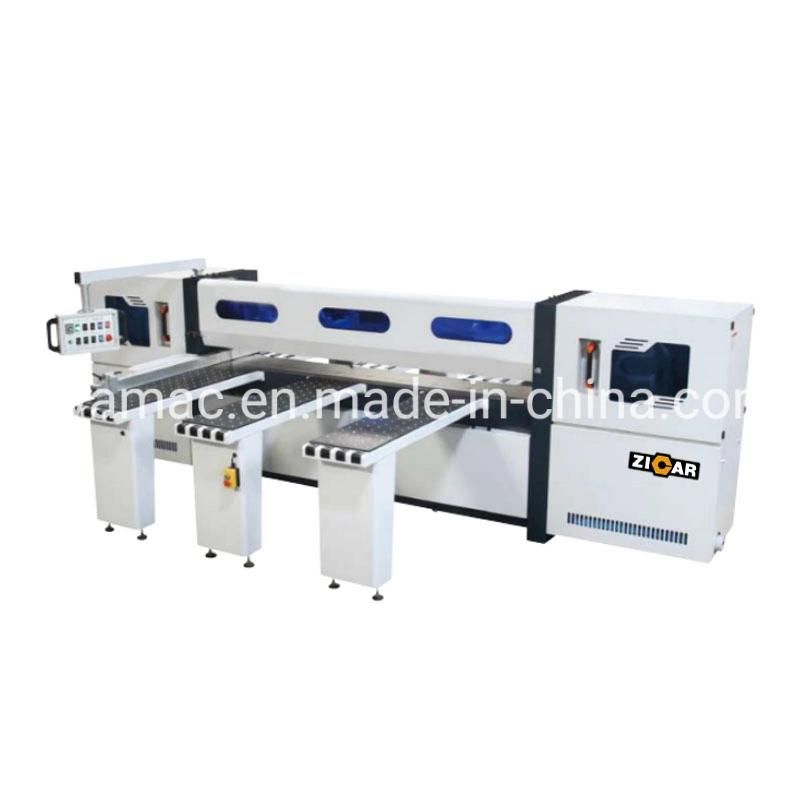

ZICAR Inquiry Hot saw machines sliding table and table saw panel MJ6230B

Features
1.German body technology is used to drive the saw body of the machine body, the perfect combination of reducer control and rack and pinion transmission, the cutting accuracy is within ± 0.15, and the automatic positioning sawing stroke can be realized according to different sawing widths
2.Special design which increasing the cutting speed, reducing the load of the saw blade is more durable and stable.
3.Taiwan Yonghong PLC, Schneider contactors and wiring, high quality, stable and durable.
4.The steel belt square rail is hardened and hard to deform, high efficiency and dustproof, stable operation and higher precision
5.Feeding protection, overtravel protection, emergency stop protection, limit limit, air pressure alarm, safety door guard, fueling system alarm, etc.
Product Parameters


Model	ZICAR brand MJ6230B
Max.incising length	3000mm
Max.incising thickness	48mm
Main blade motor Power	5.5Kw
Outer diameter of main blade	Φ300mm
Inner diameter of main blade	Φ30mm
Revolving speed of main blade	4700rpm
Outer diameter of secondary blade	Φ120mm
Inner diameter of secondary blade	Φ20mm
Revolving speed of secondary blade	6700rpm
Cutting speed	15m/min
Returning speed	15m/min
Air pressure	0.6Mpa
Machine outline size	1000x4544x1350mm
Total Power	7.5Kw
Net weight	about1700Kg

Show Details



Product packaging

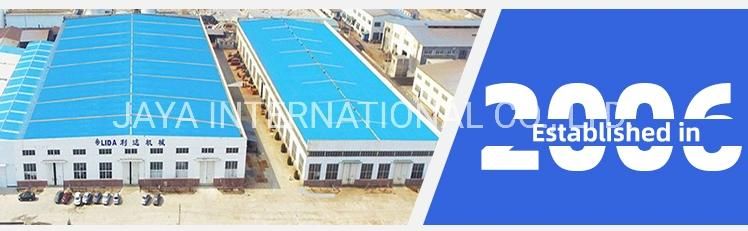

Our Company



JAYA INTERNATIONAL, has been dealing in woodworking machinery for more than 27 years, started from Jaya Trading at the beginning of 1992. In 2008, we made great investment andbecame the holding company of YanTai Lida woodworking machinery Co.,ltd, which has over59 years' history of manufacturing all kinds of China- ·made woodworking machinery since 1960, especially for the MQ & ML series combined woodworking machine, it has the extremelyimportant guiding function in the circle. During the past few years, with the development of thecompany and the staff, we also expanded our production line to related fields like general machinery, panel furniture making machinery ,CNC router, Laser machinery, Plywood makingmachine and related hardware, ect.

Thanks for our top quality, excellent service and competitive price, thanks for all the supportfrom our customers, now our machine has got great reputation as the brand ZICAR for woodworking machinery, MATIC for general machinery , HARRIER for CNC/ laser Machinery,PLYTEC for plywood making machine all over the world with the following advantages:

* More than 300 employees, 56 technicians, covering an area of 35000 square meters.
* ISO9001:2000, CE certified, 15 national patents.
* One-stop service, meet needs of the customers from individuals to international companies.
* OEM service accepted.
* Separate trading office: Jaya Trading with 35 experienced sales offering full scale service.
* lnquiries are typically answered within 8 hours.
* After sale Service: experienced and knowledgeable team of technical support
* Annual turnover: USD 20 million

We trust that our experience and intimate knowledge of this line will entitle us more confidence to serve our customers.

The more you know us, the more you trust us!


Customer Visit





Exhibition




F&A

1. Our Payment Way?
L/C and T/T or other ways.

2. Delivery Time?
30 days after down payment. We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other, so there is no problem in shipment.

3. Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are not included.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.

4. Our services?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support, provide engineer oversea service.
