• Model NO.：XS200
• Control Method：Closed-Loop Control
• Numerical Control：CNC
• Processing Precision：0.01~0.02(mm)
• Performance Classification：MID-Range CNC Machine Tools
• Application：Wood, Bamboo, Organic Board, Color Plates
• Configuration：9kw Air Cooling Spindle + Circular Tool Change
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：Working Area: 1300*2500*200mm
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

BasicX/Y/Z Axis Working Area1300*2500*300mmMachine Size2700*2100*2000mmTable StructureDouble vacuum chamber absorption tableBody StructureHeavy-duty thicken steel structure w/ temperingMainControl SystemTaiwan Syntec 6MB control systemDrive SystemJapan Yaskawa servo motorSpindle Motor Power9KW ATC air cooling spindle; 0 ~ 24000 rpm/min






OthersTool MagazineCarousel, 8pcsLubrication SystemAutomaticTransmissionXY axis rack and pinion PMI, Z axis ball screw TBIInverterZoncn/Delta 11KWTool sensorMARSLimit switchJapan OmronVacuum Pump1*7.5KW water vacuum pumpCableMARS cable, anti-static, anti-interference, bending resistanceMax Travelling Speed50m/minMax Processing Speed30m/minWorking Accuracy±0.02mmRe-positioning Accuracy±0.05mmDictate FormatG-Code / HPGLWorking VoltageAC380V/ 3PH/ 50HZSupport SoftwareProfessional cutting optimization software(JiFusen/Yunxi/Tomder/Haisense)

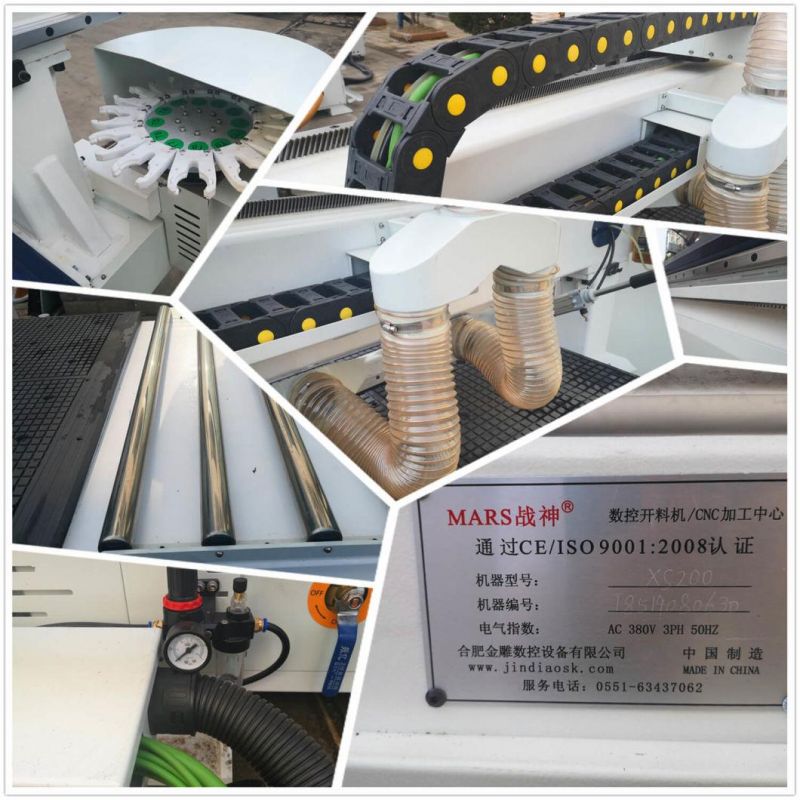

Accessories:



Performance Features:

1	Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver
2	Carousel type tool magazines support automatic tool changer, improve processing efficiency
3	9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics
4	Machine body structure is made of welded thick-walled square steel tube, with five-sided tempering, to ensure the body never deformation
6	Taiwan-made guide rail and ball screw, high precision, long service life, good stability
7	Taiwan Syntec control system, easy to operation,fully support automatic production
9	Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area

Samples:



Similar products:
