Hot Sale 300*1500mm CNC Wood Lathe Turning Machine for Wood Stair Railing
Jinan Upgoal Mechanical Equipment Co., Ltd.- Type：Single-Axis Automatic Lathe
- Voltage：AC380V Three Phases or AC220V,Single Phase
Base Info
- Model NO.：UG-1530WL
- Tool Holder：Single-tool Holder CNC Lathe
- Automatic Grade：Semiautomatic
- Precision：High Precision
- Setting Mode：Floor-type
- Controlling Mode：CNC
- Power Source：Hydraulic Pressure
- Processing Accessory：Centre CNC Lathe
- Certification：CE, ISO
- After-sales Service：24 Hours Online Service
- Working Areamaximum Processing Length：1500mm
- Maximum Turning Diameter：Maximum Turning Diameter 300mm
- Structure：Single Axis Two Blades
- Transmission：Lead Ball Screw & Helical Rack Pinion
- Guide Rail：Linear Square Guide Rail, Hiwin, Taiwan, Diameter
- Main Motor Power：4kw Three Phases Asynchronous Motor
- Control System：Gxk 1000ta Controller with Handhweel
- Material Clamping Method：Air Cylinder Clamping
- Rotate Top & Tailshaft：Rotate Top Mohs # 5 & # 70 Tailshaft
- Compatible File：,Dxf
- Tools Calibration：Automatic
- Lubrication：Semi Automatic
- Oil-Water Separator：with
- Transport Package：Plywood Case
- Specification：3200*1100*1600mm, 1600kgs
- Trademark：UPGOAL
- Origin：Jinan City, Shandong Province, China
- HS Code：84659900
- Production Capacity：50 Sets,Month
- Package size per unit product：302.00cm * 142.00cm * 146.00cm
- Gross weight per unit product：1600.000kg
Description

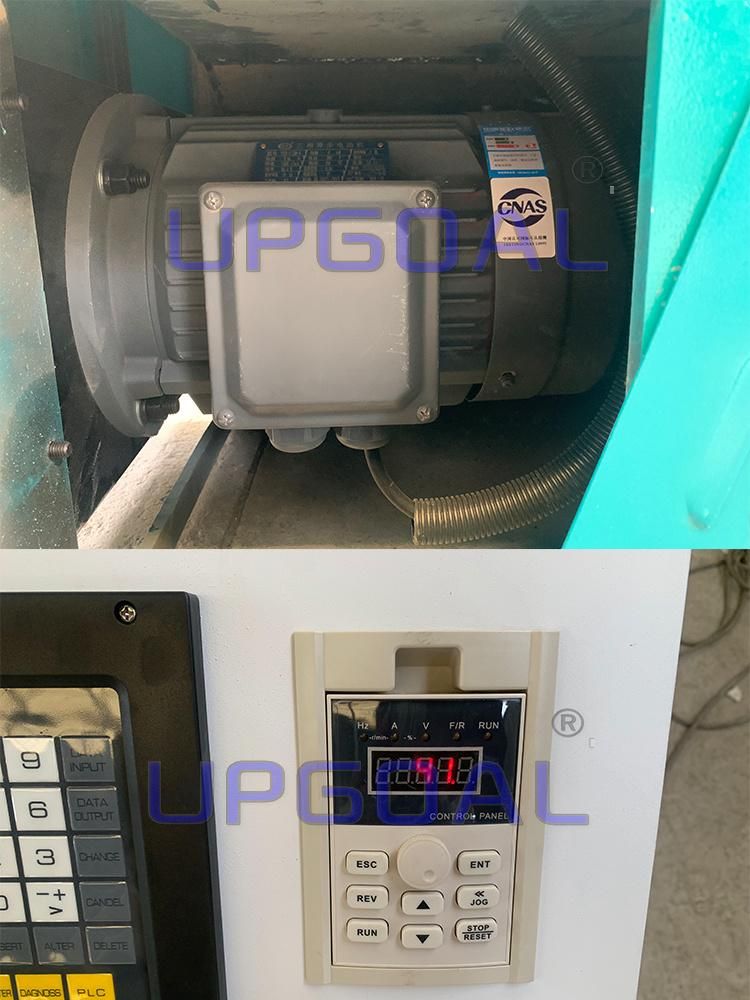

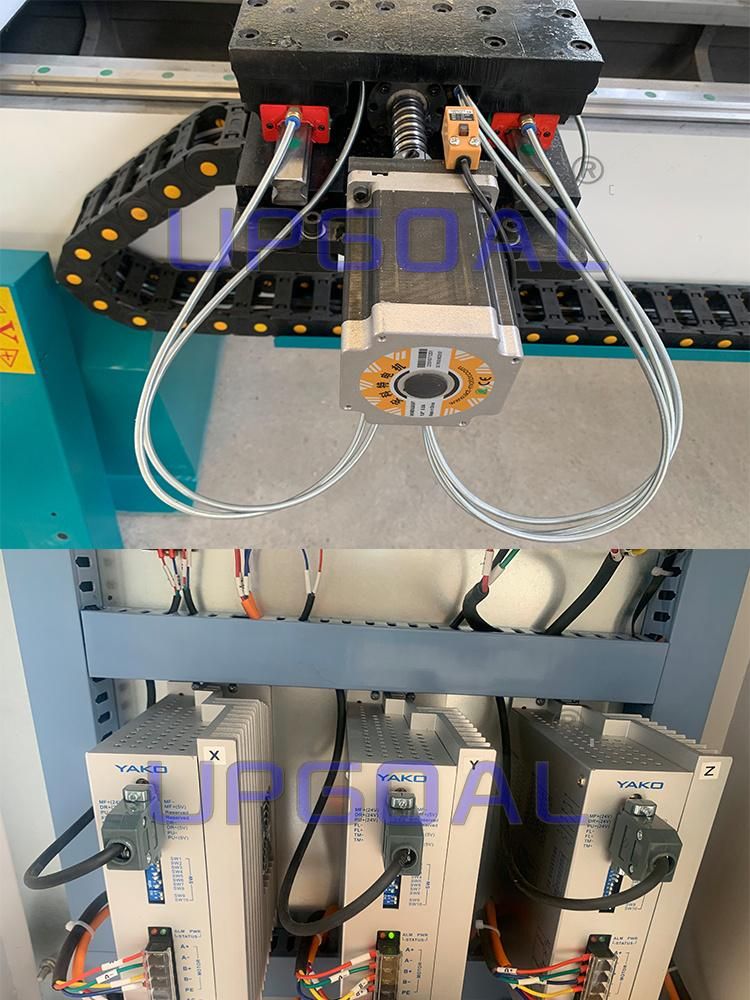

The maxin motor adorpting 4.0kw three phases asynchronous motor and XYZ-axis with famous ACT 86BYGH450B stepper motor ,and YAKO 2D 811 stepper driver, high precision, fast speed and more stable.
Air cooled electronic control cabinet, lowering the temperature of control cabinet effectively, long time all electronic component life time.
With large diameter proetction sheath, adoviding wood shading during processing, and has the air cylinder clamping materials at the back tailst
Technical Parameters
| Maximum processing length | 1500mm |
| Maximum turning diameter | 300mm |
| Structure | Single axis two blades |
| Material | Heavy duty cast iron machine bed |
| Air pressure | 0.6-0.8Mpa |
| Maximum processing speed | 2000mm/min |
| Minimum processing unit | 0.001mm |

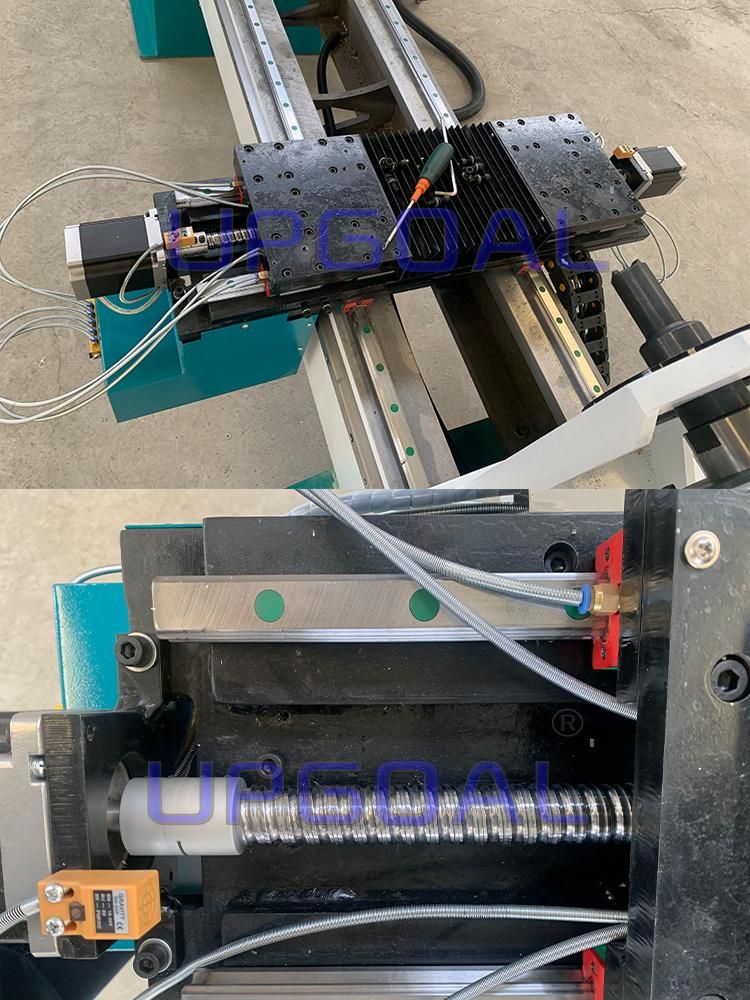

| Transmission | X, Z-axis : lead ball screw transmission diameter 25mm, Y-axis: helical rack and pinion |

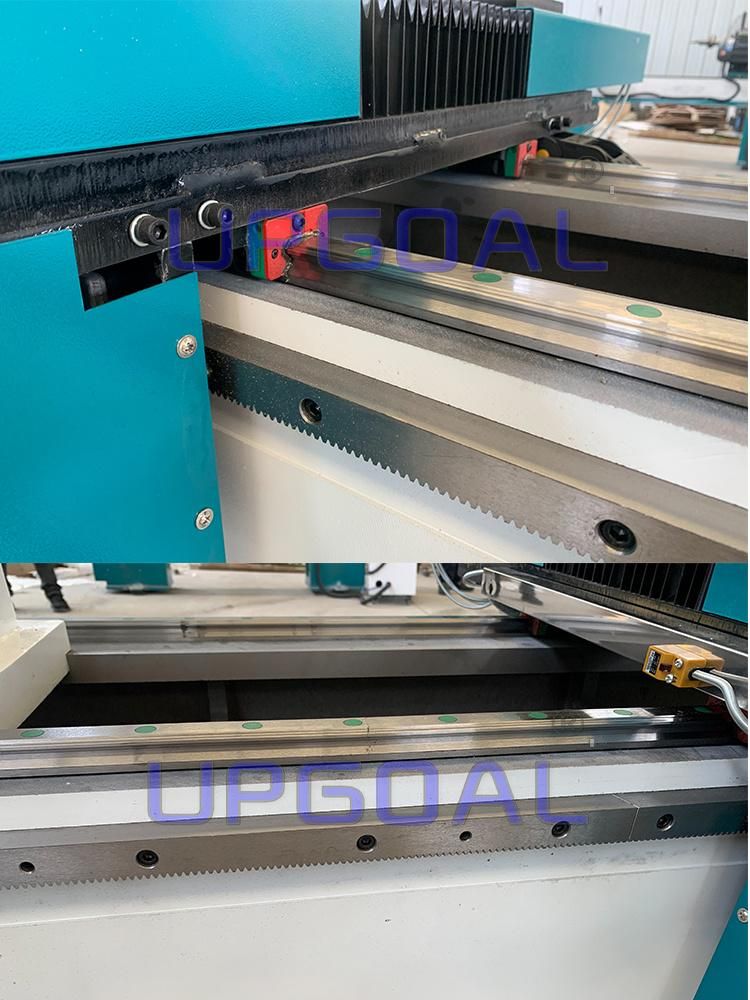

| Guide rail | Linear square guide rail, Hiwin, Taiwan, diameter 25mm |
| Spindle turning speed | 0-2800rpm |
| Main motor power | 4kw, three-phase asynchronous motor |
| Control system | GXK 1000TA controller with handhweel |
| Motor | Stepper motor,86BYGH450B, 1.8°, 5.0A, act-motor |
| Driver | Stepper driver, Yako, 2D811 |
| Inverter | BEST, China, install the adjusting panel on the control cabinet, can do 0-2800rpm adjusting at random |
| Drawing Software | AutoCAD |
| Hand controller recognize file | *.dxf |

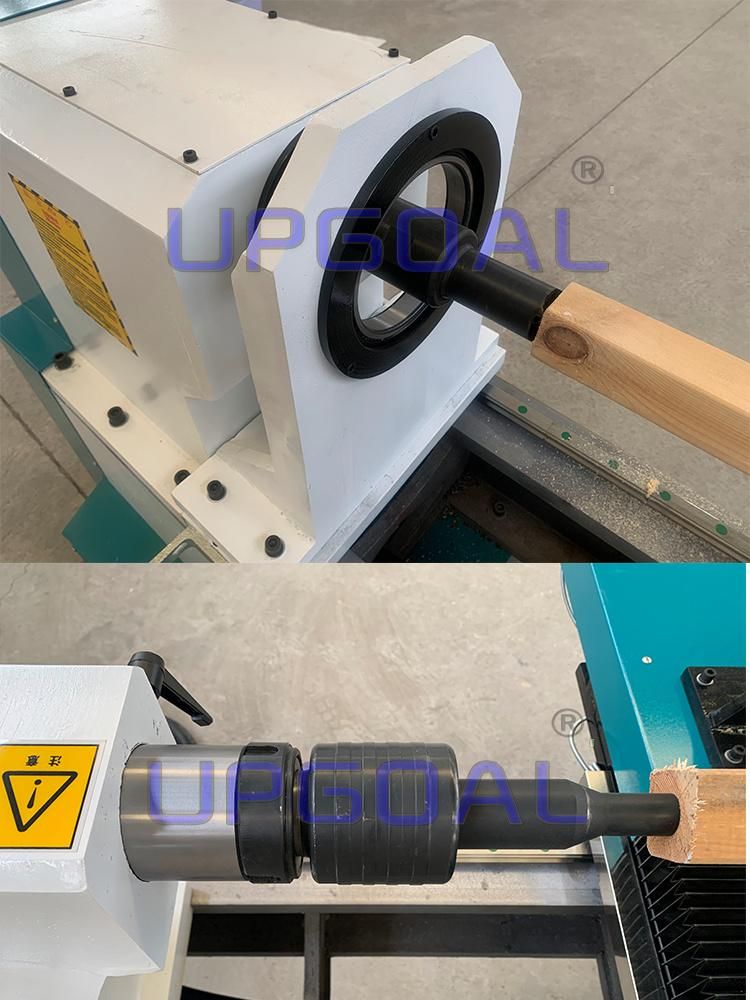

| Rotate top & Tailshaft | Rotate top Mohs # 5 & # 70 Tailshaft |

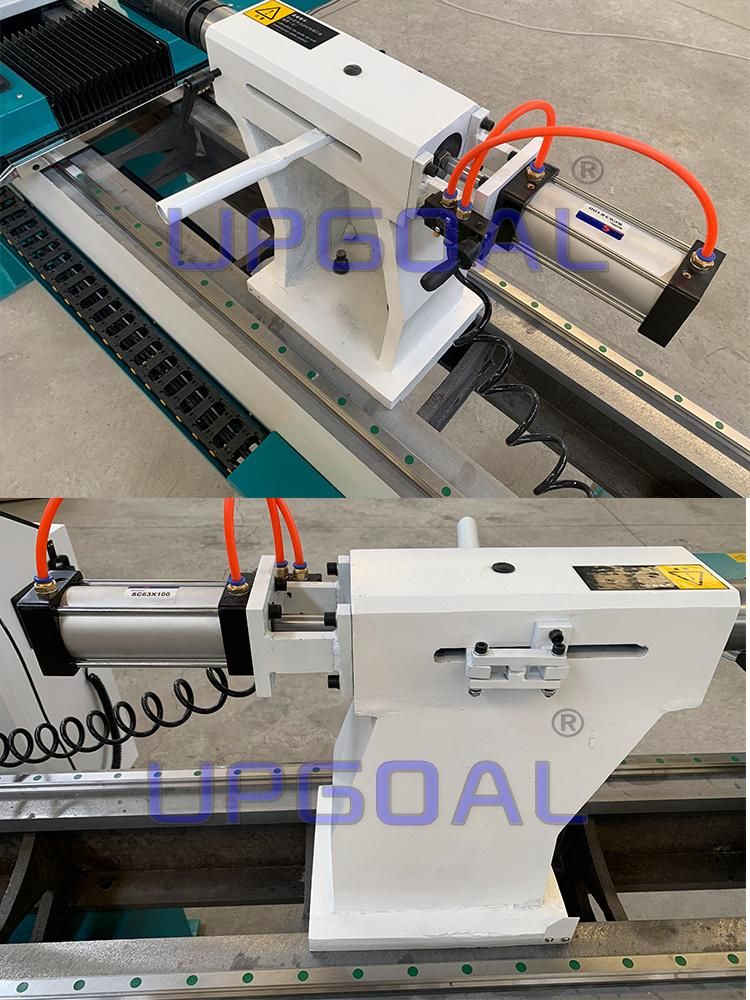

| Material clamping method | Air cylinder clamping |
| Blades material | Superhard alloy |
| Voltage | AC 380V ±0%, 50/60Hz, three phases or AC 220V ±10%, 50/60Hz, single phase |
| Lubrication system | Semi-auto |
| Oil-water separator | Has |
| Machine size | 3000*1000*1400mm |
| Packing size | 3100*1200*1600mm |
| N.W | 1500kg |
| G.W | 1600kg |
Application
Suitable for handrail, vase,table leg, European style furniture, Roman pillar, wooden clothes hanger & washbasin, kingpost, aisle column, waist drum, solid wood furniture, solid wood stairs, home decoration,wooden decoration, wooden artware,columniform conical, arc-shaped, sphere,ect all kinds of solid of revolution wooden product or semi-finished wooden products.
Materials can be processed: all kinds of wooden materials, such as beech, oak, ailanthus birch,teak, sapele, fraxinus mandshurica, merbau, sandalwood,bubinga, ect.
Working Videos
https://youtu.be/vGsRfPVF6kE
https://youtu.be/vo1RzhHEKzA
https://youtu.be/XjUWfWNRNSo

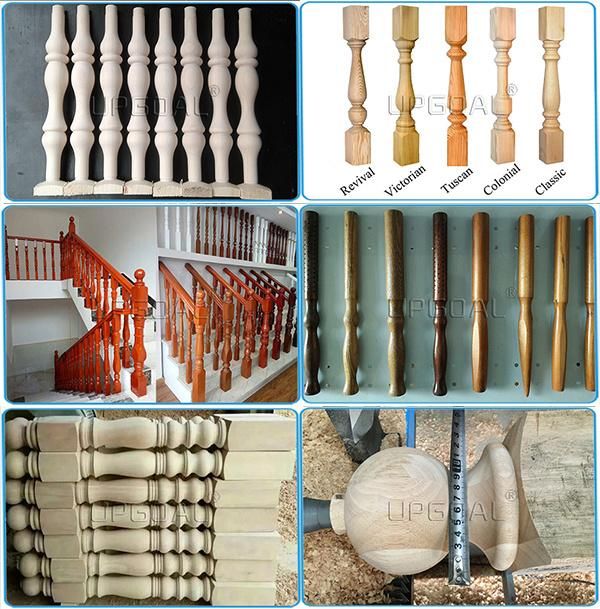

Working Samples
For more information, just feel free to contact us!
