• Model NO.：NN7084SR
• CNC Router Weight：1900kgs
• CNC Router Table Size：1320*2540*200mm
• CNC Router Power：9kw
• Max. Speed：1-30m,Min
• Max. Cutting Speed：20m,Min
• Vacuum Pump Motor：7.5kw
• Driving Motor：Servo Motor
• Worktable：Vacuum Working Table
• Transport Package：Plastich Bags
• Specification：3850*2600*2200mm
• Trademark：HZH
• Origin：China
• HS Code：8465990000
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. NN7084SR CNC Router Weight 1900kgs CNC Router Table Size 1320*2540*200mm CNC Router Power 9kw Max. Speed 1-30m/Min Max. Cutting Speed 20m/Min Vacuum Pump Motor 7.5kw Driving Motor Servo Motor Worktable Vacuum Working Table Transport Package Plastich Bags Specification 3850*2600*2200mm Trademark HZH Origin China HS Code 8465990000 Production Capacity 50 Sets/Month

Product Description

We Supply High Quality ATC CNC Router/CNC Milling Machine

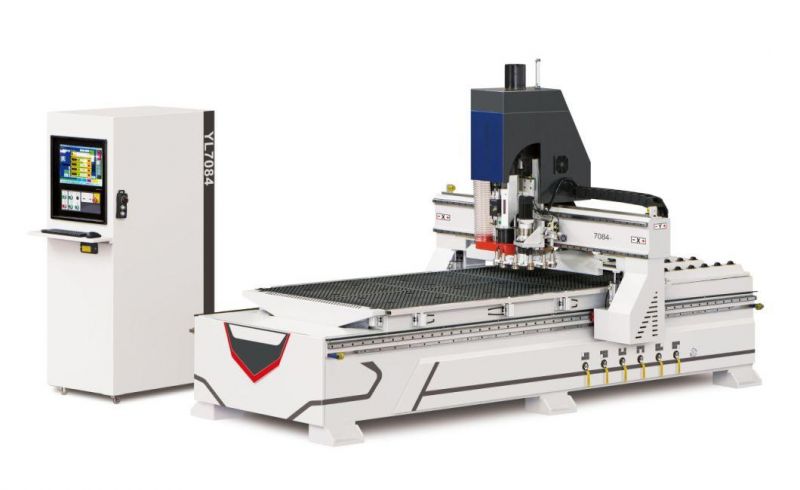

1. Products show

2.Product Description

Model	NN7084SR
Working table size	1220*2440mm
Working Area(X,Y,Z axis)	1320*2540*200mm
Machine Body	The bed lathe is made of thick square weld steel, which ensures a more stable working table.
Worktable	Vacuum worktable
Spindle motor	9kw Air-cooling Spindle(24000rpm)
Driving motor	1.1kw*3, Servo Motor
Vacuum pump motor	7.5kw Water cooling
Frequency motor	11kw
Blade store	12 blade tools
Tool Diameter	φ3.175-φ12.7mm
Max. Speed	75m/min
Max. Cutting Speed	20m/min
Control System	Taiwan SYNTEC
Support software	Artcam, Alphacam, Mastercam, Type3, UG, Caxa, JD Paint etc.
Guide way	30#Taiwan linear rail for X,Y,Z axis
Transmission	Helical gear rack for X Y-axis, Screw for Z-axis
Working precision	±0.05mm
Feature	Vacuum worktable can do quick work pieces feed in and feed out.
Dimension	3850*2600*2200mm
Weight	1900kg
Voltage	380V,50HZ

3.Machine functions

With Ship-shaped machine body, improving the stability of the machine.
With leakage structure design, clear the waste material timely, improve the ball screw & linear guide using -life under extremely harsh environment.
With steel tube structure design, the machine is best choice for high speed & precision cutting, routing, engraving
Suitable for all kinds of materials processing, like solid wood, MDF, panel wood furniture, door, cabinet door WPC.

4.Machine details

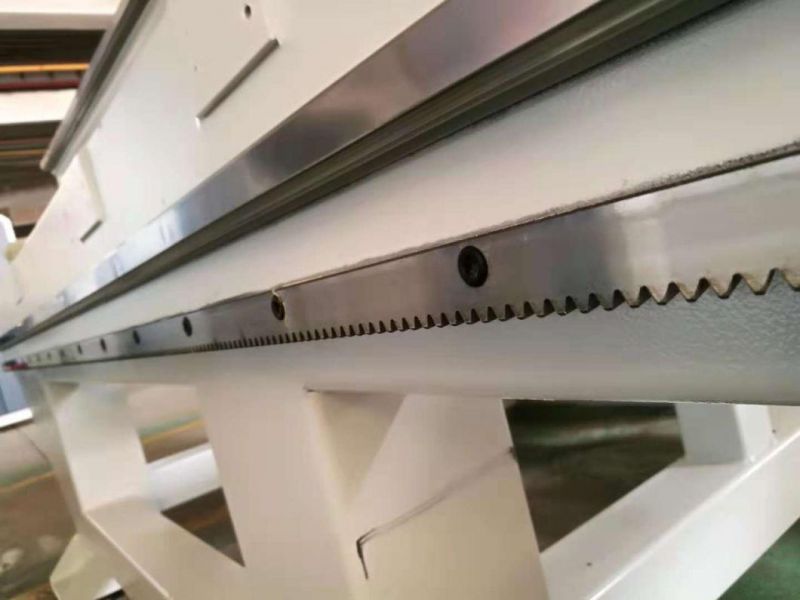

1.High-precision 30-rail imported wedge-shaped rack Heavy-duty bed Finished finish Large specifications, large contact surface, strong load carrying capacity, better stability during high-speed machining. All the large milling machines on the rail mounting surface are flattened, CNC punched, and high precision.

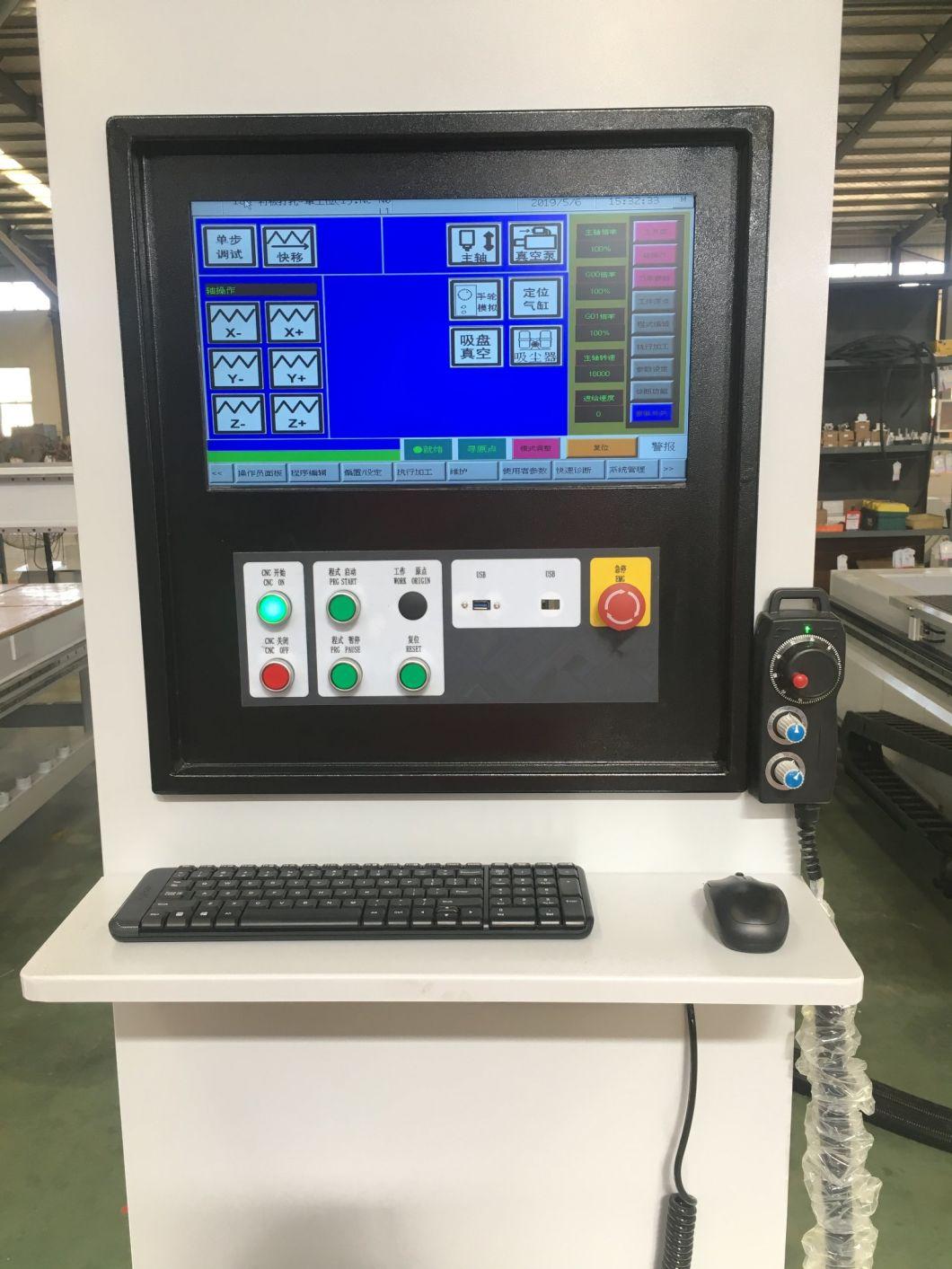

2.Mouse and keyboard operation Convenient and easy to learn High precision High stability. The operator can be employed with simple training without technicians. The machine moves quickly and efficiently.

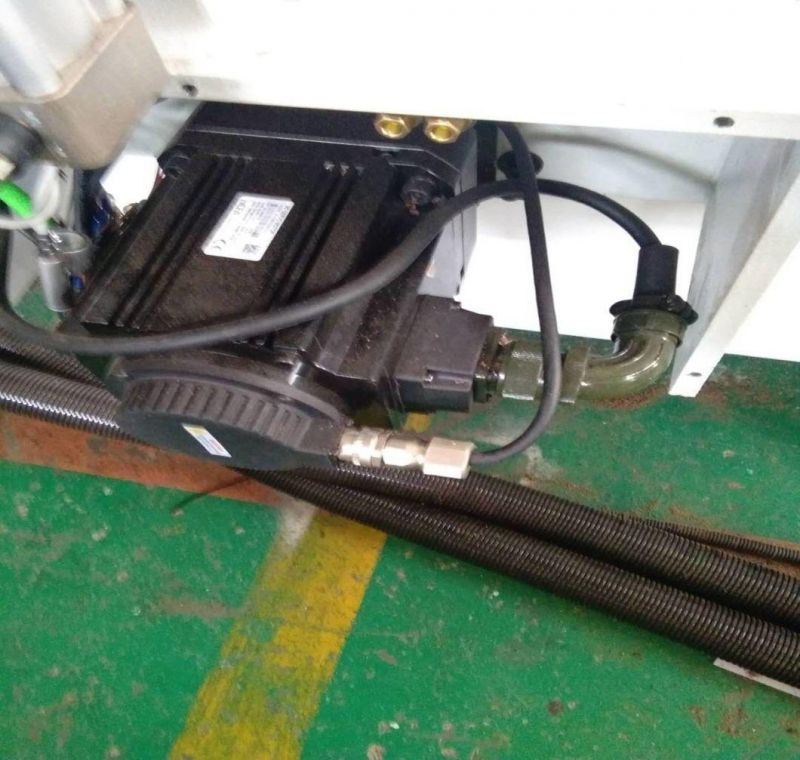

3.Heavy duty 1.1KW servo motor High inertia High torque High resolution High precision transmission, high response, effective overload 300%

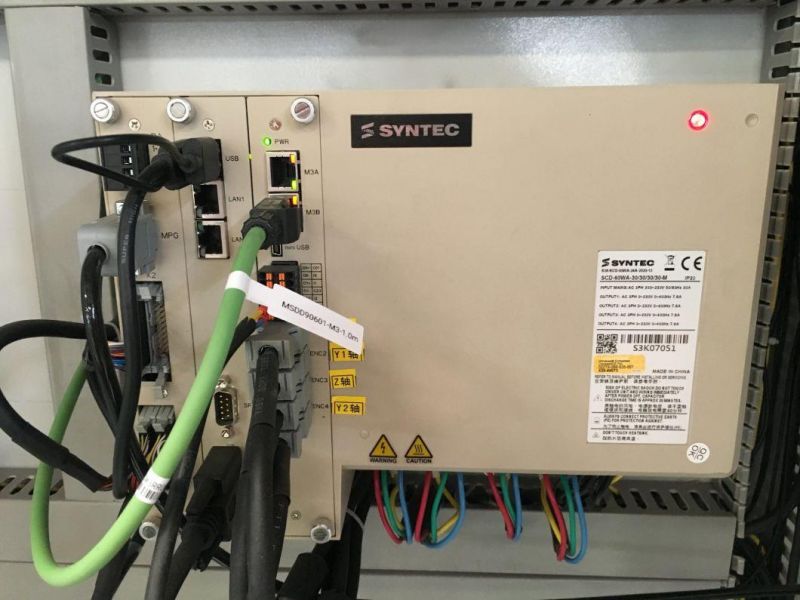

4.TAIWAN SYNTEC Control System

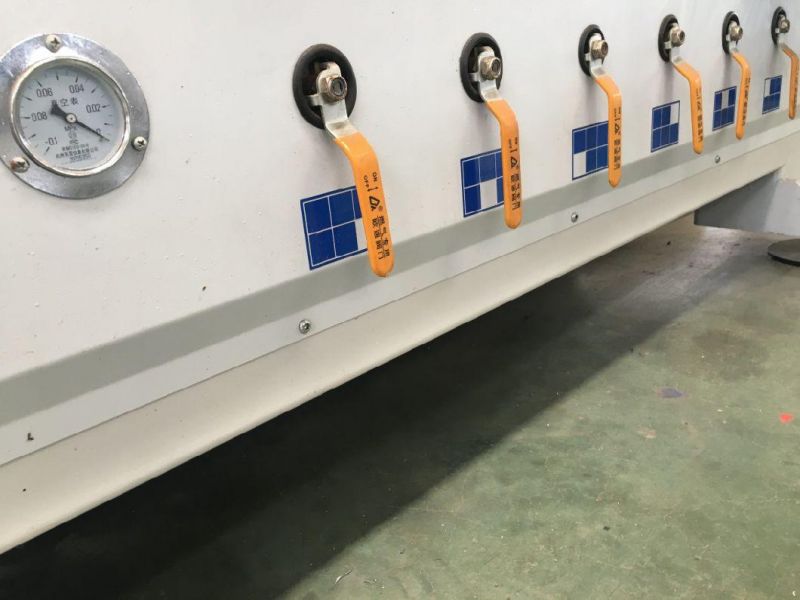

5.Vacuum 6 zone adsorption table surface is delicate and uniform, and it is perfect to solve the running board problem with 7.5KW vacuum pump.

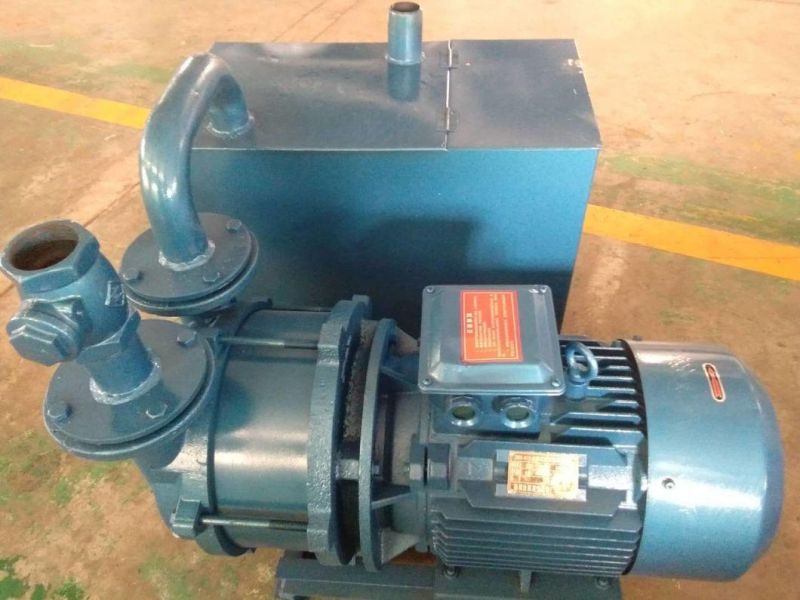

6.7.5KW stainless steel vacuum pump, a large suction large water tank, effectively guarantee the opening speed.

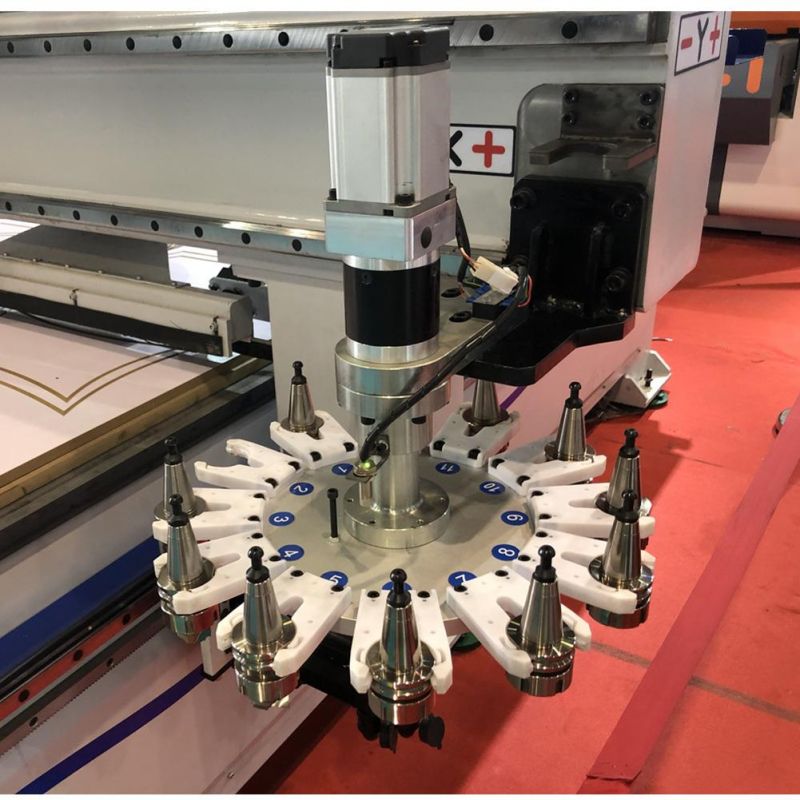

7.  CS high-precision automatic tool change spindle, fast tool change speed, no heat, can be installed with a variety of chucks, can quickly complete three-in-one hole, two-in-one hole, hinge hole. Maintenance is simple.

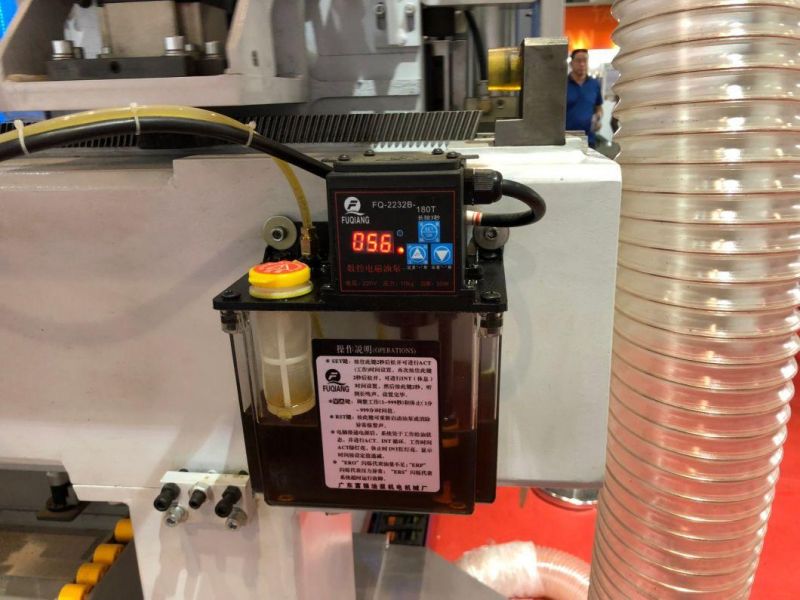

8. The precision automatic oil filling system adopts automatic lubrication pump, automatic oil filling at regular intervals, automatic maintenance of the running system of the slider and track of the equipment, debugging oil circuit design, ensuring the supply of lubricating oil for each injection point, and prolonging the service life of the equipment.



5.Company Information

Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.

With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.

We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.

Our website is sandingmachine.en.made-in-china.com; you could get more information about our company and our products.
