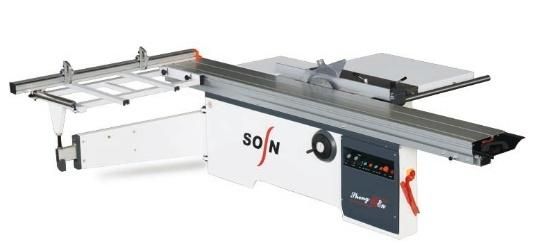

3200mm Altendorf Structure Woodworking Machinery Sliding Table Panel Saw with Electric Lifting
QINGDAO SOSN MACHINERY CO., LTD.- Warranty:2year
- Type:Table Panel Saw
- Power Type:Electric
- Layout:Horizontal
- Controlling Mode:Artificial
- Automatic Grade:Manual
Base Info
- Model NO.:MJ6132TD
- Precision:High Precision
- Certification:CE, ISO
- Customized:Customized
- Condition:New
- Color:Customized
- After-sales Service:24hours Online
- Attribute (E. G.: Size):Value (E. G.: 12 Inches)
- Colour:White and Grey
- Imported Belts:From Japan
- Motor Power:5.5+1.1kw
- Sliding Table:3200*375
- Sawblade Size:300mm
- Small Sawblade Size:120mm
- Design:Can Customized
- Weight:900kg
- Control Button:English Type
- Cut Material:ABS,PVC,MDF,HPL,Solid Wood ,etc
- Transport Package:Plywood Wooden Package
- Specification:1500mm~3800mm
- Trademark:SOSN
- Origin:China
- HS Code:84659100
- Production Capacity:300 PCS,Month
Description
Basic Info.
Model NO. MJ6132TD Precision High Precision Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service 24hours Online Attribute (E. G.: Size) Value (E. G.: 12 Inches) Colour White and Grey Imported Belts From Japan Motor Power 5.5+1.1kw Sliding Table 3200*375 Sawblade Size 300mm Small Sawblade Size 120mm Design Can Customized Weight 900kg Control Button English Type Cut Material ABS,PVC,MDF,HPL,Solid Wood ,etc Transport Package Plywood Wooden Package Specification 1500mm~3800mm Trademark SOSN Origin China HS Code 84659100 Production Capacity 300 PCS/MonthProduct Description
High Precision Panel Saw Mj6132td Made in ChinaFeature:

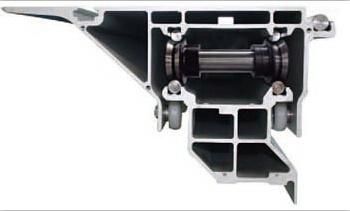

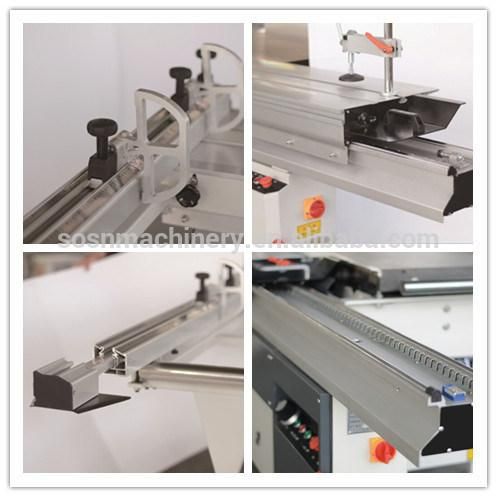

1. Sliding table guide track is plating chromium steel bars structure, exact and durable
2. Sliding table have multipoint locking, improving working efficiency greatly.
3. With oxidation treatment, movable table surface is beautiful and hard wearing
4. Manual up & down of main saw,tilting 0-45 degree
5. The motor can change Siemens motor - 5.5+1.1kw
Main technical parameter:
Dimension of sliding table | 3200X375mm |
Gross cut capacity | 3200mm |
Width of cut between saw blade and rip fence | 1250mm |
Saw blade diameter | 300mm (250-300mm) |
scoring saw blade diameter | 120mm |
Speed of main saw spindle | 4500/6000rpm |
Speed of scoring saw blade | 8000r/min |
Tilting saw blade | 0-45 degree |
Main motor | 5.5kw |
Scoring motor | 1.1kw |
Height of cut | 90mm |
Height of cut 300mm saw blade at 45 degree | 60mm |
Main spindle diameter | 30mm |
Net weight | 800kgs |
Gross weight(with plywood wooden package) | 850kgs |
Overall dimensions | 3200X3150X900mm |
Altendorf
SOSN aim is supplying the best machine and considerate service
to every friend who meet us from all over the world ,
welcome you enjoy SOSN machinery !!
Why choose us:
1. professinal manufacture with 15 years production experience in woodworking machines.
2.more than 70 countries customers have enjoyed SOSN machines.
2.More machine equipment more advanced, more precise
3.Best price, high quality and reliable service
4.CE, ISO Certificate
5.100% quality testing before shipment
6. Warranty: 2 years, and supply the spare parts free of charge
Our service:
All inquiries will be answered within 24 Hours
We are right here waiting for an opportunity to serve you with our rich experiences.
We take care of every screw out from our hand, and will be very glad to become your reliable responsible and considerate partner in business and much more, like what we are doing for
our clients from Europe, America, Africa and Southeast Asia
