• Model NO.：UG-1530WL
• Tool Holder：Single-tool Holder CNC Lathe
• Automatic Grade：Semiautomatic
• Precision：High Precision
• Setting Mode：Floor-type
• Controlling Mode：CNC
• Power Source：Hydraulic Pressure
• Processing Accessory：Centre CNC Lathe
• Certification：CE, ISO
• After-sales Service：24 Hours Online Service
• Working Areamaximum Processing Length：1500mm
• Maximum Turning Diameter：Maximum Turning Diameter
• Structure：Single Axis Two Blades
• Transmission：X, Z-Axis : Lead Ball Screw Transmission Diameter
• Guide Rail：Linear Square Guide Rail, Hiwin, Taiwan, Diameter
• Main Motor Power：4kw Three Phases Asynchronous Motor
• Control System：Gxk 1000ta Controller with Handhweel
• Material Clamping Method：Air Cylinder Clamping
• Rotate Top & Tailshaft：Rotate Top Mohs # 5 & # 70 Tailshaft
• Compatible File：,Dxf
• Tools Calibration：Automatic

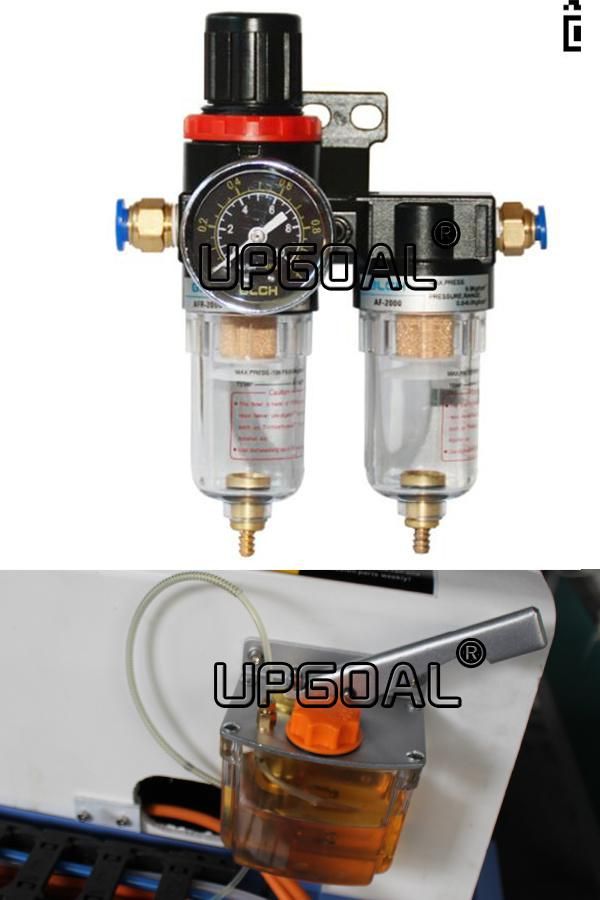

• Lubrication：Semi Automatic
• Oil-Water Separator：with
• Transport Package：Plywood Case
• Specification：3200*1100*1600mm, 1600kgs
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：84659900
• Production Capacity：50 Sets,Month
• Package size per unit product：310.00cm * 110.00cm * 160.00cm
• Gross weight per unit product：1500.000kg

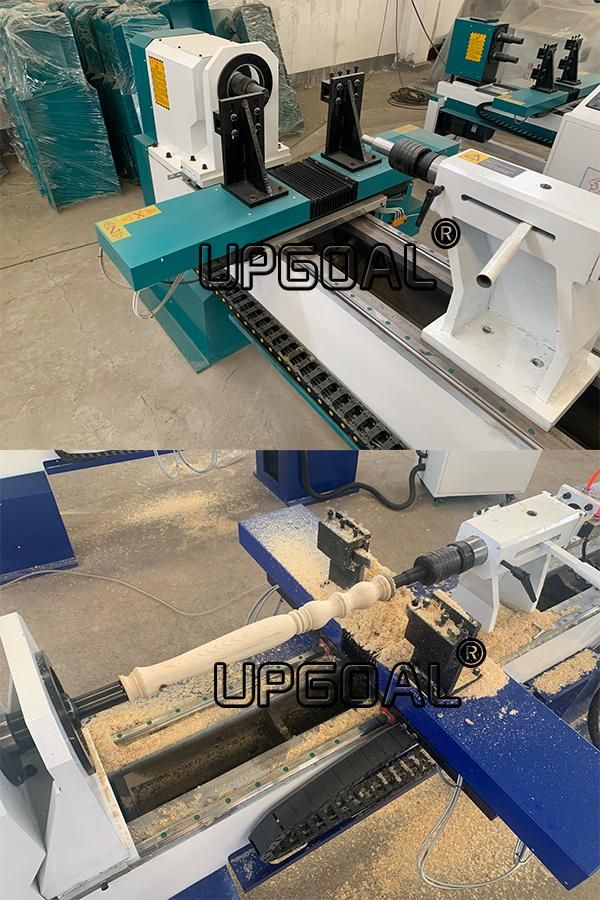

One time setting multi functional processing, auto switching for turning, broaching, milling spiral surface, curve surface, flat engraving, suitable for complicated beautiful workpiece processing.


Auto changing turning & engraving angle, meet the requirements of big diameter wood cylinder processing

Can adjust each blades turning proportion at random according to processed materials, reducing the workpiece bounce and vibration, increasing the turning wood finish.


Numerical control frequency conversion, energy-saving power, adjusting speed timely, multistage safe protection


Adopting high performance inverter, frequency conversion, step-less speed change, adjusting turning speed timely according to workpiece's diameter, saving power.


Multistage safe protection, protect motor and machine effectively, ensuring machine working under the normal loading.

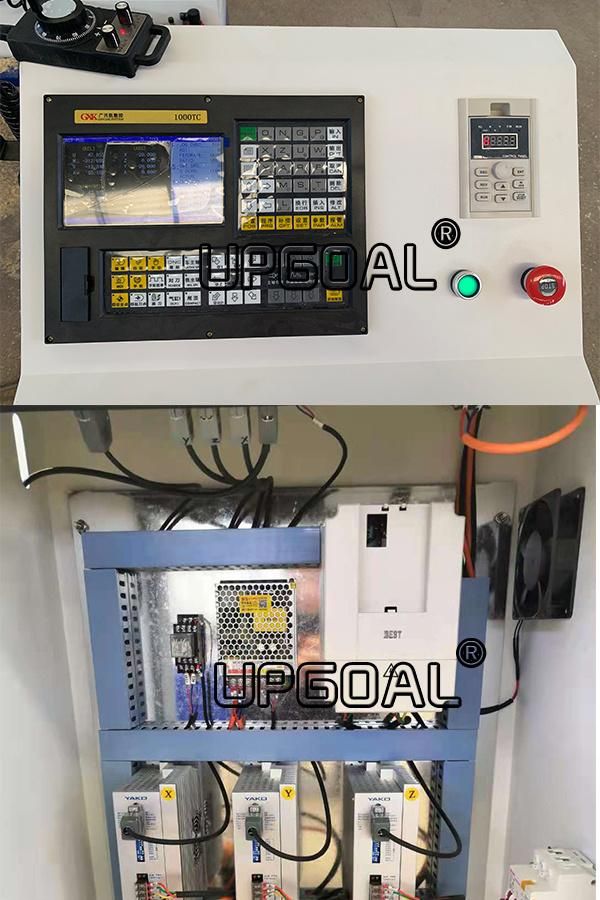

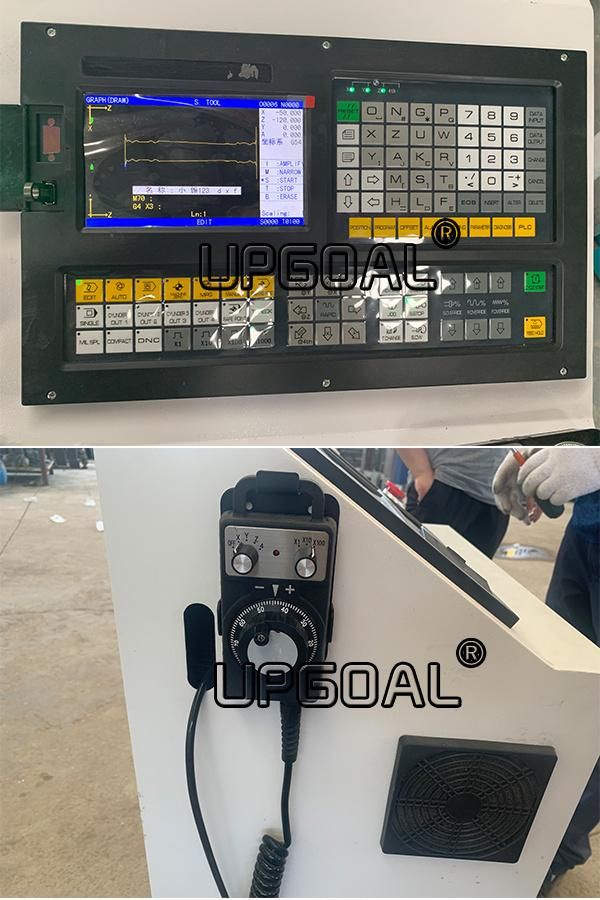

Adporting famous GXK controller with handhweel USB connection, easily to change the pattern, no need programming at site, system can upgrade


Easy drawing,just draw the easy pattern, then can process, no need complicated programming.


System can upgrade with USB disk file, realizing remote redact and local operation.


Supporting single blade, double blades one time process, no need complicated program to finish multiple different turning, meets with different workpiece requirement, easy and fast.

Pause and memory function, more convenient for inspect workpiece processed quality( precision and finish), timely adjusting.


Specialized CNC control high precision control system, easy to operate, short leaning, no need specialized knowledge, fast processing speed and good uniformity of finished products.

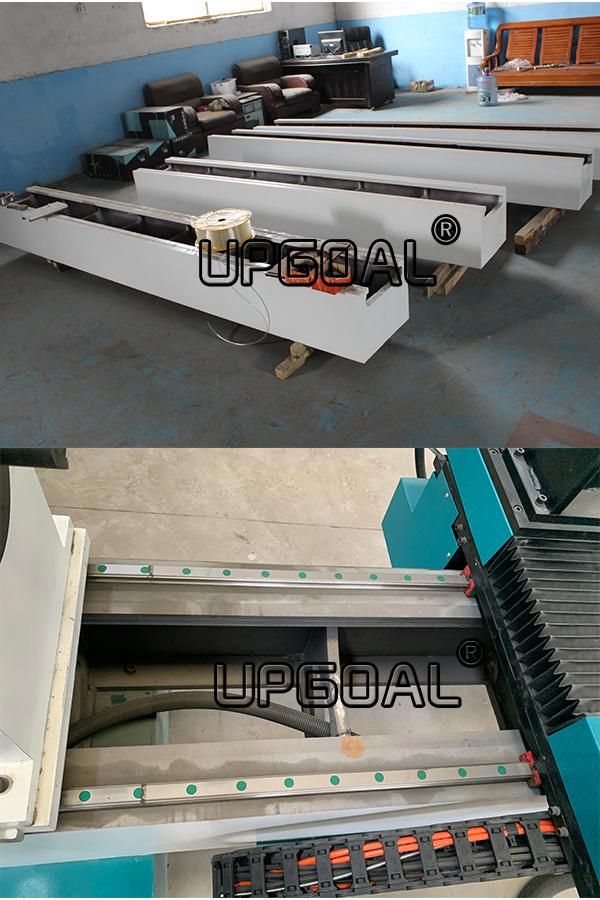

Heavy duty Cast iron machine bed, less deformation and stable transmission


Machine bed's design & processing is standard according to processing machine norm, adopting one time casting, aging treatment, less deformation, increasing machine using stability.

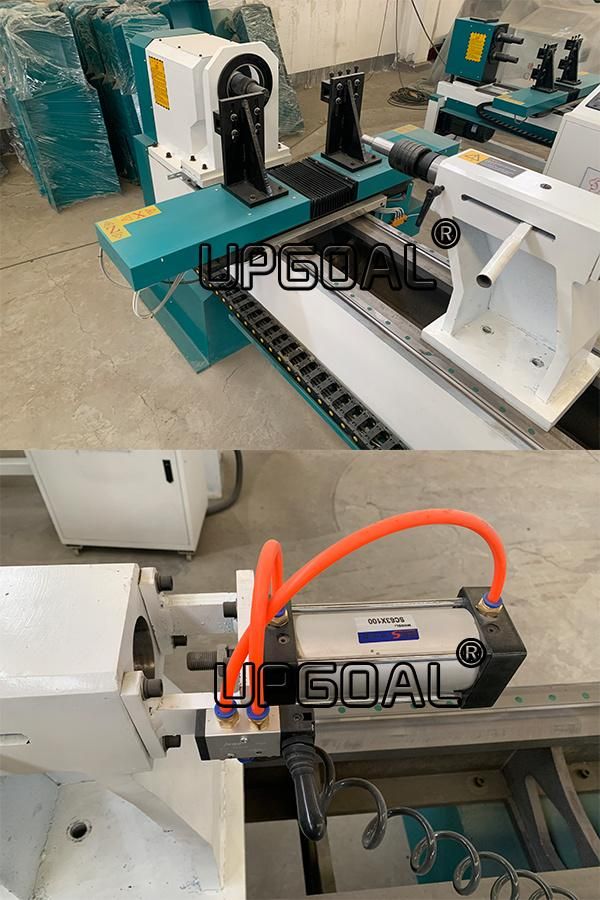

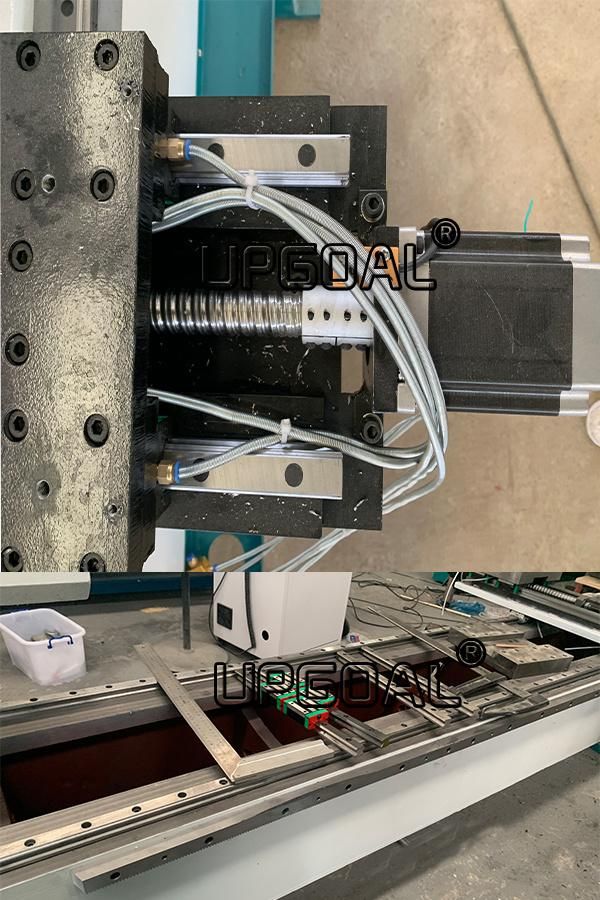

Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.


Helical gears pinion and rack transmission Y- axis, higher running speed and efficiency, saving cost.


X Z- axis with precision ball screw, high precision and more durable.

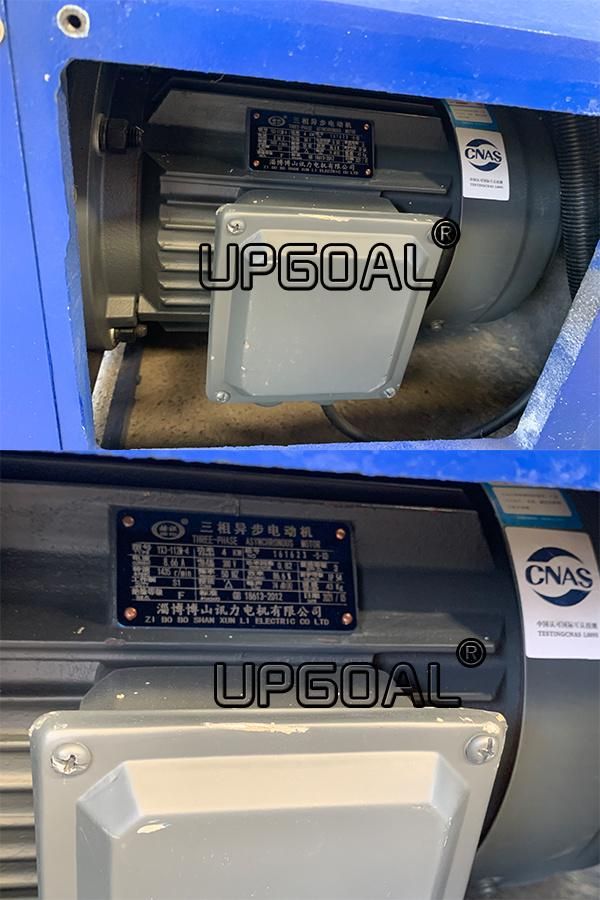

 The maxin motor adorpting 4.0kw three phases asynchronous motor and XYZ-axis with famous ACT  86BYGH450B stepper motor ,and  YAKO 2D 811 stepper driver,  high precision, fast speed and more stable.

Air cooled electronic control cabinet, lowering the temperature of control cabinet effectively, long time all electronic component life time.



Technical Parameters



Application

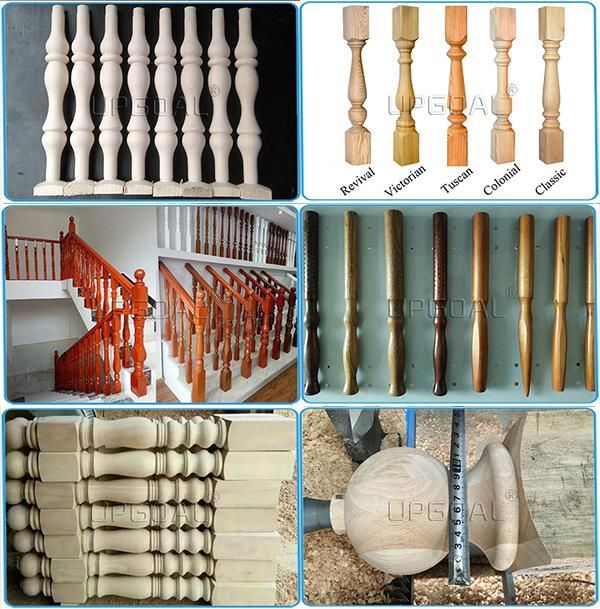

Suitable for handrail, vase,table leg, European style furniture, Roman pillar, wooden clothes hanger & washbasin, kingpost, aisle column, waist drum, solid wood furniture, solid wood stairs, home decoration,wooden decoration, wooden artware,columniform conical, arc-shaped, sphere,ect all kinds of solid of revolution wooden product or semi-finished wooden products.

Materials can be processed: all kinds of wooden materials, such as beech, oak, ailanthus birch,teak, sapele, fraxinus mandshurica, merbau, sandalwood,bubinga, ect.
