Wide Belt Sanding Machine Plywood Sander Machine Calibrating Sanding Machine
QINGDAO SOSN MACHINERY CO., LTD.- Warranty：12months
- Type：Belt Wood Sander
- Automatic Grade：Semiautomatic
- Variable Speed：Variable Speed
- Certification：CE, ISO
- Customized：Customized
Base Info
- Model NO.：R-RP1300
- Condition：New
- Color：Customized
- After-sales Service：24 Hours on The Line
- Working Width：1300mm
- Min Working Length：500mm
- Working Thickness：3-110mm
- Conveyor Speed：6-30m,Min
- Total Motor Power：80.05kw
- Application：Wood Door, Cabinet Door
- Transport Package：Strong Stretch Film
- Specification：4800KG
- Trademark：SOSN
- Origin：China
- HS Code：846593000
- Production Capacity：150 Sets Per Month
Description
FeatureIt is reasonable to match the planer roller and sander. The planer is generally used for sand planing of raw materials. The planer can remove 3mm at a time, without the effect of sanding, and the flatness is not as good as the sanding machine. The sanding machine sands 70-80 threads at a time. If you want to sand to 3mm, you need to sand 3-4 times, and the sanding machine can complete it. It is relatively slow. The combination of the two is a planing sander.
1. Imported planer roll, will be thick roll and soft roll (or a combination of sand frame), and then after the first plane sand polishing process, energy efficient.
2. With floating pressure boots, short sand material available.
3. Casting stop device is used to avoid rebounding and hurting the plate during processing.
4. Conveyor belt drive adopts variable-frequency helical gear worm reducer, more stable and reliable.
3). Main parameter
| Working width | 1300mm |
| Min.Working length | 500mm |
| Working thickness | 3-110mm |
| Feeding speed | 5-25m/min |
| Total motor power | 80.05kw |
| Motor for first unit | 22kw |
| Motor for second unit | 30kw |
| Motor for third unit | 22kw |
| Feeding motor | 5.5kw |
| Lifting motor | 0.55kw |
| Abrasive belt size | 1330*2200mm |
| Working air pressure | 0.6MPa |
| Volume of dust collection device | 12000m3/h |
| Overall dimensions | 3000*2000*2050mm |
| Net weight | 4800kg |
We also have 630mm, 1000mm, 1300mm working width planer sanding machine for your choice.

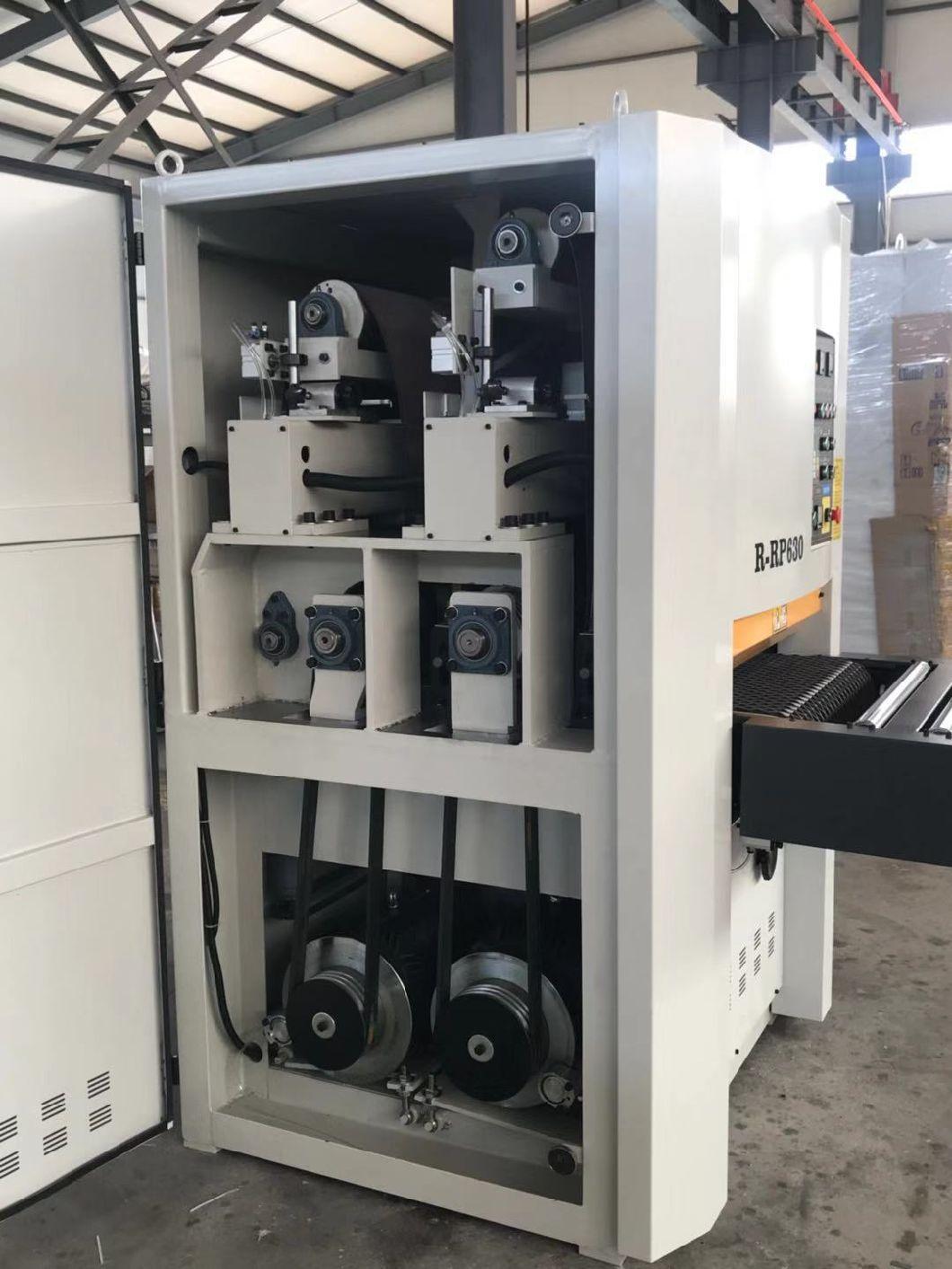

Wide belt sander machine details
2.High Speed TR bearing ,Eccentric shaft structureAdjust speed control emperature controller smoothly used

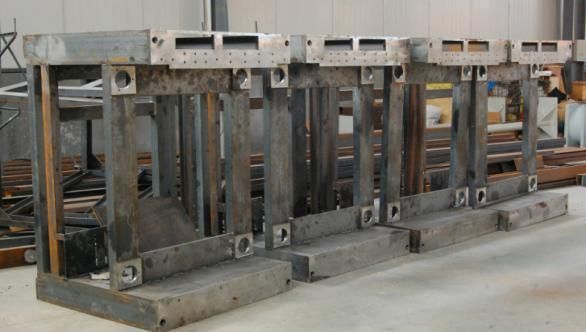

3.laser cutting frame, powder-coating

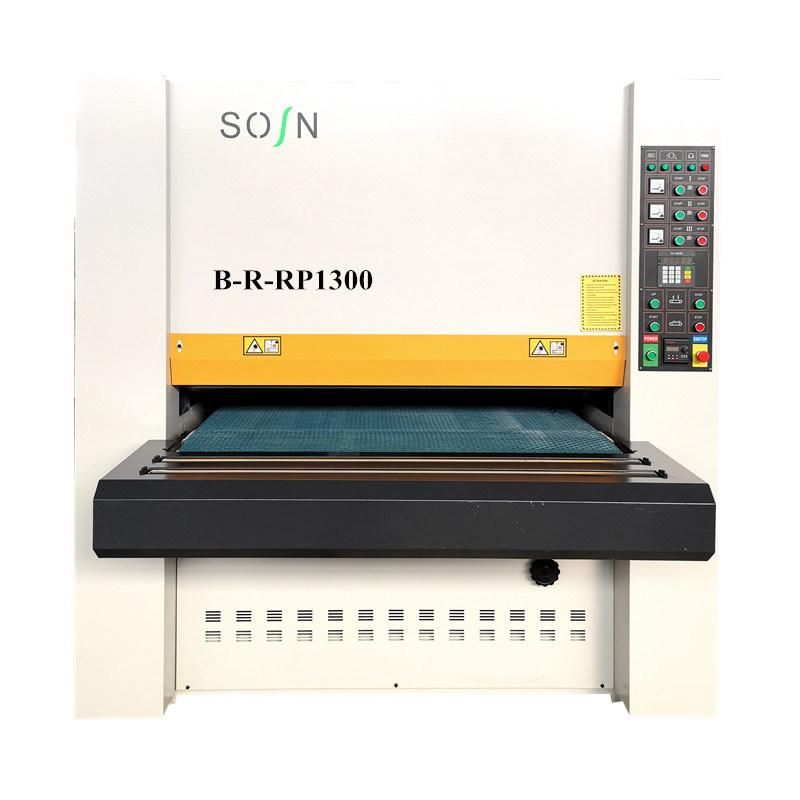

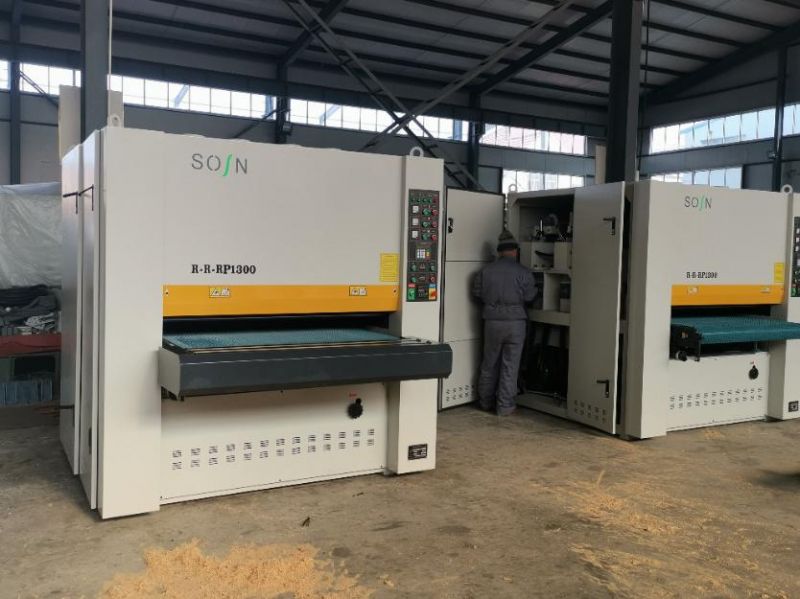

Machine picture

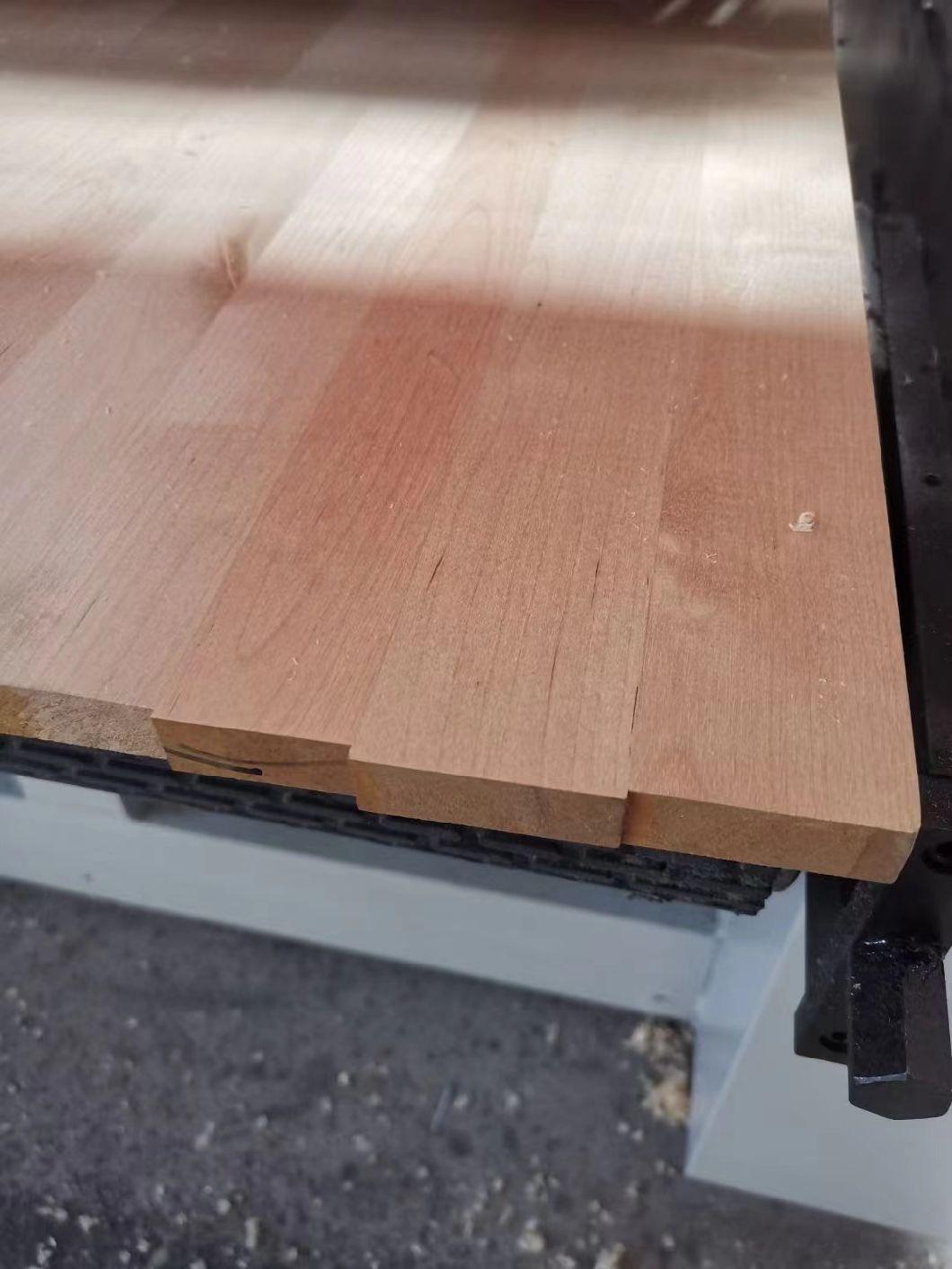

Apppication

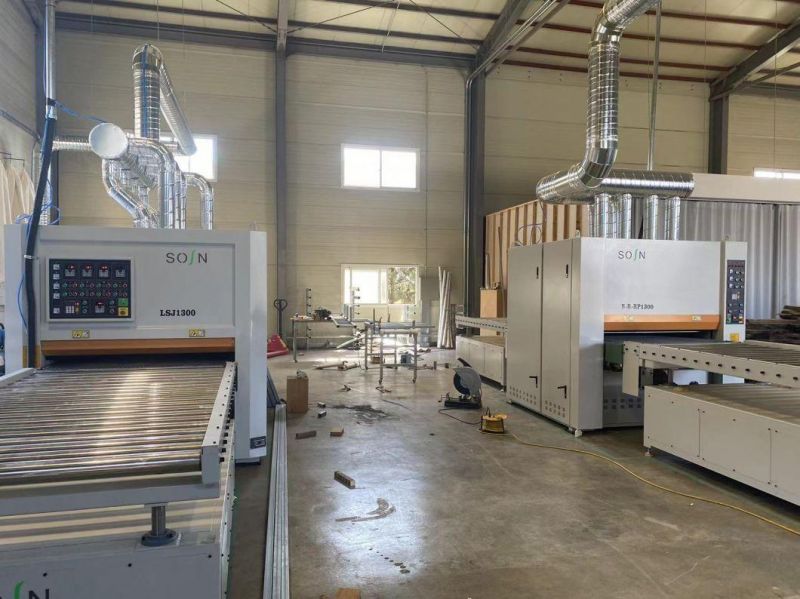

5).Machine at workshop.

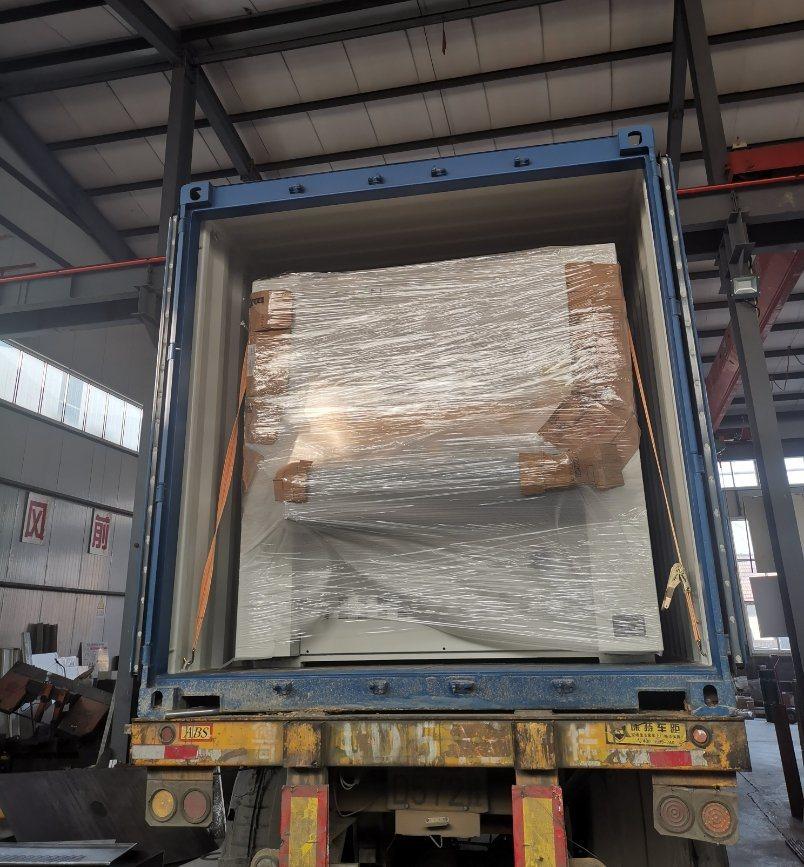

6). Package and delivery

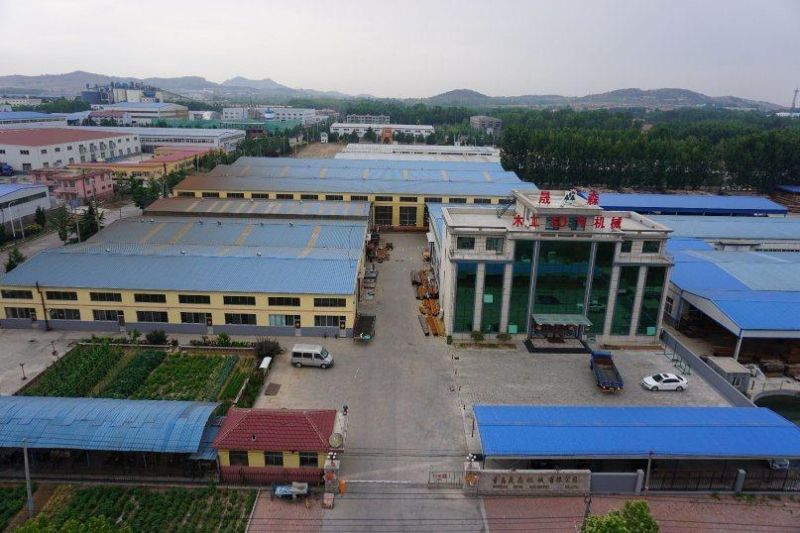

7).Our factory
With rich professional exprience for woodworking machine, we sincerely welcome your visiting to our factory.
--Delivery:
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can't deliver on time, we will give the product a corresponding discount.
--Package:
After testing the sanding machine well, our workers will do cleaning work before package.
stretchy film for the whole machine and some spare parts which will also be seperatly packed well by strong stretch film.
--Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
--Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
--After sales services:
Our machine is installed and tested well before delivery to you, when you get the machine, you just need to install it and then can operated, of course ,all of these steps our technician will give you professional help.
No worry for any installation or operation of this sanding machine, we are here to help you.
Heavy duty frame, Unique internal structure, top-brand spare parts, professional installation workers, in time after sale service, this machine surely can highly improve your working efficiency!
As with our Wide Belt Sanding Machine , we also place the highest demands on our service. No matter what your concern is. Our service team is at your side quickly, competently and reliably.Quality is our culture !!
