• Model NO.：FZ-450D
• Certification：CE, ISO
• Panel Thinkness：10-60mm
• Min.length panel：120mm
• Min.width panel：80mm
• Manufacturing Principles：Glue Tank Underneath
• Customized：Customized
• After-sales Service：2 Year Warranty
• Name：Edge Bander
• Total Power：11.13 Kw
• Air Pressure：0.8 MPa
• Feeding Speed：12-20 M,Min
• Transport Package：Plywood Package
• Specification：6100*1000*1600 mm
• Trademark：SOSN
• Origin：China
• Production Capacity：200 Sets ,Month

Basic Info.

Model NO. FZ-450D Certification CE, ISO Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 80mm Manufacturing Principles Glue Tank Underneath Customized Customized After-sales Service 2 Year Warranty Name Edge Bander Total Power 11.13 Kw Air Pressure 0.8 MPa Feeding Speed 12-20 M/Min Transport Package Plywood Package Specification 6100*1000*1600 mm Trademark SOSN Origin China Production Capacity 200 Sets /Month

Product Description

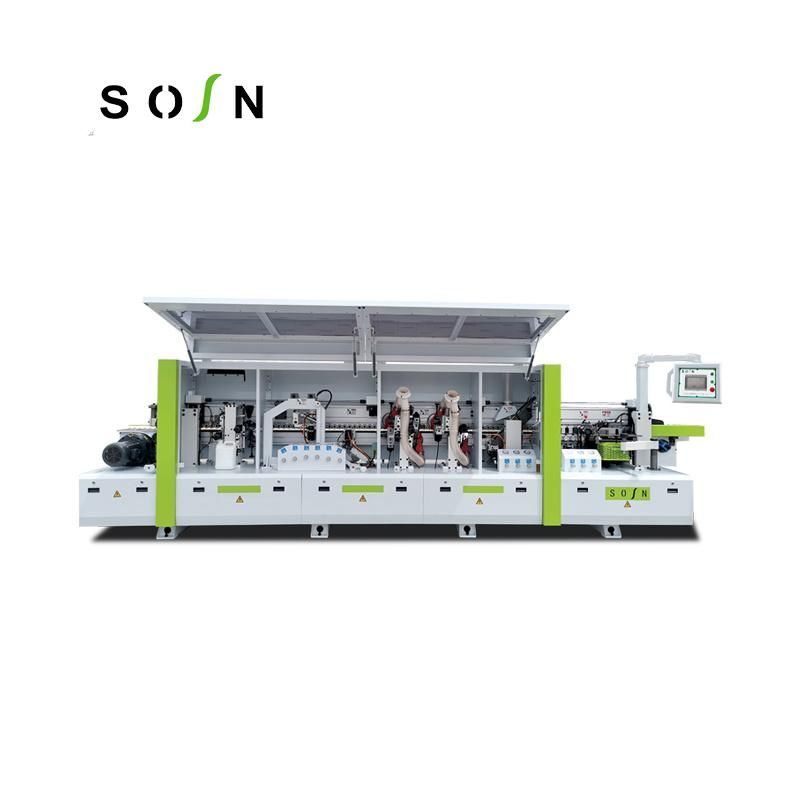

woodworking machinery edge banding machine edge bander  FZ-450D

Main function:
Gluing, end trimming, rough trimming, fine trimming, corner trimming, scraping, buffing

Adopt to the linear sealing of PVC, wood plank and veneer etc.
using imported quality engines and electric components
Serialized products, a wide range of selection by customers
High precision and efficiency

Features of edge banding machine
a,Edge Banding Material:PVC, Melamine,ABS,Veneer,Solid Wood Strip,etc
b,Workpiece:Plywood, Fire board, MDF board,Solid Wood,Particle board,etc.
c,imported quanlity engines and electric components.
d.serialized products,a wide range of selection for customers.
e.high precision&efficiency.
Main technical parameter:

Motor power	11.13 kw
Overall size	6100x1100x1600mm
Feed speed	12-20m/min
Panel thickness	10-60mm
Edge banding tape thickness	0.4-3mm
Panel width	≥ 80mm
Working air pressure	0.8Mpa
Weight	2500kg

Optional: double glue system, PUR gluing, hogging, automatic control of PVC thickness adjustment.


Shihlin Touch screen:
Pre heating function:

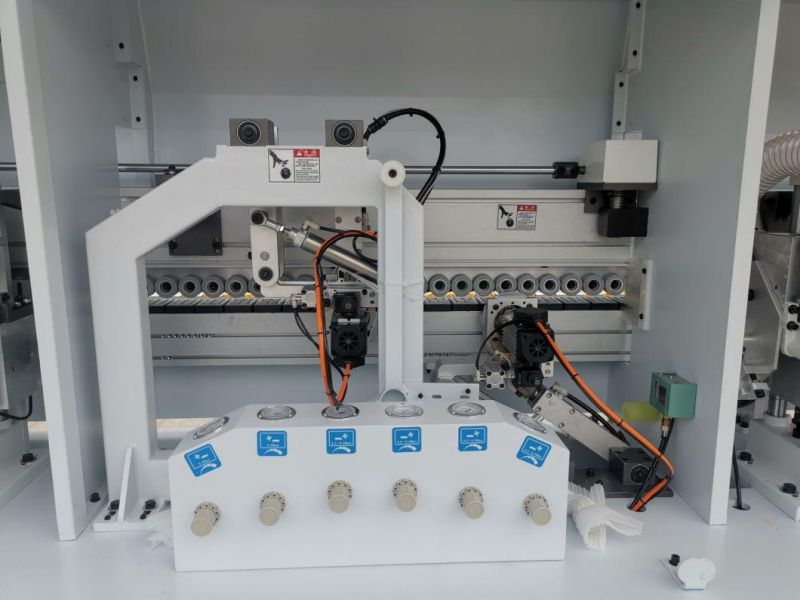

Gluing function:

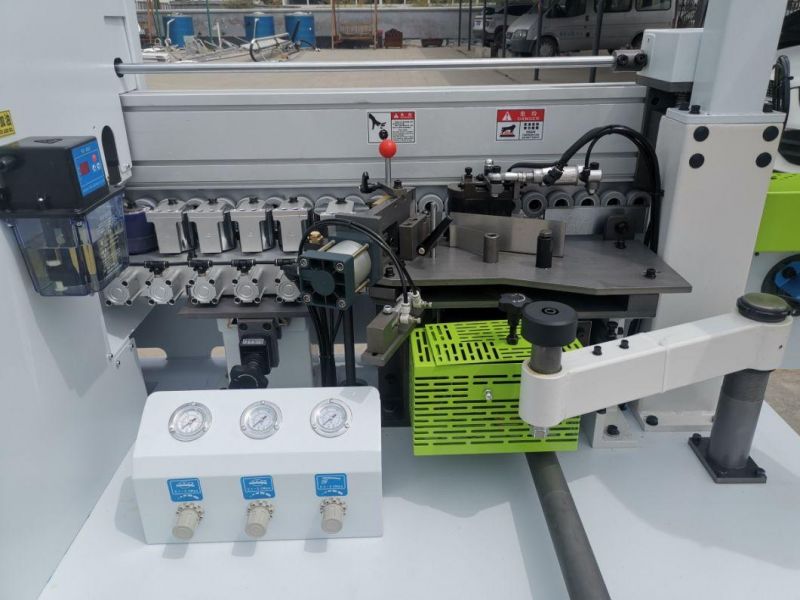

End cutting trimming+ rough trimming+fine trimming

Corner rounding trimming

Notes
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: standard export wooden case package.
4. Delivery time:20 days after getting the deposit (depends on the quantity)
Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs
2: quick delivery--timely and effective
3: excellent after-sale services--no worries anymore
4: friend partner relationship--a win-win cooperation

Have any need, pls feel free to contact us
We will supply you 24-hour service
