• Model NO.：IGW-1325
• Trademark：IGOLDENCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：100sets,Month

Features:

1. Tools can be changed automatically in the stage of processing, which means time saving and working efficiency promoting.

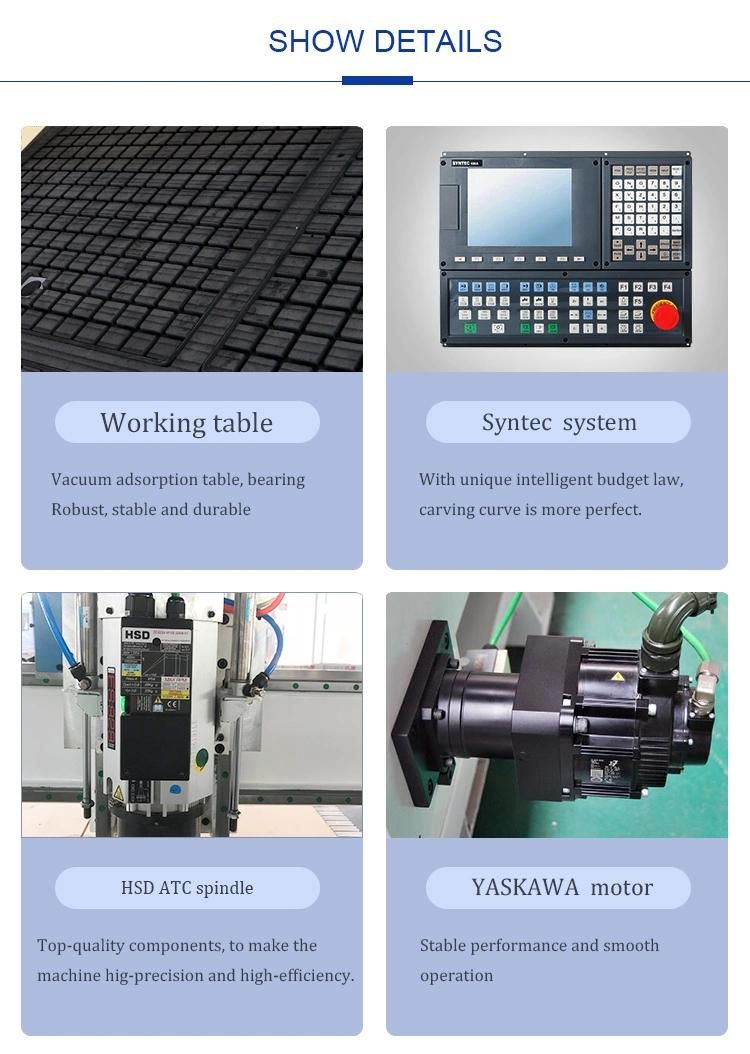

2. Equiped with Italy HSD air cooling spindle,and taiwan SYNTEC control system, it's easier to learn and master the machine.

3. All the machine is allowed to be customized just according to your own requirements.for example, the working size can be designed to large or smaller, tools storage can select with carousel tool changer type, or the rotary device is supported to be installed on the point you want to put on the machine, etc.

Description

Parameters

Structure

Seamless steel welded heavy body

Table

1300*2500*200mm

XYZ working size

XY axis is helical rack and gear ,Z axis ball screw

XYZ transmission

Famous taiwan hiwin line 25mm square guide way

Spindle

9KW ATC HSD aircooled spindle with drill unite 9

Spindle collet

ER32

Inverter

Well known china fuling 11kw

Motor

Japan YASKWA motors 850W

Driver

Japan YASKWA drivers

Controller system

Taiwan syntec controller srstem

Voltage

220v/380v,50/60H

Software

Artcam

Router bits

20pcs for free

Vacuum pump

7.5kw air cooling

Packing weight

2200kg

Sample & Application

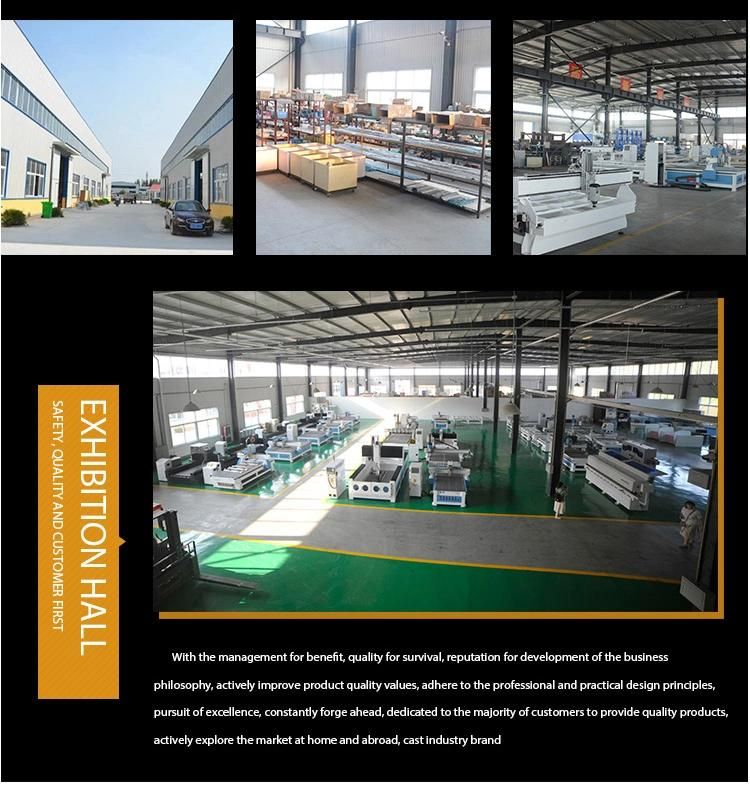

Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit https://igoldencnc.en.made-in-china.com for more choices. All of our machines have passed with the following certificate.
