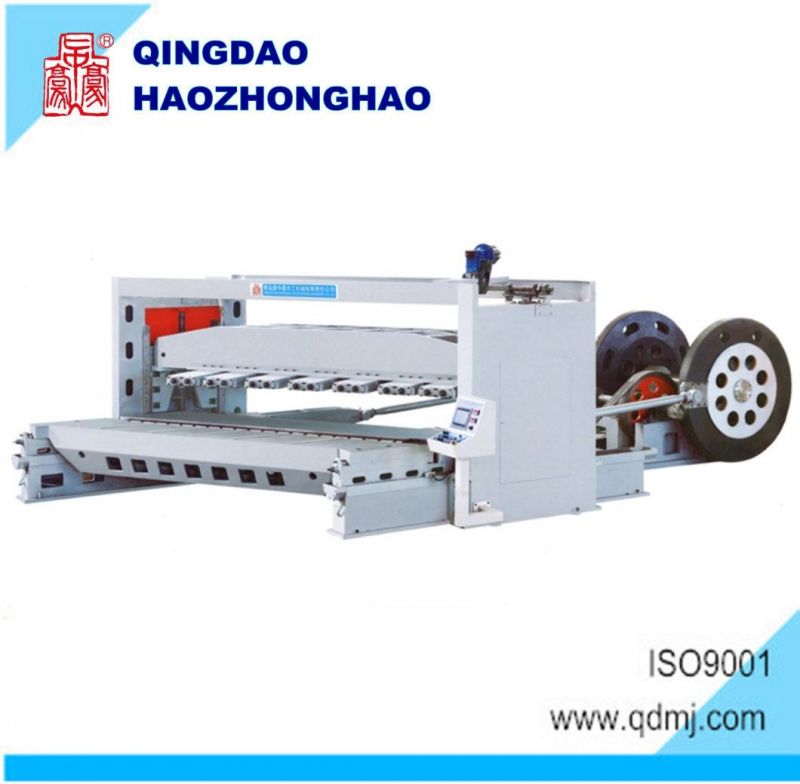

Woodworking Veneer Slicing Horizontal Veneer Slicer Machine
Qingdao Haozhonghao Woodworking Machinery Co., Ltd.- Type:Horizontal Veneer Slicer
- Working Depth:<100mm
- Working Width:Max 1300mm
- Drivetrain:Main Drivetrain
- Enter Method:Mechanical
- Motor Power:>10Kw
Base Info
- Model NO.:BB1135B
- Cutter Shaft:1
- Spindle Speed:Max 26 PCS
- Process Type:Heavy Processing
- Certification:CE, ISO
- Max. Slong Cap. for The Flitch:2600*1300*700mm,3100*600*700mm
- Size of The Knife:3550*200*23.5mm
- Slicing Thickness:0.1-2.0mm
- Slicing Speed:18-32PCS,Min
- Flitch Clamping Method:Auto & Manul
- Total Power:46.8kw
- Main Motor:37kw
- Rise & Down Motor:4.3kw
- Clamping Motor:5.5kw
- Installing Size:9000*4500*2800mm
- Transport Package:Plastic Film
- Specification:ISO9001
- Trademark:HZH
- Origin:Qingdao, China
- HS Code:84659600
- Production Capacity:18-30pieces,Min
Description
Basic Info.
Model NO. BB1135B Cutter Shaft 1 Spindle Speed Max 26 PCS Process Type Heavy Processing Certification CE, ISO Max. Slong Cap. for The Flitch 2600*1300*700mm/3100*600*700mm Size of The Knife 3550*200*23.5mm Slicing Thickness 0.1-2.0mm Slicing Speed 18-32PCS/Min Flitch Clamping Method Auto & Manul Total Power 46.8kw Main Motor 37kw Rise & Down Motor 4.3kw Clamping Motor 5.5kw Installing Size 9000*4500*2800mm Transport Package Plastic Film Specification ISO9001 Trademark HZH Origin Qingdao, China HS Code 84659600 Production Capacity 18-30pieces/MinProduct Description
We supply high quality BB1335 Woodworking vertical veneer slicer machine1.Product show
2.Product Description
Model | BB1135B |
Max cutting size | 2600*130*700mm/3100*600*700mm |
Blade size | 3550*200*23.5mm |
Veneer thickness | 0.1-2.0mm |
Cut speed | 18-32pcs/min |
Clamping methods | Auto & manual |
Total power | 46.8Kw |
Main motor power | 37Kw |
Wood clamping motor | 5.5Kw(Hydraulic) |
Feed motor | 4.3Kw |
Overall size | 9000*4500*2800mm |
Weight | 23T |
3. Function and Characteristics
1Double V-chutes are used for both sides the machine, with high parallel; Special polymer wear-resistant material coated on the surface. Machine runs in higher stability and with less friction.
2Serve motor control system is used fo, timber feeding, guarantee the veneer thickness in a high precision, avoiding blade scratch on the timber
3Whole casted beam holds the log stongly. And hydraulic driven hooks clamp the log tightly and effectively Vacuum system is used inside the log beam. Helping hdding ttre big timber avoiding its deforming or dropping down duringg the cutting electric control
4All switch button are gathered togeffierin cabinet Single person can operate the machine avoiding the dangerous caused by fault
5Special designed big size driving gear runs smooffily with a low noi, e when it runs in high speed

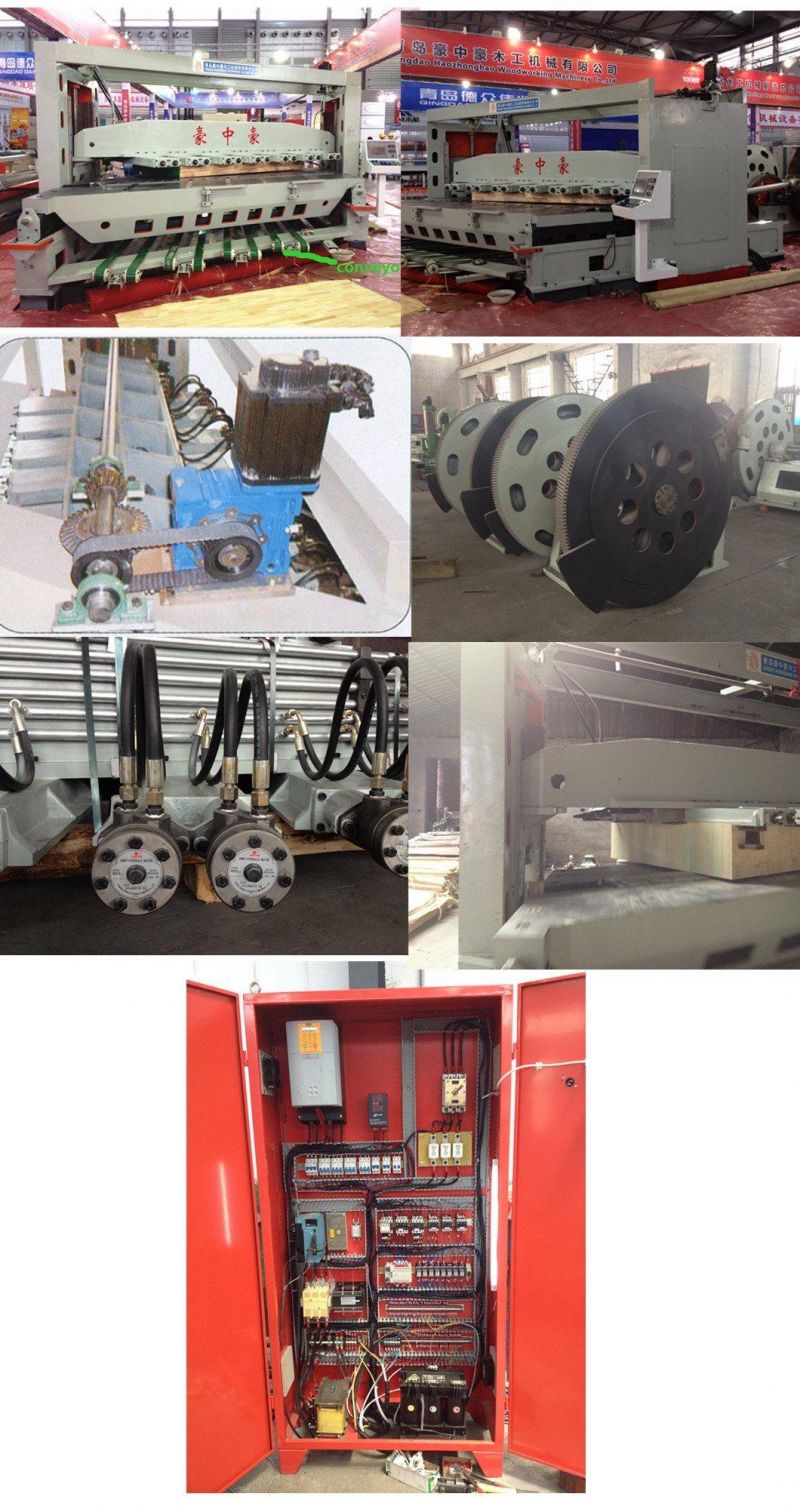

4.Machine details
5.Company Information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.
We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
Our website is sandingmachine.en.made-in-china.com; you could get more information about our company and our products.
