• Model NO.：ELECNC-2040
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：AC400V, 3phase, 50Hz, 400V
• Dimension(L*W*H)：3200X2100X1980mm
• Spindle Power：9kw Italy Hsd Atc Air Cooling Spindle
• Transmission：X, Y Rack & Pinion Drive, Z Ball Screw Drive
• Spinlde Speed：0-24000rpm
• Driving System：850W Japan Yaskawa
• Inverter：11kw Taiwan Delta Inverter
• Table Surface：9 PCS Vacuum Zone
• Collect：ISO30
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China

Basic Info.

Model NO. ELECNC-2040 Customized Customized Condition New Color Customized Voltage AC400V, 3phase, 50Hz, 400V Dimension(L*W*H) 3200X2100X1980mm Spindle Power 9kw Italy Hsd Atc Air Cooling Spindle Transmission X, Y Rack & Pinion Drive, Z Ball Screw Drive Spinlde Speed 0-24000rpm Driving System 850W Japan Yaskawa Inverter 11kw Taiwan Delta Inverter Table Surface 9 PCS Vacuum Zone Collect ISO30 Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China

Product Description

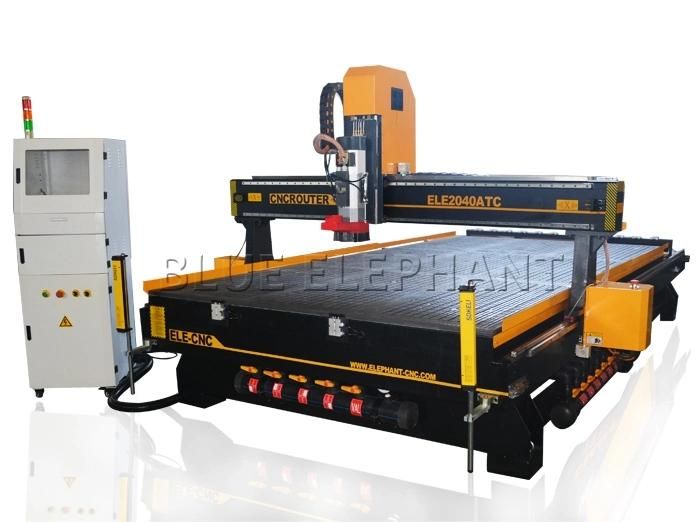

2040 Atc CNC Router for Computer Cabinet Making Computer Cabinet Making Machine

Advantage:

1.2000*4000*300mm working area,High Z axis travel,easy to process material.

2.9kw Italy HSD air cooling spindle,top brand in the world,strong power,high working speed.

3.Vacuum working table,9 zones,help to fix the material, increase the utilization rate

4.New type big welded steel tube machine body

5.Positioning cylinder 6 pcs to fix the material

6.Computer control cabinet with traffic light

7.Double homing sensor on the Bridge for Eding CNC

Features:

1. Effectiveworkingarea 2000*4000mm
2. 9kw Italy HSD ATC air cooling spindle,24000 rpm
3. 11kw Taiwan Delta inverter
4. Japan 850W YASKAWA servo motors and 1kw drivers
5. HIWIN#25 linear square guide way forX,Y,Z axis , TaiwanTBI ball screw for Z axis
6. 12 liner tool storage

7. Stronger support for the bridge

8. Automatic Oil Lubrication System

9. Japan Shimpo reducer

10.2 sets 7.5Kw water circulation vacuum pump

11.Voltage:400V,3phase,50HZ(Optional)

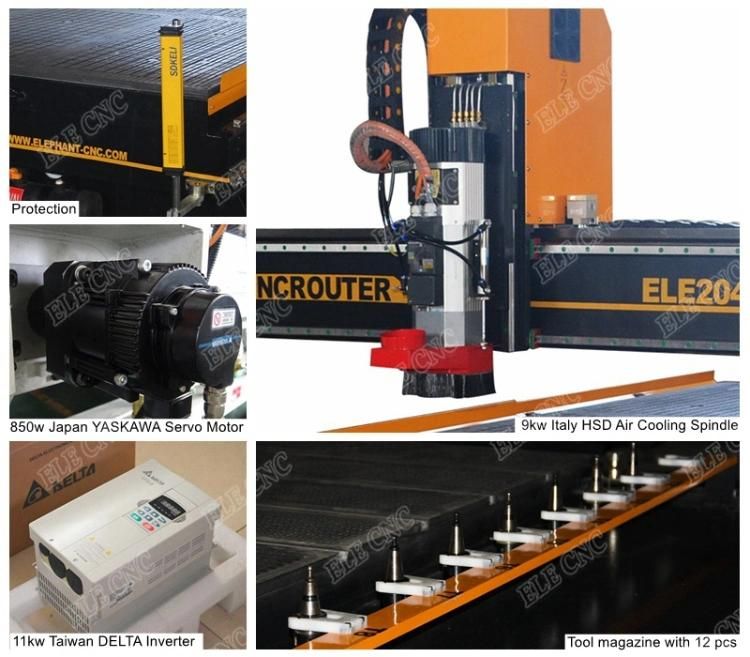

Main parts:



Parameters:

Model	ELE 2040ATC
X,Y,Z Working Area	2000*4000*300mm effective working area
Table Surface	Vacuum working table,9 zones
Frame	Thicken steel Square Tube Heavy structure
X, Y Structure	Gear and rack transmission, Taiwan HIWIN Linear Rail
Z Structure	Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
Spindle Power	9kw Italy HSD ATC air cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	850w Japan YASKAWA servo motor and driver
Inverter	11kw Taiwan DELTA
Command Language	G Code
Computer Interface	USB interface
Collet	ISO30
Working Voltage	AC400V/50/60Hz,3PH (Option: 220V)
Software Compatibility	Type 3 /Artcam /Ucancam
Spare part	1 piece Power supply 3pcs Tool holder
Accessories	Japan Shimpo reducer Mach3 wireless handwheels Dusthood for spindle Double homing sensor on the Bridge for Eding CNC 2 sets 7.5Kw water circulation vacuum pump

Application & samples :

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,

craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

crystal word making, blaster molding, and other advertising materials derivatives making.

3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as

artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4.relief sculpture and 3D engraving

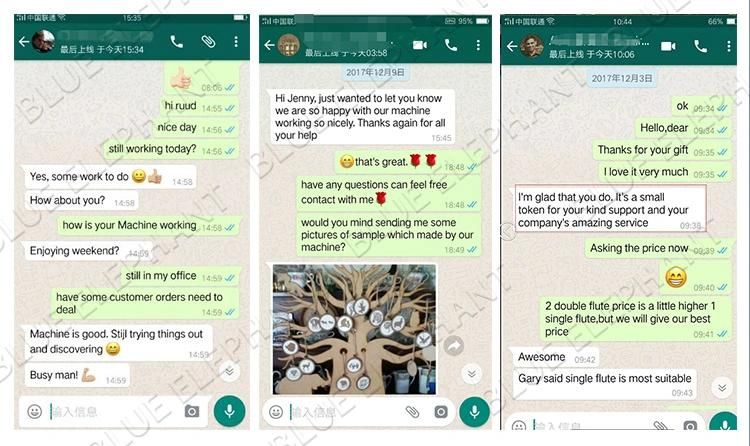

Customers Feedback


FAQ

 1, What payment you accept?

1,T/T inadvance   2.western union  3 .by  ESCROW . 4 by paypal .

2,I did not imported before , how should I do ?

You only need pay to us , we will arrange all the things to you and teach you how to do.We will prepare all the documents to you,

you don't need worry , because we know what you need .

3, Do you Arrange the ship For us?

yes ,for FOB or CIF price, we will arrange shipment for you.

4,How about the documents after shipment?

We' ll send all original documents to you by DHL, for example :the  Packing List, Commercial Invoice, B/L,

and other certificates as required by clients.

5, How about the packing?

It's packaged by plywood case.

Our Factory:



Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
 We have our R & D department, Quality control department, and after sale & service department.
 Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
 We had got CE and ISO9001 certification always offer  best  quality  machine.
 Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
 Just looking forward to service every customer, like you.
