Pneumatic Multi Spindles CNC Router 1325 2030 2040 5 Heads Woodworking CNC Machine with Air Cooling Heavy Duty for Cabinet Door
Shandong Lintianzhiyuan CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
- Product Keyword：Multiheads Pneumatic Atc CNC Router
- Working Area：1300*2500*200mm
Base Info
- Model NO.：LT-1325
- Spindle：7.5kw*2+3.5kw*3 Air Cooling Spindle*4
- Control System：Syntec FC Control System
- Table Surface：Vacuum Table with 7.5kw Vacuum Pump
- Guide Rail：Square Linear Guide Rail 25#
- Transmission：X, Y Axis by Helical Gear Rack, Z Axis by Pneumati
- Motors and Drivers：Leadshine 1.3kw AC Servo Motor & Driver
- Bed Structure：Hickened Strong Steel Gantry with Steel Square Tub
- Inverter：Fuling Inverter
- Reducer：Japan Imported Shimpo Reducer
- Position Cylinder：X2+Y3 Position Cylinder
- Dust Collector：4.0kw Dual Bags Dust Collector
- Transport Package：Plywood Case
- Specification：3300*1950*1950mm
- Trademark：LINTCNC
- Origin：China
- HS Code：8465990000
- Production Capacity：400sets,Year
Description
Z axis structure: Taiwan TBI ballscrew 25mm, Taiwan Hiwin rail linear bearing 25mm(HGR)

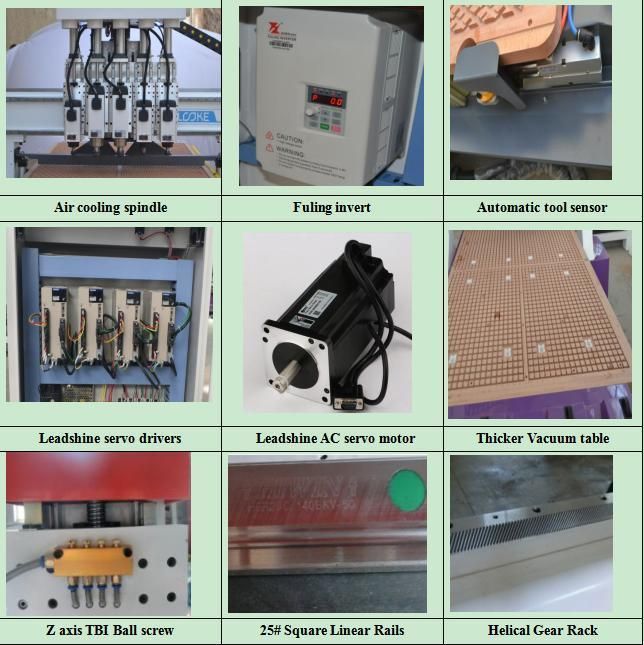

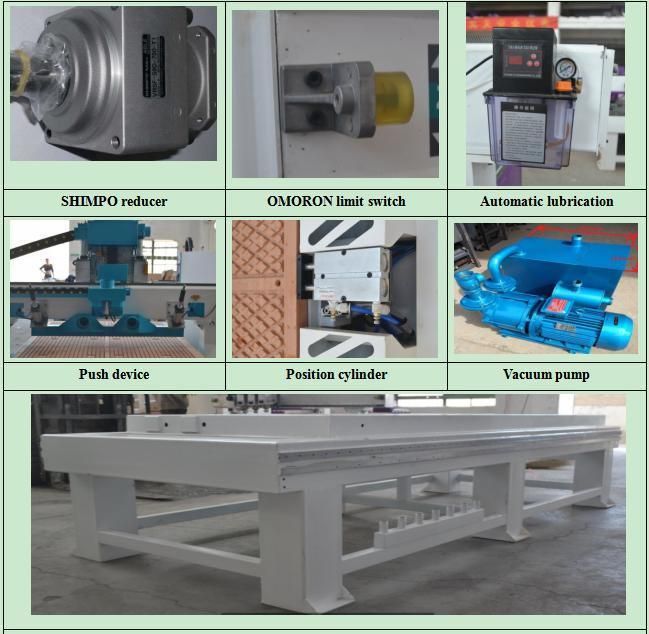

Main parts of the machine:
Performance feature:
1.Imported linear guide rail, double-row four columns ball bearings, huge bearing capacity, good moving stability,
long lifetime. Imported ball-screw, high precision.
2.Adopting high-precision gear rack transmission, faster working and high precision.
3.Equipped with USB of remote operation and DSP operating system, lever operation is very simple and advanced.
4.Be compatible with several CAD/CAM designing software, type3, ARTCAM, CASTMATE, UCANCAM etc.
5.Adopting the international advanced technology of vacuum absorption mesa, equipped with the strongly vacuum pump,
the six zones design can absorb the different area of the material strongly.
6.Adopting the stepper motor drives, Y axis adopts double motor drive to make the spindle engrave faster
Application:
1.Furniture Decoration industry:A large area flat plate engraving, wood, panel furniture carving, wood art murals,
wood cabinet doors carving.
2.Wood Products Processing: Sewing machine table,electrical counter table, sports equipment. Artwork :
Photo Frame, jewelry box.
3.Musical instrument industry: instrument three-dimensional surface engraving, shape cutting.
Packaging & Shipping
Our Services
After-sale service
1.Two years quality guaranty for the machine and online service everyday day, free technical support.
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Our staff can be sent to your company to install or adjust if necessary.
5.The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment.
1) This is the first time I use this kind of machine, is it easy operate?
There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Skype.
