• Model NO.：MF-E436PR. L
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Heating Power：1.8kw
• Feeding Motor Power：3.7kw
• Pre-Milling Motor Power：2.2kw*2
• Glue Spreading Motor Power：0.75kw
• End Trimming Motor Power：0.5kw*2
• Rough Trimming Motor Power：0.75kw*2
• Fine Trimming Motor Power：0.75kw*2
• Corner Rounding Motor Power：0.5kw*2
• Polishing Motor Power：0.37kw*2
• Air Pressure：0.8MPa
• Transport Package：Wooden Case
• Specification：15CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659400
• Production Capacity：100sets

Basic Info.

Model NO. MF-E436PR. L Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Heating Power 1.8kw Feeding Motor Power 3.7kw Pre-Milling Motor Power 2.2kw*2 Glue Spreading Motor Power 0.75kw End Trimming Motor Power 0.5kw*2 Rough Trimming Motor Power 0.75kw*2 Fine Trimming Motor Power 0.75kw*2 Corner Rounding Motor Power 0.5kw*2 Polishing Motor Power 0.37kw*2 Air Pressure 0.8MPa Transport Package Wooden Case Specification 15CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 100sets

Product Description

MF-E432PJ2.X Bevel Automatic Edge Banding Machine
Product details:

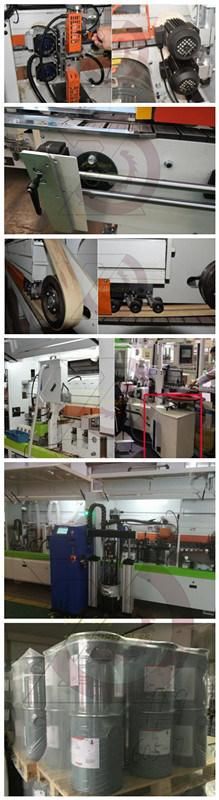

1. Pre-milling: double milling cutter is used to modify the corrugated traces, burr burr or non-vertical phenomenon after cutting the material of cutting plate saw, so as to achieve better edge sealing effect. It makes the edge bar and the board more close, the integrity and the aesthetics.
2. Board preheating: in winter, the board temperature is low, so that the side of the board is heated and the paste effect is better.

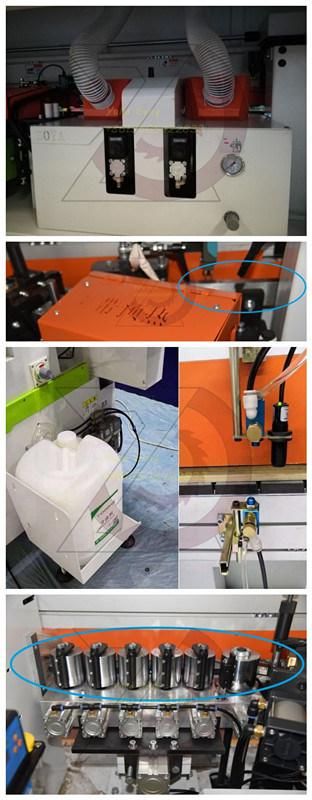

3. Separation agent: spray a kind of oily water mist on both sides of the plate before sealing the edge, and the excessive glue will overflow on the surface of the plate when isolating the glue. Use with the cleaning and polishing device at the back to make the edge sealing more perfect.
4. Preheat function of edge banding: the edge banding bar becomes hard at low temperature in cold weather, and the preheat function of edge banding makes the edge fastness better when it is preheated before the welt.
5. Glue: glue the side of the plate.
6. Glue cleaning function of six wheels: the market is generally 4 rounds of pressing and sticking, 6 rounds of different angles make the fitting more perfect, and multiple rounds of pressing and sticking more firmly. Among them, the large pressure wheel has applied for a patent design with anti-sealing veneer and the off-tracking function of thin belt belt under 0.6mm and the general structure of thick belt. The glue cleaning device prevents the glue on the side of the plate from being applied to the pressure roller when the sealing side band is not sealed, thus reducing the cupping time and improving the efficiency, making the sealing side more stable

7. Double guide end trimming: double guide rail is on the same side, the speed is increased by one third to 32 m/min to improve work efficiency, and the double guide rail is more stable and efficient.
8. Roughtrimming: to repair the extra edge of the plate to fine motor to reduce the burden, thick edge sealing effect is better.
9. Multiple automatic adjustment knifefine trimming: the main function is to fix a perfect arc on each side band. Automatic switch seals all kinds of thickness edge bars, with 5 thickness optional. 0.6mm, 0.8mm, 1mm, 1.5mm, 2.0mm. It makes operation more convenient and reduces the chance of machine instability caused by human operation.
10. Multiple automatic blade tracking: it mainly tracks the chamfering angles of four right angles of the sheet, and the main function of multi-position automatic tuning knife is to repair the perfect arc of each side band. Automatic change-over sealing of various thickness edge strips, tracking chamfer is provided with 3 thickness options, 1mm 1.5mm 2.0mm is not required to be adjusted manually, just freely switch on the computer touch screen. It makes operation more convenient and reduces the chance of machine instability caused by human operation.

11. Multiple automaticscraping: the main function is to scrape out the knife lines in the process of trimming, making the sealing side more perfect. 5 optional thickness, 0.6mm, 0.8mm, 1mm, 1.5mm, 2.0mm. No manual adjustment required, just freely switch on the computer touch screen. It makes operation more convenient and reduces the chance of machine instability caused by human operation.
12. Broken wire: it is used with scraped edge, and the sealing side wire of scraped edge is broken to reduce the chance of being sucked into the conveyor belt and the motor on the coil.
13. Flat scraping: removes excess glue from the surface of the sheet to make the polish easier to shine.
14. Cleaning agent: used with separator, spray clean oily water mist before polishing, to reduce the problem of glue line and plate pollution, and improve the sealing quality.
15. New tandem polishing mechanism: it moves back and forth to make the polishing more gentle, improve the time of the polishing wheel and reduce the cost of purchasing the polishing wheel. At the same time, the new mechanism solves the problem that the commonly used mechanism in the market is not easy to adjust and change the wheel in the wear of the polishing wheel. The new mechanism can be adjusted by simply turning the handwheel.

16. Push device for end head of narrow plate sealing: it is special for edge sealing of narrow plate, which can reduce the injury rate of manual putting plate being pressed by machine hand and solve the problem that the end head of narrow plate is not easy to be arranged and can not be normally closed.
17. Caterpillar conveying:It solves the technical problems of poor sealing quality and low sealing efficiency. High-speed tracks transmission device of the present invention includes racks, setting of supporting frame has a transmission crawler, through to the caterpillar and conveying roller transportation artifacts (plate), the conveying roller compaction in the plate on the table, so as to realize caterpillar positioning clamping, its contact with the plate area is large, so the positioning has better compression effect, for improving the quality of sealing side job provide a powerful guarantee; In addition, due to the complete contact between the conveying caterpillar belt and the conveying pressure wheel and the plate, the plate runs more smoothly in the sealing process, ensuring the sealing quality and improving the sealing efficiency, which can replace the roller type pressure material positioning in the existing technology.
