• Model NO.：DW-6090
• Customized：Customized
• Condition：New
• X,Y Working Area：600*900mm
• Z Working Area：>120mm
• Max Travel Speed：8000mm,Min
• Max Engraving Speed：6000mm,Min
• Resolution Ratio：0.01mm
• Command：G Code
• Surroundings for Software：Windows 98,2000
• Power：400W
• Working Voltage：AC220V,50Hz AC110V 60Hz
• Spindle Power：1.5kw-6kw
• Transport Package：Playwood Box
• Specification：900x600mm
• Trademark：DWIN
• Origin：Jinan City Shandong Province China
• HS Code：8465990000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DW-6090 Customized Customized Condition New X,Y Working Area 600*900mm Z Working Area >120mm Max Travel Speed 8000mm/Min Max Engraving Speed 6000mm/Min Resolution Ratio 0.01mm Command G Code Surroundings for Software Windows 98/2000 Power 400W Working Voltage AC220V/50Hz AC110V 60Hz Spindle Power 1.5kw-6kw Transport Package Playwood Box Specification 900x600mm Trademark DWIN Origin Jinan City Shandong Province China HS Code 8465990000 Production Capacity 50 Sets Per Month

Product Description

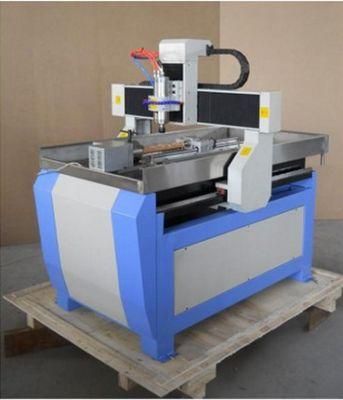

                         cnc 6090wood carving bedroom furniture machine
 1. Advanced Control System
Advanced DSP numerical control system and large liquid crystal display brings out much convenient operation and simpler maintenance.
Special intelligent pre-calculating system fully develops the potential of the engine and leads to high speed processing of smoother curves and straight lines simultaneously.

2,Large Memory and Perfect Data Transmission
Large internal memory of 128M is enough to simultaneously store more than 60 processing files which can be read freely.
Apply USB interface (plug and play) to communicate with computer under the system of win98/NT/2000/XP, which can instantly complete transmission.

3,Powerful Compatibility
Internationalized directives ensure that it is compatible with CAD / CAM software like type3/ artcam/ castmate/ proe/ UG/ Artcut etc, home and abroad.

4,Intelligent and Humanized Design
It is able to continue engraving when the electricity is cut off or the tool is broken.
Intelligent control of spindle makes it able to auto-start and auto-stop, which is more safely, convenient and power-saving.

5,Powerful Diamond Drill
Powerful frequency changing spindle enables the machine to cut organic glass of 30mm~50mm thick in one cut.

Suitable for Materials:
Engrave and cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum,brass, steel.

Samples show:



Specifications:

	4 axis cnc router
1	X,Y,Z Working Area	600x900x100mm
2	Table Size	1560X1050mm
3	X,Y,Z Traveling Positioning AccuraIT	±0.03/300mm
4	X,Y,Z repositioning Positioning AccuraIT	±0.02mm
5	Table Surface	T-slot Extrusions
6	Frame	Welding steed
7	X, Z Structure	Ball Screw
8	Y Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. power Consumption	0.8Kw
10	Max. Rapid Travel Rate	8000mm/min
11	Max. Working Speed	6000mm/min
12	Spindle Power Motor	2.2Kw self cooling spindle
13	Spindle Speed	0-24000RPM
14	Drive Motors	Stepper system
15	Working Voltage	AC220V/50/60Hz
16	Command Language	G code
17	Operating System	DSP System  (Option:Mach3 PC Software)
18	Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER16
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3 software, Ucancam software,  (Option: Artcam software)
23	Running Environment	Temperature: 0°C~45°C  Relative humidity: 30%~75%
24	Packing Size	1710 x 1250 x 1585mm
25	Net Weight	180KG
26	Gross Weight	272KG

Wide range of application:
Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model,  souvenir ,badge, electric circuitry and carpentry field.

After sales service:
1.18 months of quality assurance, the main parts of the machine (not including supplies) free replacement when the problem occurred in the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
