• Model NO.：FX1218
• Certification：CE
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：Whole Life
• Working Area：1200*1800mm
• Spindle Power：2.2kw
• Controller：DSP or Ncstudio
• Transmission：Ball Screw
• Transport Package：Plywood
• Specification：1218
• Trademark：FLYING
• Origin：China
• HS Code：84619090
• Production Capacity：200PC,Month

Basic Info.

Model NO. FX1218 Certification CE Customized Customized Condition New Color Customized After-sales Service Whole Life Working Area 1200*1800mm Spindle Power 2.2kw Controller DSP or Ncstudio Transmission Ball Screw Transport Package Plywood Specification 1218 Trademark FLYING Origin China HS Code 84619090 Production Capacity 200PC/Month

Product Description

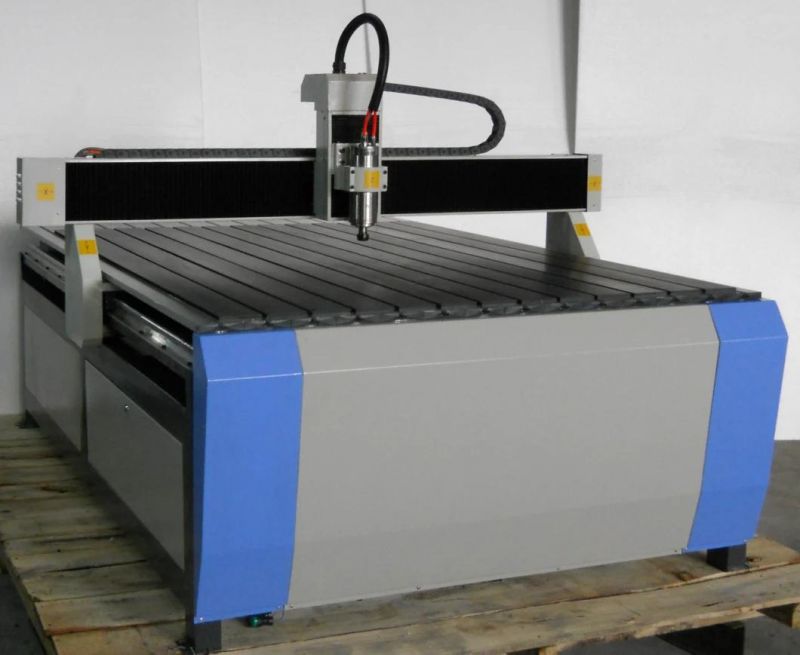

Precision CNC Engraver for Wood Acrylic (FX1218)

Features:
1. This CNC Router machine adopts advanced DSP numerical control system. It has the characteristic of operating with the handle, large screen display, convenient operation and easy maintenance. It is designed with more human nature.
2. The adoption of the imported linear guide and German high precision ballsrew ensure the precision and long life of the equipment.
3. The adoption of memory mode to the point break, ensure the continuous processing if we meet any accidents (when the blade is broken or postpone situation)
4. Unique saving mode of original points for many files.
5. It has 128M saving capacity. It can store many files simultaneously and read at random.
6. Gantry movement, Strong table and more durable. It will not distort after long time use. The position precision is much better.
7. It has compatible CAD/CAM software such as Type 3, Artcam, Wentai, Coredraw etc.

Specifications:
1) X, Y axis working area: 1, 200 X 1, 800mm
2) Z axis working area: >100mm
3) Table size: 1, 340 X 2, 020mm
4) Max. Speed: 0 - 4, 000mm/min
5) Max. Working speed: 0 - 3, 000mm/min
6) Working delicacy: 0.02mm
7) Reposition accuracy: 0.01mm
8) Max. Feeding height: 110mm
9) Command: G code, u00, mmg, plt
10) Software: Type3 software, Wentai software, Artcam software
11) Max. Power consumption: 3.1kW
12) Spindle: 2.2kW variable speed, water cooled motor
13) Spindle speed: 24, 000rpm
14) Work type: Stepper
15) Working voltage: AC 220V, 50/60Hz
16) Manner of receiving data: USB
17) Running circumstance temperature: 0 - 45
18) Relative humidity: 30% - 75%
19) Machine Size: 2240*1530*1200mm
20) Net Weight: 320kg
