• Certification：CE, ISO
• Customized：Non-Customized
• Condition：New
• Color：Iron Grey
• Transport Package：OEM
• Specification：CE Standard
• Trademark：SAMACH
• Origin：China
• HS Code：84659902
• Production Capacity：90sets,Month

Basic Info.

Certification CE, ISO Customized Non-Customized Condition New Color Iron Grey Transport Package OEM Specification CE Standard Trademark SAMACH Origin China HS Code 84659902 Production Capacity 90sets/Month

Product Description

Solid Wood Panel Board CNC Cut-off Saw Rmj601


CNC Cut-off Saw Specifications:

Specifications&models	RMJ601	RMJ602	RMJ603
Cutting thickness	10-120mm	200mm(Thickness:200mm)	40-80mm
Cutting width	30-200mm	450mm(Thickness:100mm)	30-230mm
Cutting length	4000mm	4000mm	4000mm
Max.cutting cross sectional area	120×120/100×200mm	-	250×30mm
Feeding speed	5-30m/min		60m/min
Cutting speed	40pcs/min		60pcs/min
Saw blade size	Ф450mm	Ф620mm	H450×D30
Dimension of saw shaft	Ф30mm	Ф30mm	Ф30mm
Saw sprindle sped	3500rpm	1850rpm	3000rpm
Feeding servo motor	750W	750W	750W
Saw motor	7.5kw	7.5kw	7.5kw
Pressure	5-6kg/cm²	5-6kg/cm²	5-6kg/cm²
Dust collecting port	Ф100mm×2	Ф100mm×2	Ф100mm×1
Overall Size	9000×1200×1300mm	9000×1225×1500mm	6750×1450×1800mm
Sawing error	<1mm	<1mm	<1mm
Weight	900kg	1200kg	1000kg
Cylinder stroke	250mm	250mm	250mm

 Features:

1. Touch screen operation, simple and efficient.
2. The machine will infeed and cut automatically after input the data.
3. It is available to input 10 sets of data each time.
4. The optimizing identification function is optional.

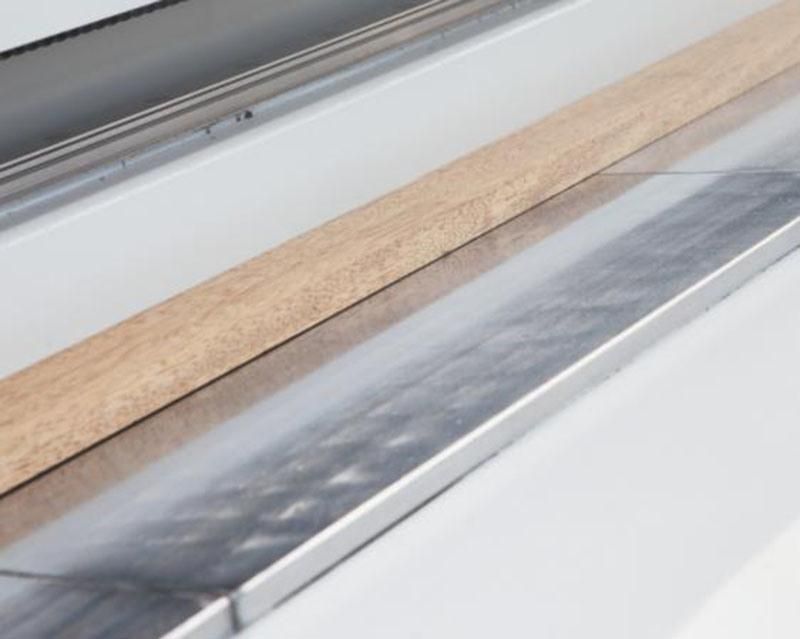

5. 30 degrees tilting table design is for the purpose of keeping the conveyor belt guide way stable.

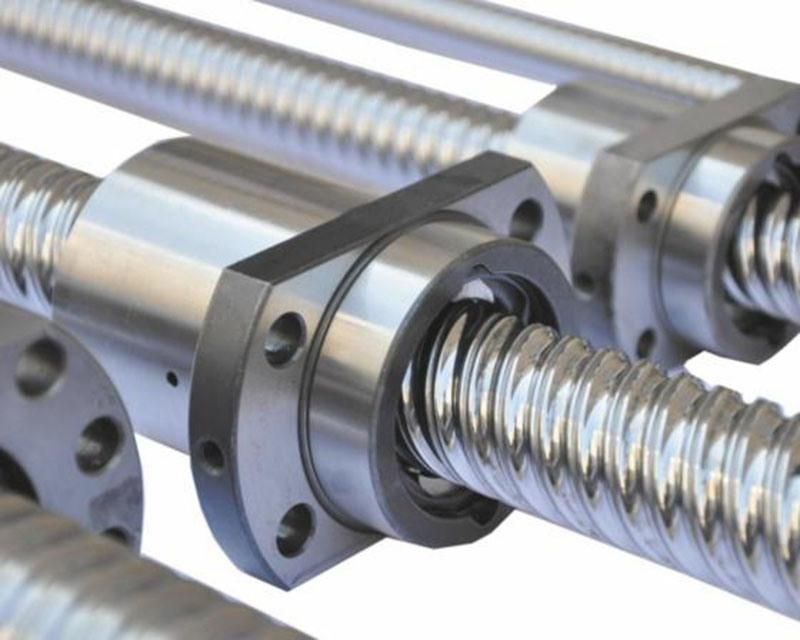

6. Adopting Taiwan TBI high precision screw
7. degrees tilting table
8. Cylinder device could press accurately

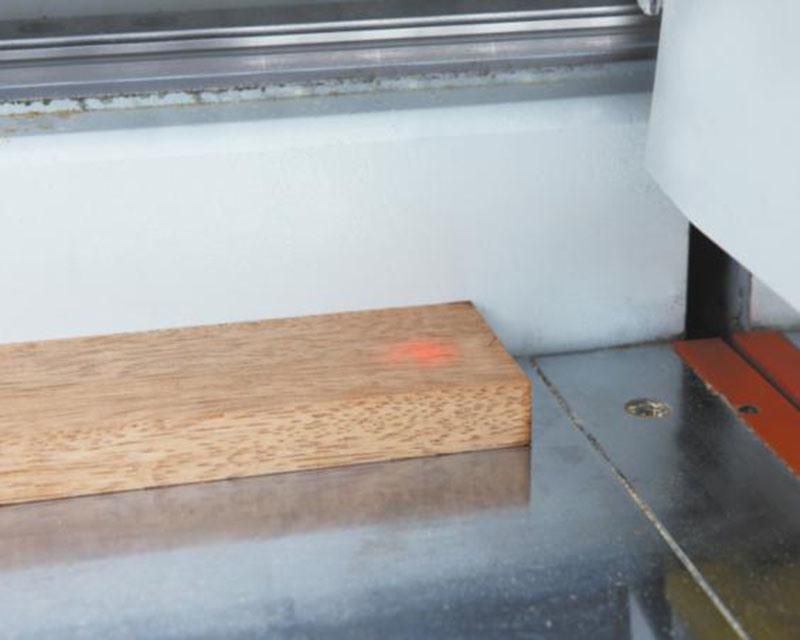

9. Infrared calibration device to make the real-time detection.

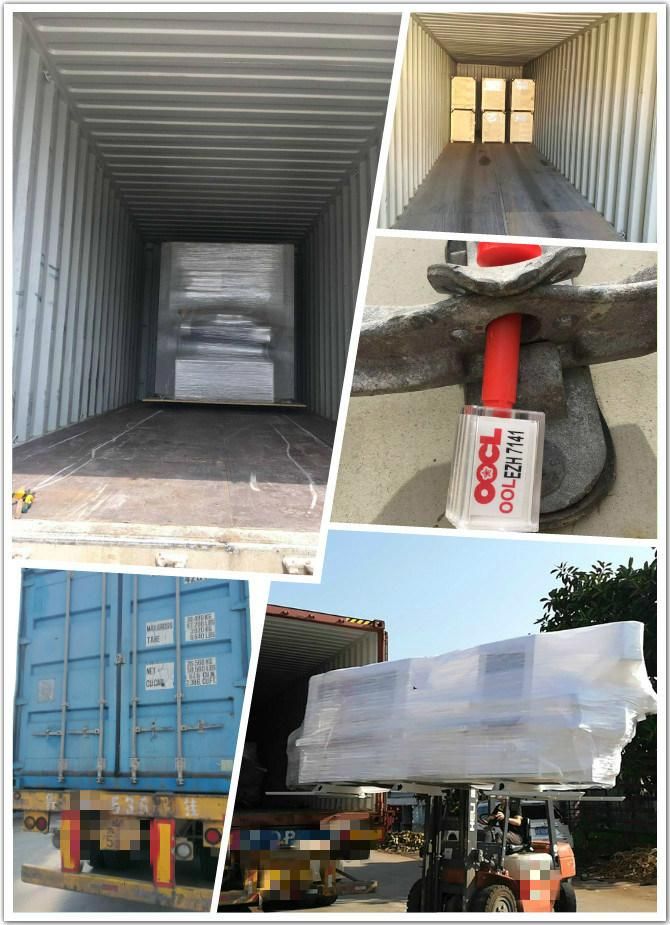

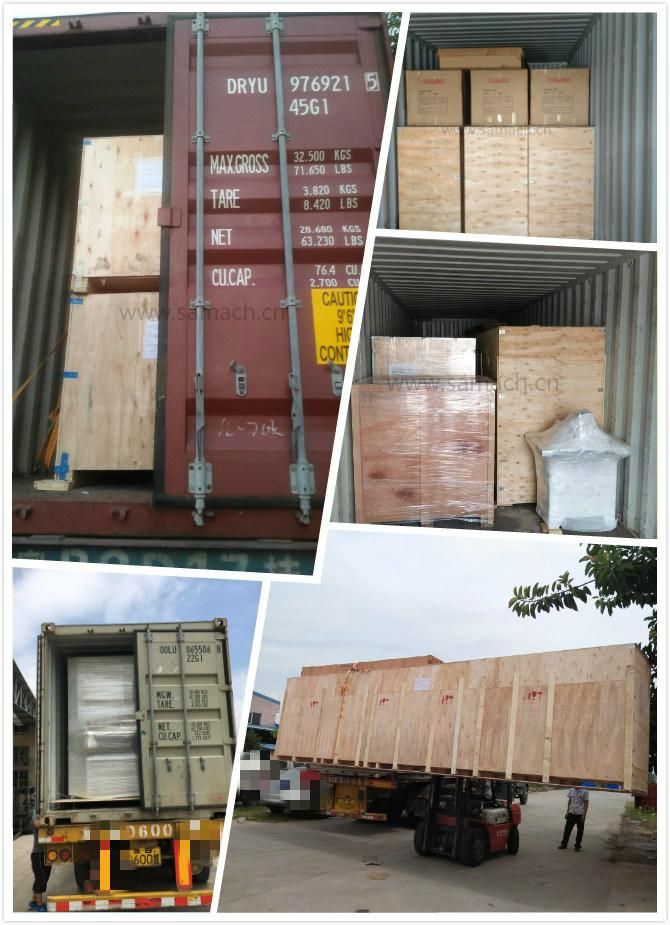

Delivery of Woodworking Machines

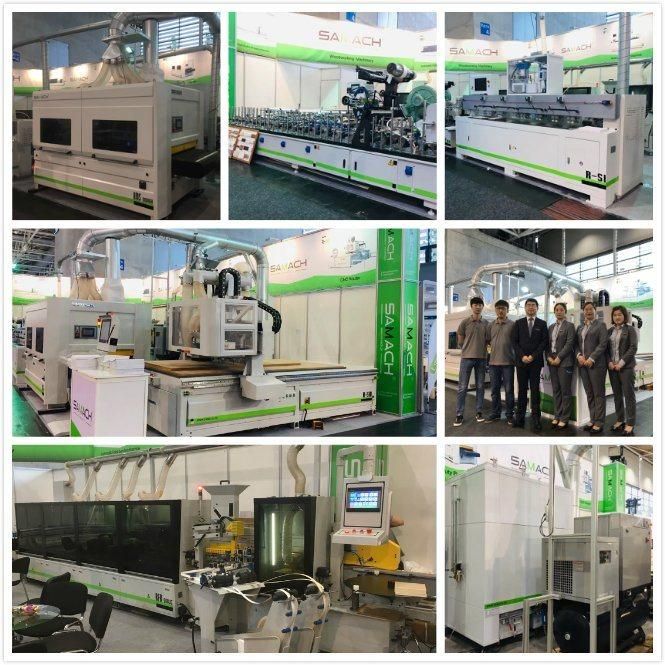

Exhibition, LIGNA in German, World Top Level Exhibition


Samach'S Service and dominants:

1: Professional team of techniques study and research, guarantee the Machine
latest and improving efficiency.

2.Knowing China and world markets well, offer professional soluttions.

3.Fast market reaction,  guarantee our partners always in front edge.

4.Supeiror Guarantees,quality of our machine and sell-after service.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partner.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time!
