• Model NO.：470
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Kingoro Blue
• Capacity：0.8-1ton,H
• Power：55kw
• Model：Szlh470
• Material：Steel
• Transport Package：Export Package
• Specification：2000x1550x1680
• Trademark：Kingoro
• Origin：China
• HS Code：8474802000
• Production Capacity：1000PCS Per Year

Basic Info.

Model NO. 470 Warranty 1 Year Customized Customized Condition New Color Kingoro Blue Capacity 0.8-1ton/H Power 55kw Model Szlh470 Material Steel Transport Package Export Package Specification 2000x1550x1680 Trademark Kingoro Origin China HS Code 8474802000 Production Capacity 1000PCS Per Year

Product Description

Product description:

Vertical Ring Die Pellet Mills, have absorbed the quintessence of pellet mills in both domestic and international market, adopt "double-layer die" as the unique structure;Rollers are made of abrasion-proof alloy steel,improving the using lifetime of spare parts greatly;For the drive parts,the grease is filtrated automatically lubricated properly.Special design,rational structure,low power consumption,high efficiency,durable use,supplying the blank of vertical feeding of ring-die pellet mill at home,reach the international advanced level.Specialized for biomass pellets making with crushed powder of materials like Wood Chips,Branches,Tree Trunk,Barks,Plant Waste, Crop Straw,Ricehusk,Peanut shells,Bamboo and Palm fiber, etc.In the ring die pellet mill, there are radial slot throughout the die. Powder is fed into the inside of the die and spreaders evenly distribute the powder. Two rollers then compress the powder through the die holes. Two cutters are used to cut the pellets free from the outside of the die. Pellet mill used to produce animal feed, wood pellets, and fuel pellets for use in a pellet stove. Which is widely adopted in commercial and large scaleproduction lines.

Advantages:
1.Vertical feeding, directly in pelletizing room, Die is static, rollers rotate; material are evenly distributed around pelletizing room because of centrifugal force, no block.

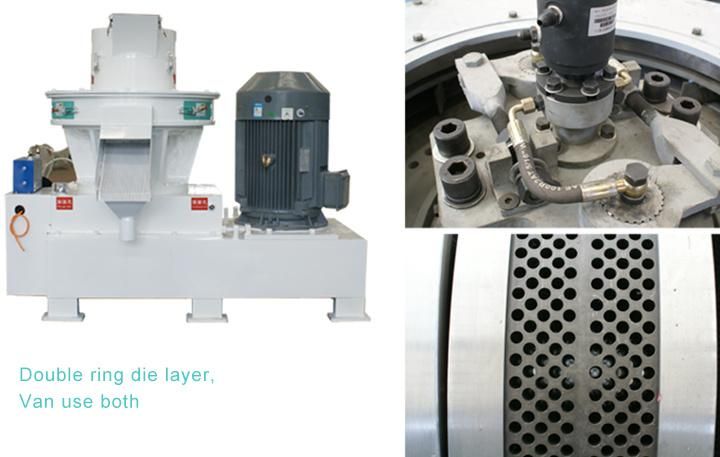

2.Double-layer die. Two layers both can be used for reduce the cost. High efficiency and save energy. Pelletizing room is also used for cooling, more options, and more gains.
3. Independent and frequent conversion discharge device can ensure the formation rate of pellet.
4.Ring die and vertical structure are good for cooling the pelletizing room.
5. Automatic oiling.
6.This pellet machine mainly used for making wood pellets , the pellets used for industry, boiler factories , the machine can be produce φ6.0,φ8.0,φ10.0,φ12.0 pellets.
7.The machine adopt imported SKF or NSK bearings, the motor brand is china famous  brand

Raw material: wood shaving, peanut husk, cotton stalk, wheat straw, rice straw, all kinds of hard wood etc.

Function: making wood sawdust into wood pellet








Inner Part:



Company development:

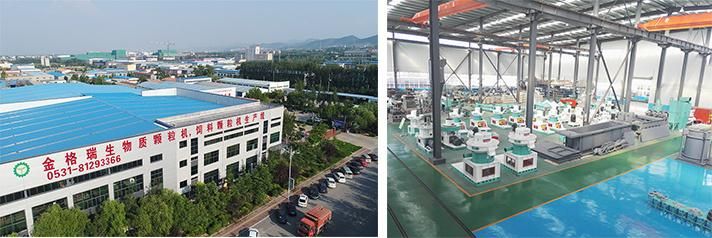

Factory Information:



Technical support
