• Name：Wood CNC Router
• Model：Sm-C1325
• Color：Machine Color We Can Do as Your Request
• Control System：Original Weihong Control System
• Table：Aluminum Profile T-Slot
• Motor：Delta Servo Motor 2kw
• Driver：Delta Servo 2kw
• Inverter：Delta
• Oil：Automatic Lubrication
• Spindle：1.5kw Water Cooling Spindle
• Rotary Axis Size：1500mm Length, Rotary Axis Diameter Is 150mm
• Control Box：Independent
• Precision：0.03mm
• Square Rail：Xy Axis Is Oblique Gear Rack, Z Axis Ballscrew
• Weight：3000kgs
• Transport Package：Standard Export Plywood Case Packing
• Specification：2800*3600*200mm
• Trademark：STARMACNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：80 Sets Per Month

NoDescriptionParameter1X,Y,Z Working Area2800x3600x200mm wood cnc router 2X,Y,Z Traveling Positioning Accuracy±0.03mm3X,Y,Z repositioning Accuracy ±0.02mm4Table SurfaceAluminum profile T-slot  with table moving5FrameThick steel tube welded heavy structure6X, Y axis transmissionTaiwan TBI ballscrew 7Z axis transmissionTaiwan TBI ballscrew8Max. Travalling speed 40000mm/min9Max. Working Speed20000mm/min10Spindle Power Motor1.5kw water cooling spindle(2.2kw optional)11Spindle speed0~24000rpm/min12Drive MotorsDelta servo 1000w13Working VoltageAC 380V Three Phase,50Hz14InverterDelta15Command LanguageG code16Operating SystemOriginal weihong (NK105,DSP A18 can option)17InterfaceUSB18Flash Memory128M( U Disk)19X,Y Resolution<0.01mm20Software CompatibilityArtcam,type3,Ucancam,etc21Running EnvironmentTemperature: 0ºC~45ºC
Relative humidity: 30%~75%
-------Machine Details-------

multi head machine 2836 wood cnc router for engraving the cylinder material
-------Application-------

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.

-------Packing and shipping-------
We have 3 layers package.
or the outside, we adopt free fumigation wood craft case.
In the middle, the machine is covered by foam, to protect the machine from shaking.
For the inside layer, the machine is covered by thickening plastic bag for waterproof.



multi head machine 2836 wood cnc router for engraving the cylinder material

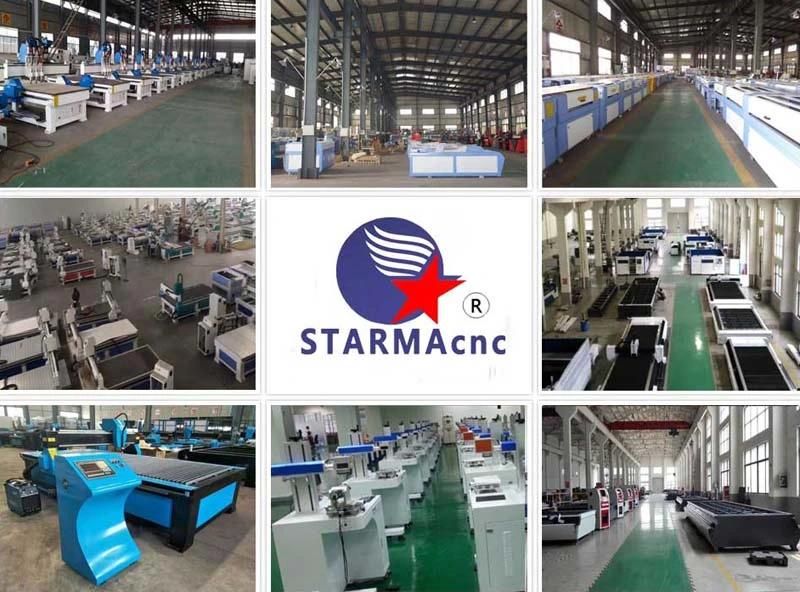

-------Company information-------
Jinan Starma Machinery Equipment Co.,Ltd. Build from 2010 years and lived in Jinan city, Shandong province,China. We are a professional and good reputation manufacturer of CNC router,wood cnc router, stone cnc router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine. To the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE UL FDA certificate.The aim of Jinan STARMA CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision cnc routers and cnc machines.


-------Customer visit-------


-------Our certificate & feedback from client-------



-------Our service-------
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here.
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is 12 months.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!

-------FAQ-------
1. What is the Payment Terms for this cnc router?

Re: Alibaba Trade Assurance ,T/T , Western Union, Paypal,L/C

2. How do you delivery the machine?

Re: By sea,By rail,By land

3. What about the delivery time?

Re: 12-18 working days for this wood cnc router .

4. What's your warranty?

Re: 1 year warranty for cnc router machine.

5. Do you offer clinical training?

Re: Yes. We can provide training in our factory or in your country.

6. Do we have the discount if buy more?

Re: We have favorable prices for agents. Welcome you to become our long-term business partner.
