Wood Furniture Pre Milling Automatic Edge Banding Machine

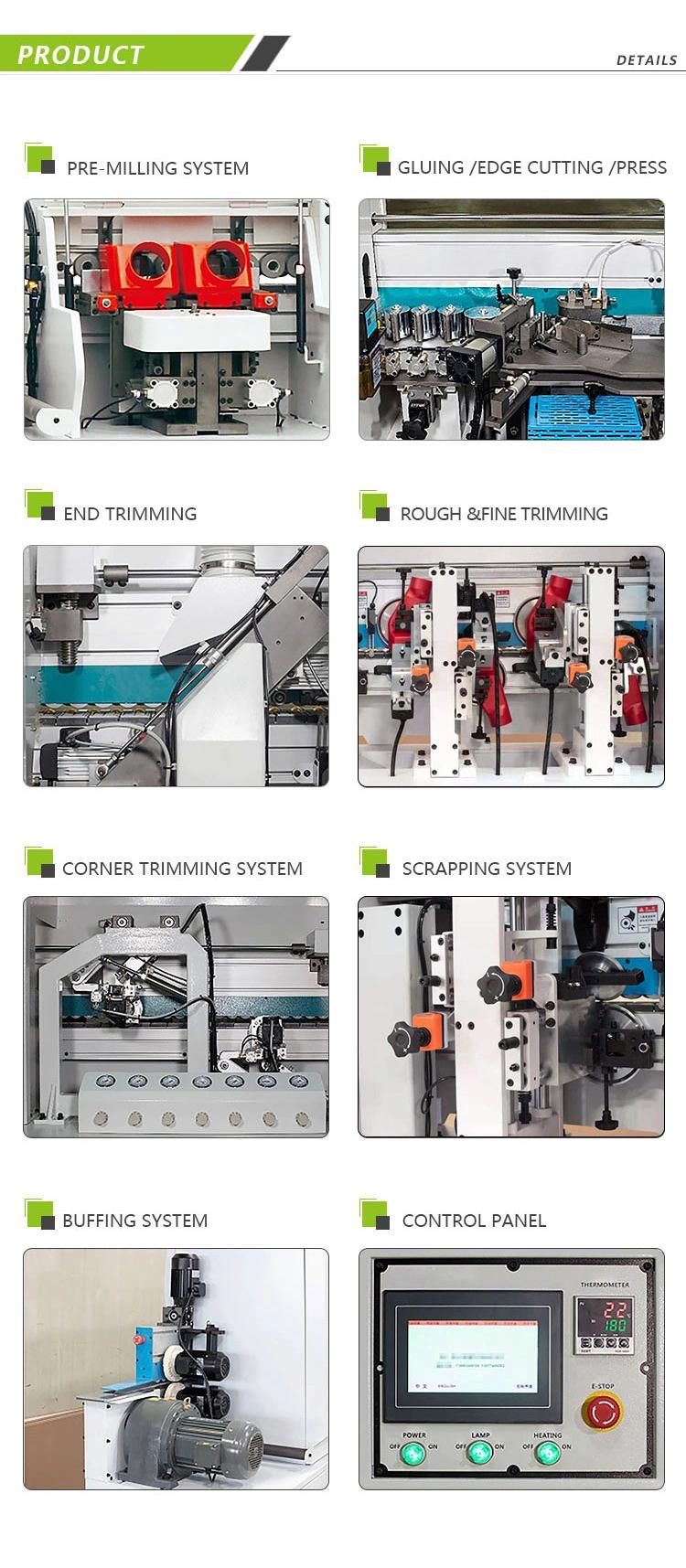

Qingdao Samac International Trading Co., Ltd.- Function：Pre Milling, Gluing, Edge Banding, Fine Trimming, Scraping, Buffing
- Type：Straight Line
- Edging thickness：0.4-3mm
- Automatic Grade：Automatic
- Panel Feeding Speed：15-23m,Min
- Certification：CE
Base Info
- Model NO.：RFE565JC
- Panel Thinkness：10-60mm
- Min.length panel：150mm
- Min.width panel：60mm
- Customized：Customized
- After-sales Service：1 Year
- Total Power：17.6kw
- Transport Package：Soft Packing & Plywood Packing
- Specification：RFE565JC
- Trademark：SAMACH
- Origin：China
- HS Code：84659900
- Production Capacity：80sets,Month
Description
Basic Info.
Model NO. RFE565JC Panel Thinkness 10-60mm Min.length panel 150mm Min.width panel 60mm Customized Customized After-sales Service 1 Year Total Power 17.6kw Transport Package Soft Packing & Plywood Packing Specification RFE565JC Trademark SAMACH Origin China HS Code 84659900 Production Capacity 80sets/MonthProduct Description

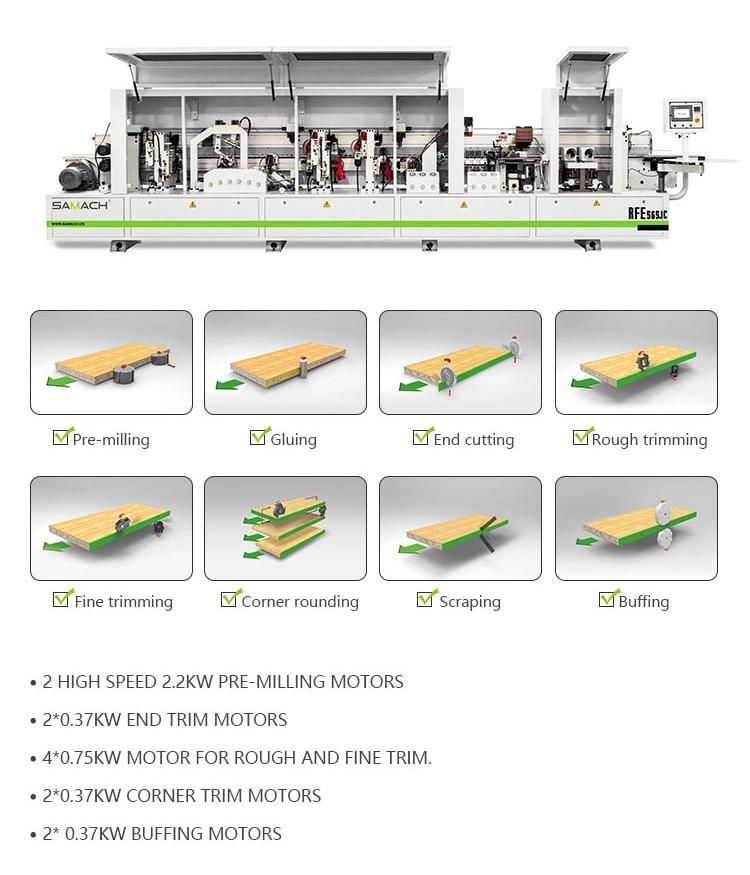

Automatic Edge Banding Machine RFE565JC
| Model | RFE565 | RFE565C | RFE565J | RFE565JC | RFE565JCFH |
| Panel length | ≥150mm | ≥150mm | ≥150mm | ≥150mm | ≥150mm |
| Panel width | ≥60mm | ≥60mm | ≥60mm | ≥60mm | ≥60mm |
| Panel thickness | 10-60mm | 10-60mm | 10-60mm | 10-60mm | 10-60mm |
| Edgeband thickness | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-3mm |
| Feeding speed | 15-23m/min | 15-23m/min | 15-23m/min | 15-23m/min | 15-23m/min |
| Total power | 10.8KW | 12.6KW | 16KW | 17.6kw | 20.6kw |
| Required air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Overall dimensions(L*W*H)mm | 4500*900*1600 | 5600*900*1600 | 5600*900*1600 | 6600*900*1600 | 7600*900*1600 |
| Weight | 1600kg | 1900kg | 2000kg | 2300kg | 2400kg |
