• Model NO.：Particle Board Production Line
• Colour：Customized
• Dimension：Accoding to Raw Material
• Transport Package：Plywood Pallet
• Specification：Customized
• Trademark：YIhe
• Origin：Linyi Shandong China
• Production Capacity：100 Pieces,Year

Basic Info.

Model NO. Particle Board Production Line Colour Customized Dimension Accoding to Raw Material Transport Package Plywood Pallet Specification Customized Trademark YIhe Origin Linyi Shandong China Production Capacity 100 Pieces/Year

Product Description

Full automatic particle board production line 30000-150000 CBM/YEAR

Production process:

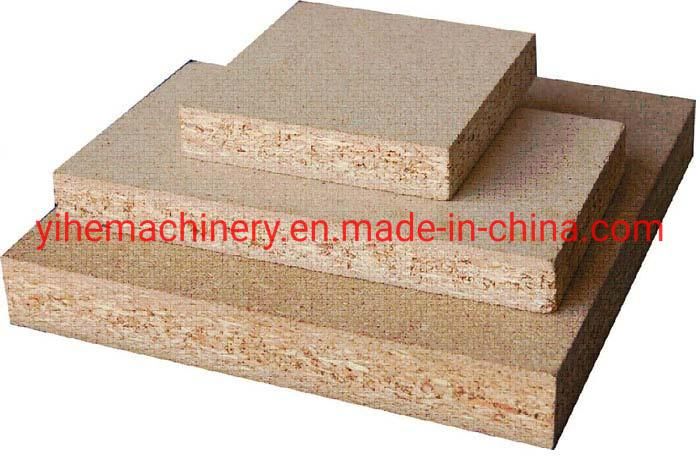

Particle board is made from small-diameteer wood, branches, wood residues and non-wood agricultural residues via Chip preparation, drying, spreading and hot press section. Finished boards can be used for furniture, building, packing, vehicle and decoration and lamination.









1.Chip preparation section
Raw material is processed into qualified chips by the drum chipper, then the chips are transported to the chip silo, and then feed to the knife-ring flaker by which the chips are turned to flakes, finally the flake stored in wet flake silo.


2. Drying and sifting section
The flakes discharged from the wet flake silo are conveyed to the rotary dryer or three-way dryer machine. After drying process, qualified core flakes are stored in core dried particles silo; oversize flakes are send to mill to be re-grinding, and transported to surface particles silo.

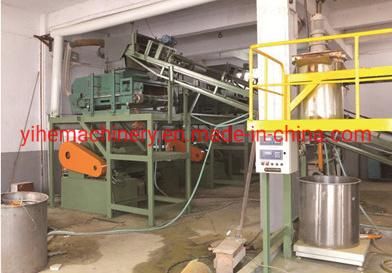

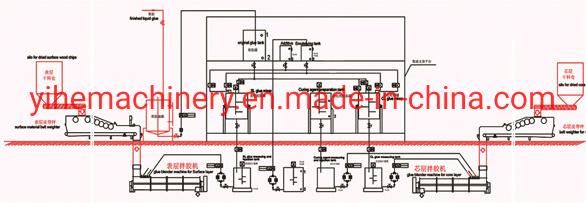

3. Glue regulating and blending section
After scaled, the core and surface flakes are to be effectively and uniformly mixed with qualified glue independently via face layer glue blender machine and core layer glue blender machine.

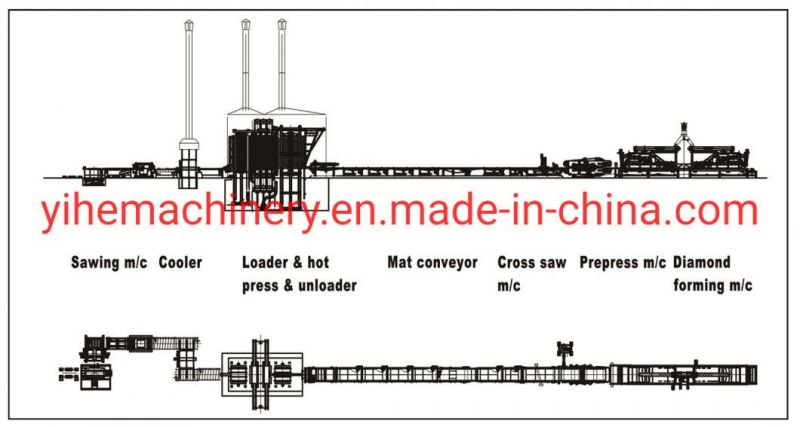

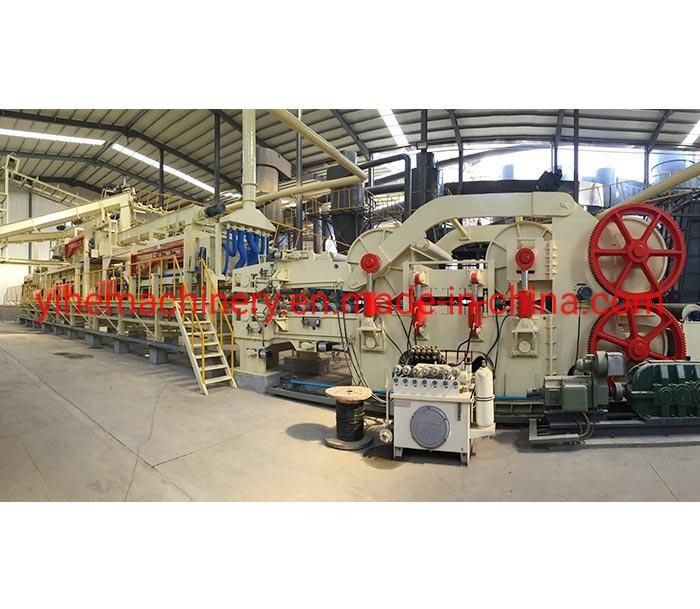

4. Forming and hot-pressing section

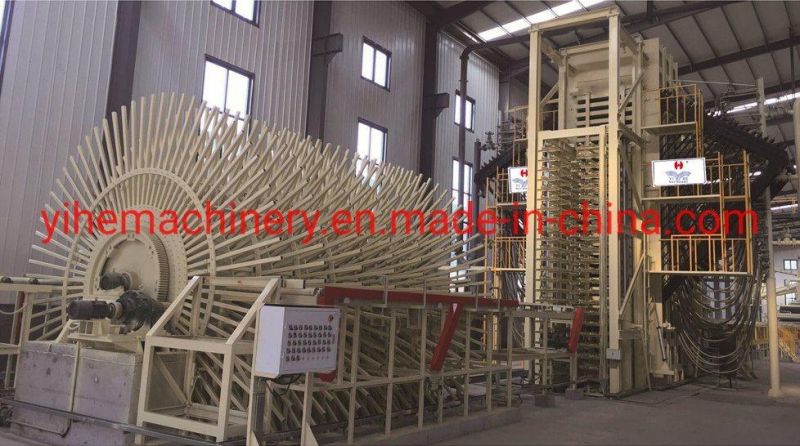

The surface and core flakes are sent into diamond-forming machine, and forming on the mat conveyor uniformly. After processes of metal remover, pre-press, lengthwise saw, cross saw, accelerate conveyor, scaling conveyor, storing conveyor and loading conveyor, mats are transported to carrier and then to hot press. Rough boards after pressing are pushed to unloader.



5. Cooling and sizing section
The rough board is conveyed to star-cooler for cooling, then the rough board goes through side trimming saw and become a qualified particle-board, stacked on the hydraulic lift.



6. Sanding Section
The board are sanded, checked and stored .




About us:

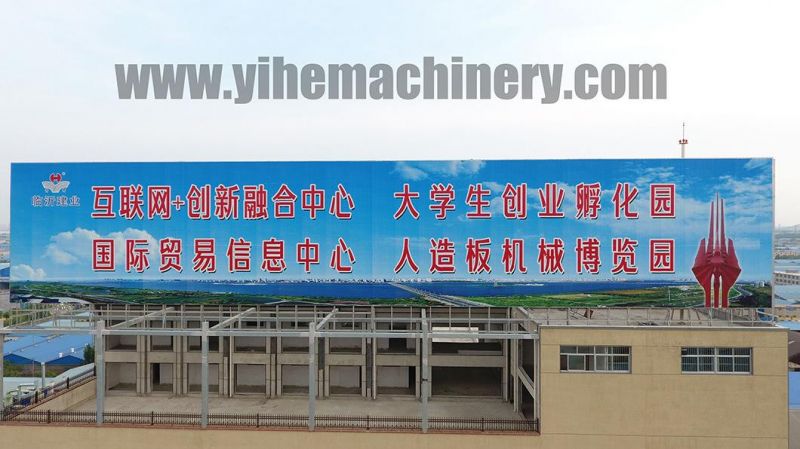

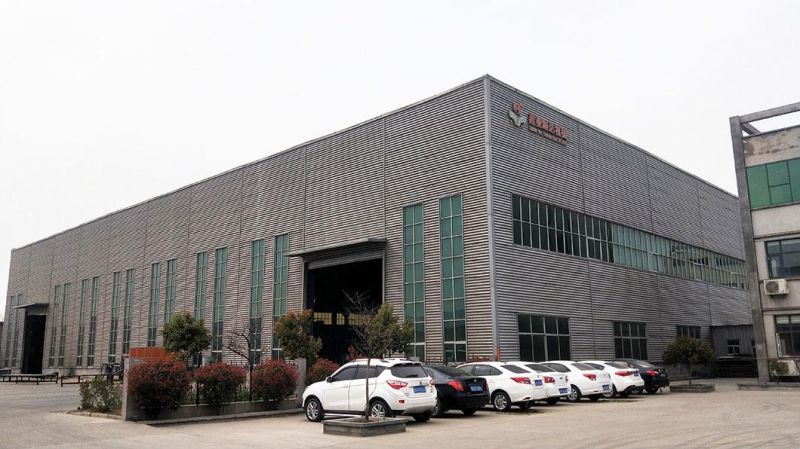

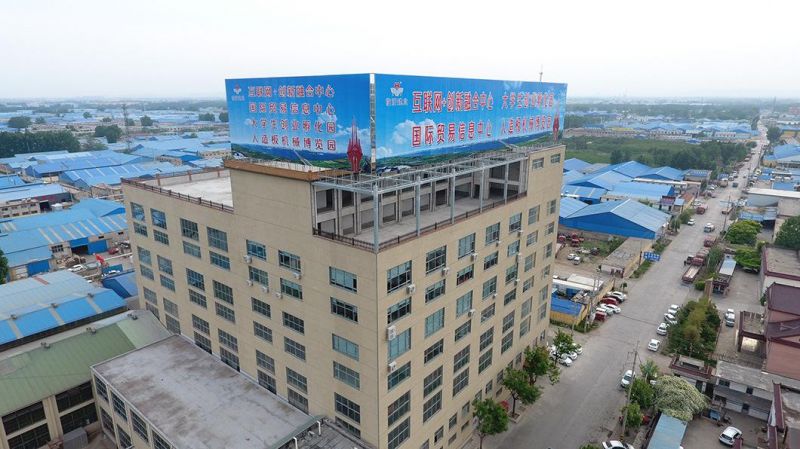

Shandong Linyi Jianye Shunda machinery CO.,LTD.
yihemachinery.en.made-in-china.com
 Shandong Linyi Jianye Shunda Machinery Co.,Ltd.(formerly Linyi Jianye Machinery Factory)founded in 1991,is a set of production,sales,service,reach and development as one of the multi-company and multi-category professional manufacturers of wood machinery, It is a modern management services company, under the construction industry Shunda Machinery Manufactur of Zhu Bao Branch,Jianye Rubber Products Factory and Jinze lmport and Export Co.,Ltd.






After more than 20 years of continuous development and growth, under the sincere cultivation of the vast number of customers and the joint efforts of all the employees of the company,Now we have the brand of "Yihe" and six categories of series.Glue spreader machine series,drying machine series,hot press machine series,sawing machine series,in the patchwork (scraper) series and rubber products series.Become more than 40 kinds of products of large and medium-sized wood machinery professional manufacturers.



  The company always adheres to the service aim of brand, high efficiency, honesty and pragmatism, and sincerely expects to cooperate, develop and progress with domestic and foreign businessmen. With sophisticated equipment, advanced processing technology and perfect testing methods, the company continuously improves its technical level, and strives to provide satisfactory professional and personalized wood-based panel machinery manufacturing and service for the vast majority of wood processing enterprises at home and abroad. Domestic and foreign businessmen are welcome to visit.
