• Model NO.：ZD400T
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Black
• Transport Package：Plywood Box
• Trademark：ZHONGDING
• Origin：China
• HS Code：84659100
• Production Capacity：200sets,Month

Basic Info.

Model NO. ZD400T Certification CE, ISO Customized Customized Condition New Color Black Transport Package Plywood Box Trademark ZHONGDING Origin China HS Code 84659100 Production Capacity 200sets/Month

Product Description

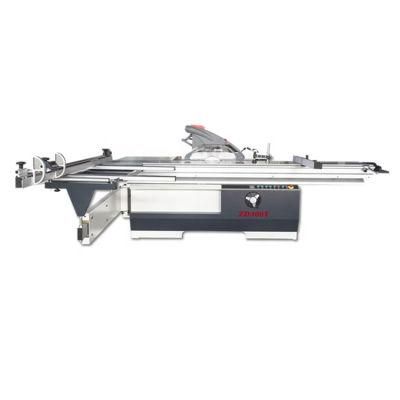

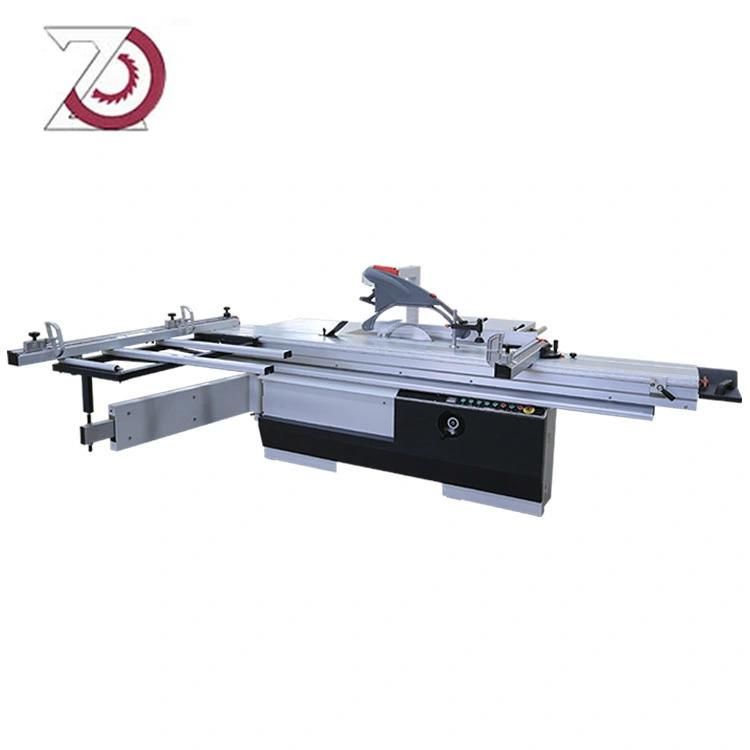

1. main picture

 main specifications:



Main saw motor power	5.5 KW
Scoring motor	1.1 KW
Main blade size	300mm(400mm for option)
Main blade tilt	0-45° & 90°
Main blade arbor	30mm

Main blade speed	4000/6000 RPM
Rip fence control	manual rip fence control
The depth of cut at 90 degrees	80mm(120mm for 400mm blade)
Distance saw blade to rip fence	1250 mm
Scoring blade arbor	20 mm
Scoring blade size	120 mm
Scoring blade speed	8000 RPM
Overall dimension	3250x3150x900 mm
Gross Weight	1100KGS

      2.Application& features:

1. It is suitable for all kinds of density boards, particle board, artificial board, PVC board, organic glass board, and solid wood board.
2. This state-of-the-art sliding table saw is designed to handle large sheet goods with the push-button panel, which is customized for more than 20,000 times pushed.
3. The sliding table glides along precision bearing rollers to provide smooth operation
4. This table saw can cut the tilting panels, tilting degree 0-45° & 90°
5. The electric lifting of two blades, more precision, and more labor and time saving
6. Digital readout of the cutting degree
7. Larger dust hood
8. Larger sliding table, more comfortable to cut larger panels and easy to operate
9. Larger main blades, the max cutting height is up to 120mm, allowing to cut thicker panels with 400mm blade.

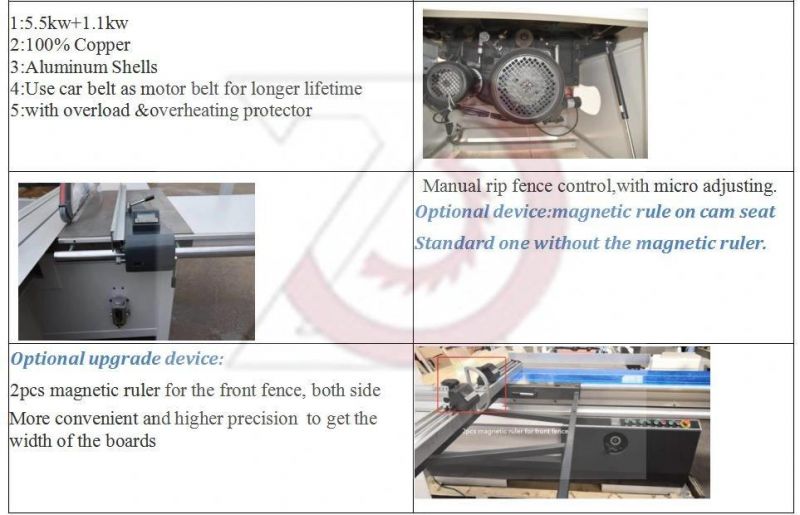

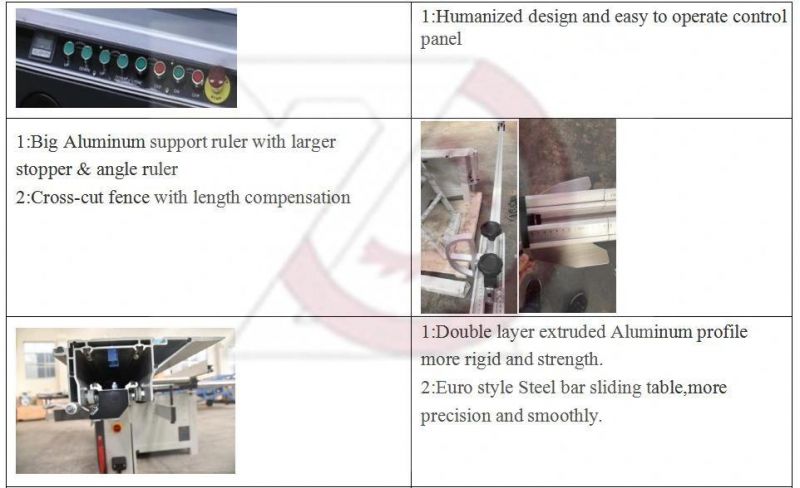

     3.Detail images






FAQ

What machine can you supply?
Our main products are computer panel saw, edge banding machine, cnc boring machine, cnc router machine.

What is the payment term?
T/T 30% in advance and balance before shipment, LC or by negotiation.

What is the delivery time?
Normal 380V voltage is 10-20 days, other voltage is 20-30 days.

What is the guarantee?
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong
 with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.
You will also get technical support and service all the lifetime.

What is the technical support?
1. Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual
3. Engineer available to service machinery overseas

What is the after sales services?
you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by email/fax/tel etc.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost 50USD/day

 For more details, please kindly contact Kelly  with below information or send an inquiry below!
