• Model NO.：ELECNC-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：AC380V,3pH,50Hz,(220V for Optional)
• X,Y,Z Working Area：1300X2500X160mm
• Spindle Power：3kw Water Cooling Spindle
• Spindle Speed：0-24000rpm
• Table Surface：T-Slot Table
• Motors：450b
• Drive：Eadshine Stepper Driver
• Inverter：3.7kw Fuling Inverter
• Control System：DSP B18 Control System
• Running Environment Temperature：0 - 45 Centigrade
• Transport Package：Standard Marine Export Plywood Cases
• Specification：1300x2500x300mm
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. ELECNC-1325 Customized Customized Condition New Color Customized Voltage AC380V/3pH/50Hz/(220V for Optional) X,Y,Z Working Area 1300X2500X160mm Spindle Power 3kw Water Cooling Spindle Spindle Speed 0-24000rpm Table Surface T-Slot Table Motors 450b Drive Eadshine Stepper Driver Inverter 3.7kw Fuling Inverter Control System DSP B18 Control System Running Environment Temperature 0 - 45 Centigrade Transport Package Standard Marine Export Plywood Cases Specification 1300x2500x300mm Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

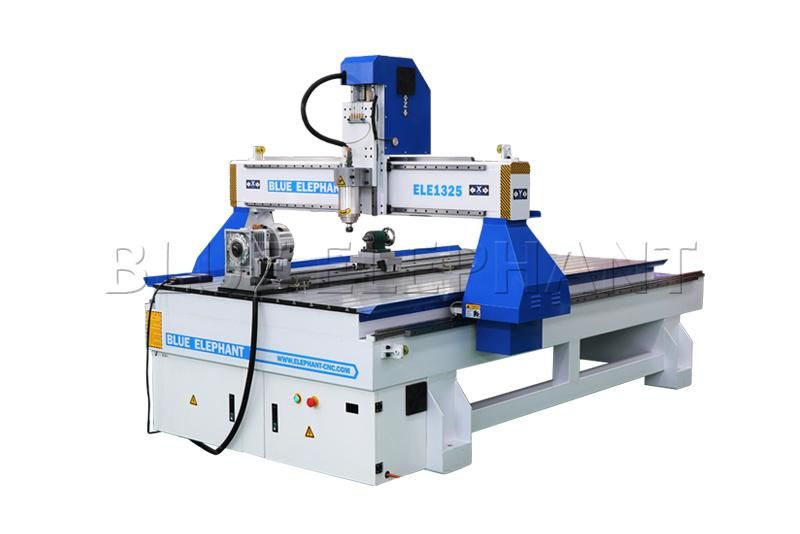

4 Axis CNC Wood Router 1325 CNC Engraving Machine Price Rotary Device Dia. 200mm, 3kw Spindle





Advantage:

1. Heavy duty thicker and bigger welded steel tube frame--more stronger
2. With one 200mm rotary device on the machine, it can moving convenient.
3. DSP B18 control system, can support 4 axis cnc router machine.
4. With one independent handle, very convenient for operation.

Parameter:

Description	Parameter
X,Y,Z Working Area	1300x2500x300mm
Table Surface	T-slot Table
Spindle	3kw Changsheng water cooling spindle
X, Y Structure	Taiwan PMI or ABBA 20#Linear guide
Z Structure	Taiwan TBI ball screw Transmission
Motor and driver	450Bstepper motor, leadshine stepper driver
Spindle Speed	0-24000RPM
Inverter	3.7kw Fuling Inverter
Command Language	G Code
Control System	DSP B18 control system
Computer Interface	USB
X,Y Resolution	<0.01mm
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Lubrication system	Manual lubrication system

PS:All the working area and specifications can be customized according to your requests.

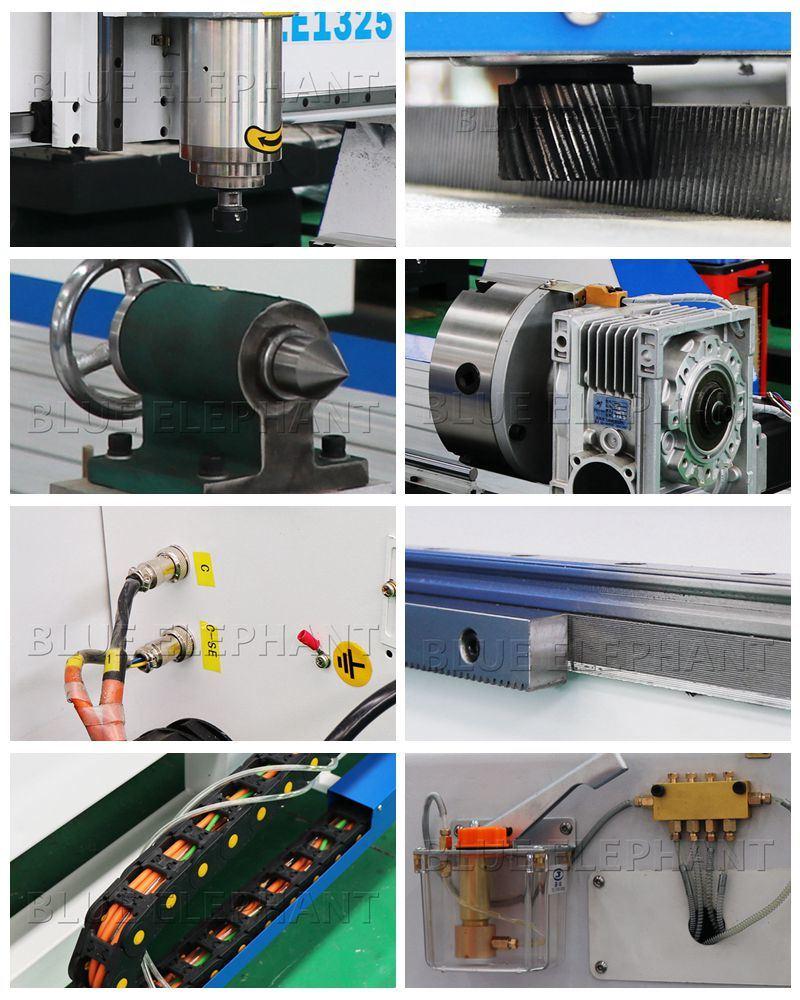

Product Detail:

Applicantion:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.

3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.

4.relief sculpture and 3D engraving

5.Cylindrical object

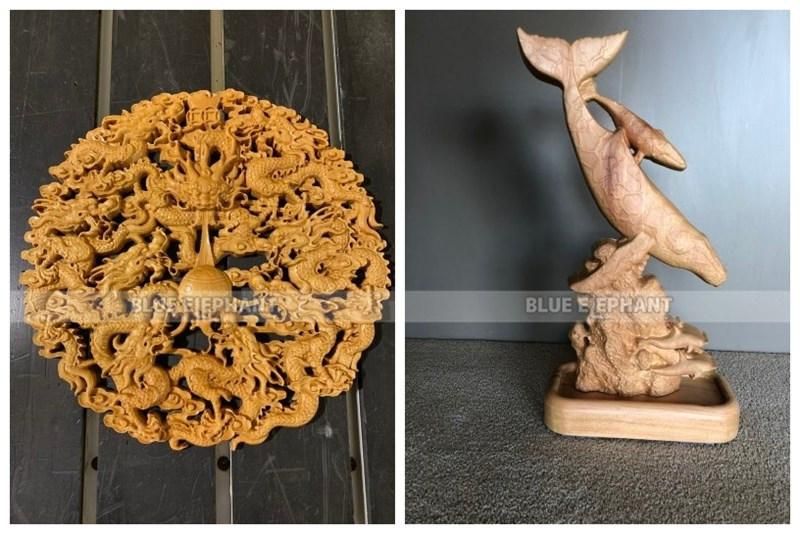

Samples show:

Our Servic

1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, and email.

5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.

6, We can record videos of operating the laser machine.

7, Free training course in our factory.

8.Machine will be adjusted before it is delivered, operation disk/CD was included.

Packaging &Delivery

Packaging Details: 1.Outside package:Standard marine export plywood case.
                               2.inner package:Stretch film and plastic film for humidity.
                               We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.

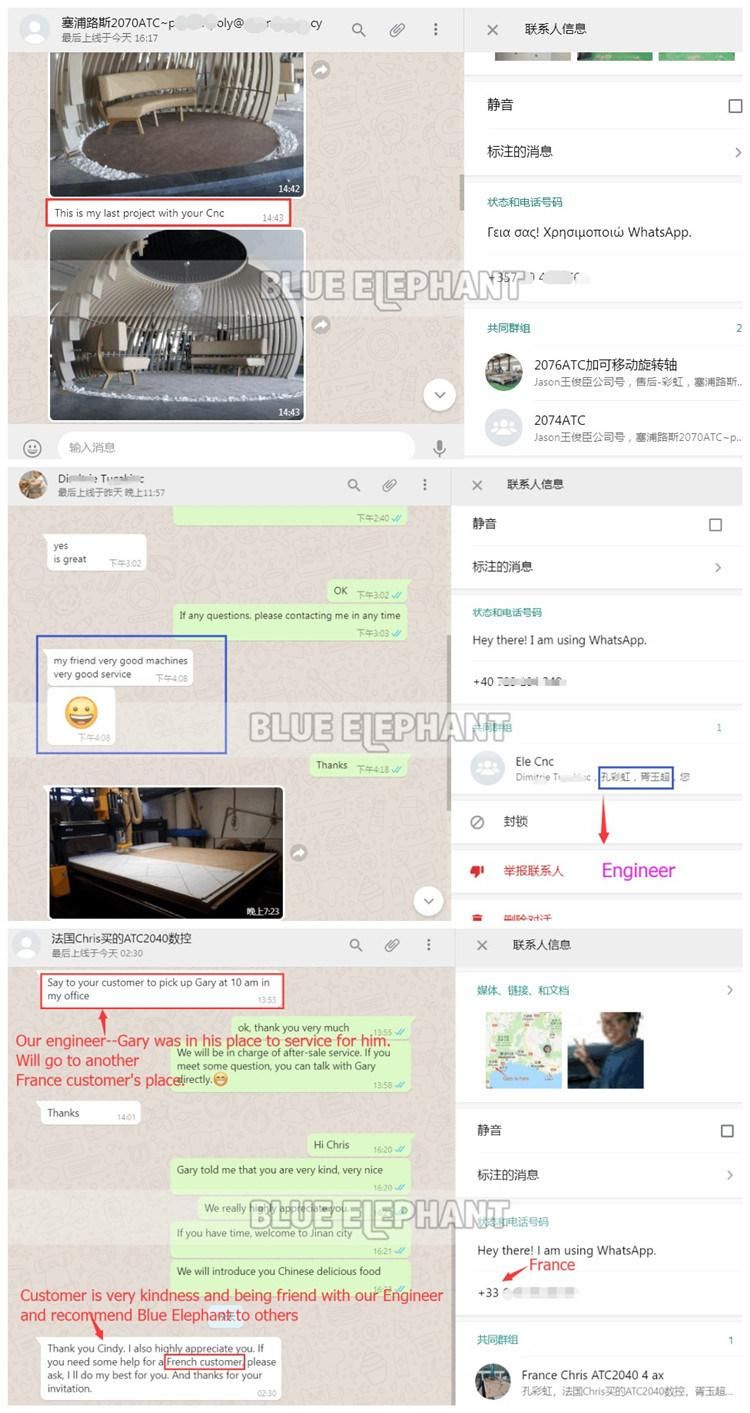

Customers Feedback

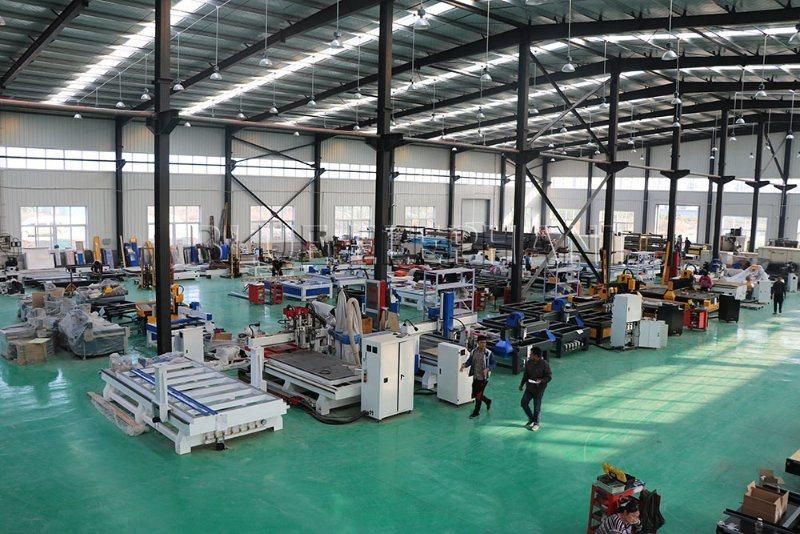

Our Factory

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.

 We have our R & D department, Quality control department, and after sale & service department.

 Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.

 We had got CE and ISO9001 certification always offer  best  quality  machine.

 Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

  Just looking forward to service every customer, like you.

Customer visiting



Contact us



Web: blueelephant-cnc.en.made-in-china.com
