1530 4 Axis CNC Router with a Rotary Device for Advertising Production Alucobond, PVC, Acrylic, Wood
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:Single-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Certification:CE, ISO, FDA
Base Info
- Model NO.:ELE 1530
- Customized:Customized
- Condition:New
- Color:Customized
- Voltage:AC380V,50,60Hz, 3pH (Option: 220V)
- Dimension(L*W*H):3200X2100X1980mm
- After-Sales Service Provided:Engineers Available to Service Machinery Overseas
- X,Y,Z Working Area:1500X3000*200mm
- Control System:Syntec 6MB 4 Axis Control System
- Inverter:Fuling 5.5kw
- Spindle Power:4.5kw China Hqd Air Cooling Spindle
- Spindle Speed:0-18000rpm
- Working Table:Vacuum & T-Slot
- Motor and Driver:4 Sets 850W Leadshine Servo Motor and Drivers
- Transport Package:Standard Export Wooden Case
- Specification:CE, ISO, SGS
- Trademark:BLUE ELEPHANT
- Origin:Shandong, China
- Production Capacity:200 Sets Per Month
Description
Items
Description
Working Area
1500x3000x600mm
Machine Frame
New type thicker and bigger heavy duty 10-12mm
Spindle
4.5KW china HQD air cooling spindle
4th axis
The spindle can rotate 180 degree
Cooling System
air cooling
Control system
SYNTEC 6MB 4 axis control system
Inverter
Fuling 5.5KW
Working table
T-slot working table
Transmission
X,Y-helical rack pinion,Z ball screw
Guide rail
Sweden SKF ABBA linear guide/Taiwan PMI,25mm
Ball screw
TBI ball screw from Taiwan
Drive system
4 sets 850W leadshine servo motor and drivers
Collet
ER25
Lubrication system
Automatic lubrication system for rails
X,Y,Z Traveling Positioning Accuracy
±0.02/300mm
Reposition accuracy
0.02mm
Spindle speed
24000rpm/min
Traveling speed
50m/min
Working speed
35m/min
E-stop
Two pieces at the gantry
Voltage
380V,3phase(220V)
Control software
ARTCAM 2018/Powermail/UG
Limited switch
Japan Omron limited switch
Rotary device
300mm diameter rotary device
Dust collector
3kw double bags dust collector
PS: All the working area and specifications can be customized according to your requests.
Application

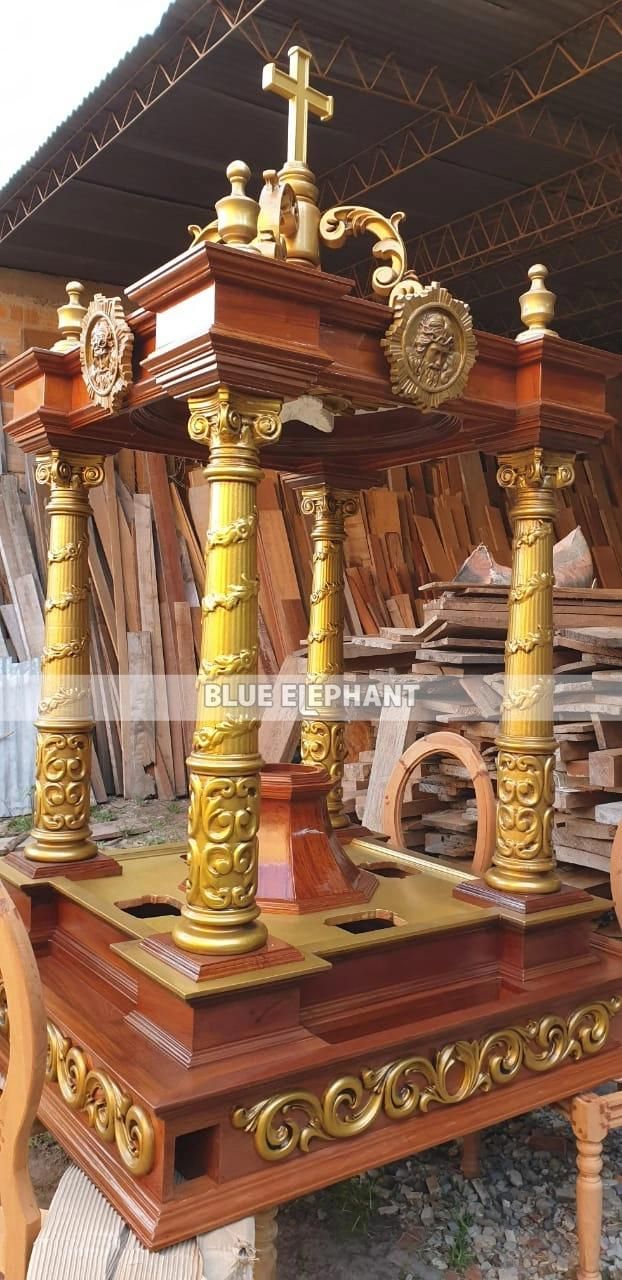

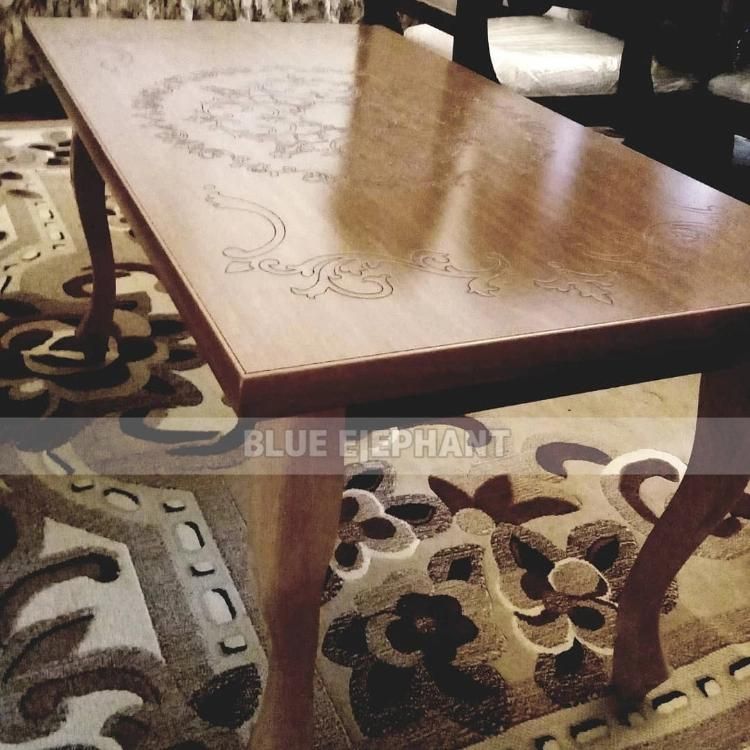

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as foam,artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others

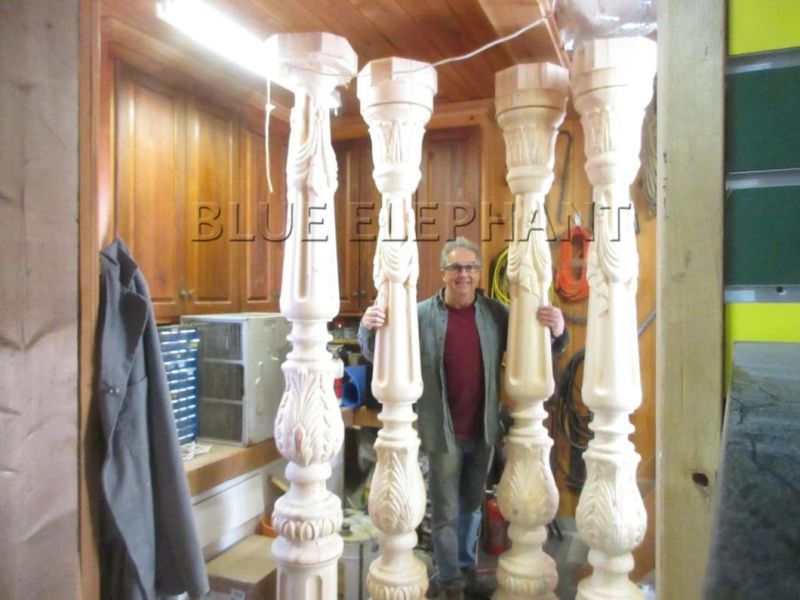

Relief sculpture and 3D engraving and Cylindrical object.
Packaging and shipping:
1. Outside package: Standard marine export plywood case.
2. inner package: Stretchy film and plastic film for humidity.
3. We can package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
Our service
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.

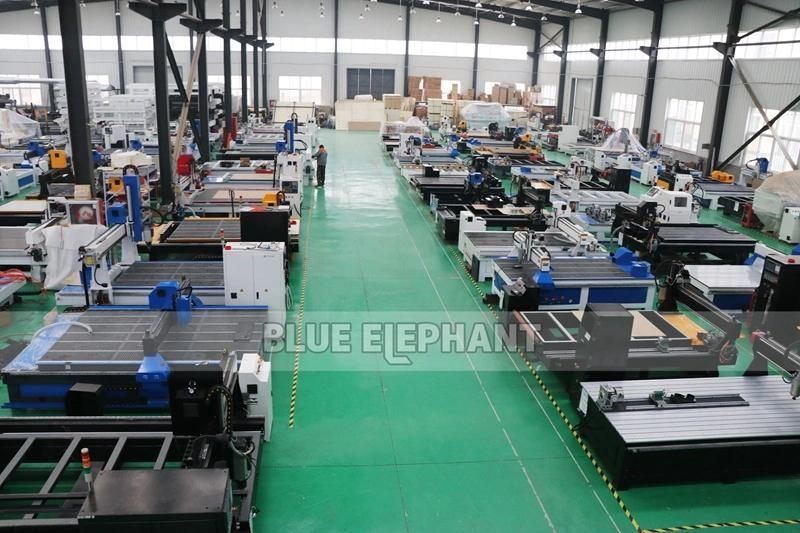

Our Factory
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
