• Model NO.：ELECNC-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：380V,220V, 3phase, 50,60Hz(Optional)
• Dimension(L*W*H)：3200*2140*1850mm
• Spindle：Italy 4.5kw Air Cooling Spindle
• Inverter：5.5kw Taiwan Delta Inverter
• Motor：FL118 Stepper Motor
• Driver：Leadshine 860h
• Table：Vacuum Adsorption Table
• Controll System：off-Line DSP Controll with USP Port
• X,Y,Z Traveling Positioning Accuracy：±0.03,300mm
• X,Y,Z Repositioning Accuracy：±0.03mm
• X, Y Structure：20#Taiwan Hiwin Linear Guide and Helical Rack
• Z Structure：Ball Screw and#20 Taiwan Hiwin Linear Guide
• Max. Rapid Travel Rate：45000mm,Min
• Max. Working Speed：30000mm,Min
• Lubrication System：Manual or Auto
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Number

Description

Parameter

1

X,Y,Z Working Area

2000x3000x200mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z Repositioning Accuracy

±0.03mm

5

Table Surface

T-slot Table

6

Spindle

4.5kw HSD air cooling spindle

7

X, Y Structure

20#Taiwan HIWIN Linear guide and helical rack

8

Z Structure

Ball screw and#20 Taiwan HIWIN Linear guide

9

Stepper Motor

FL118

10

Max. Rapid Travel Rate

45000mm/min

11

Max. Working Speed

30000mm/min

12

Stepper driver

YAKO 2811 Driver

13

Spindle Speed

0-18000RPM

14

Lubrication system

Manual or auto

15

Inverter

5.5kw Taiwan Delta Inverter

16

Command Language

G Code

17

Control System

DSP A11

18

Computer Interface

USB

19

Flash Memory

512M(U Disk)

20

Collet

ER25

21

X,Y Resolution

<0.01mm

22

Software Compatibility

Type3 Software, (Option: Artcam Software)

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

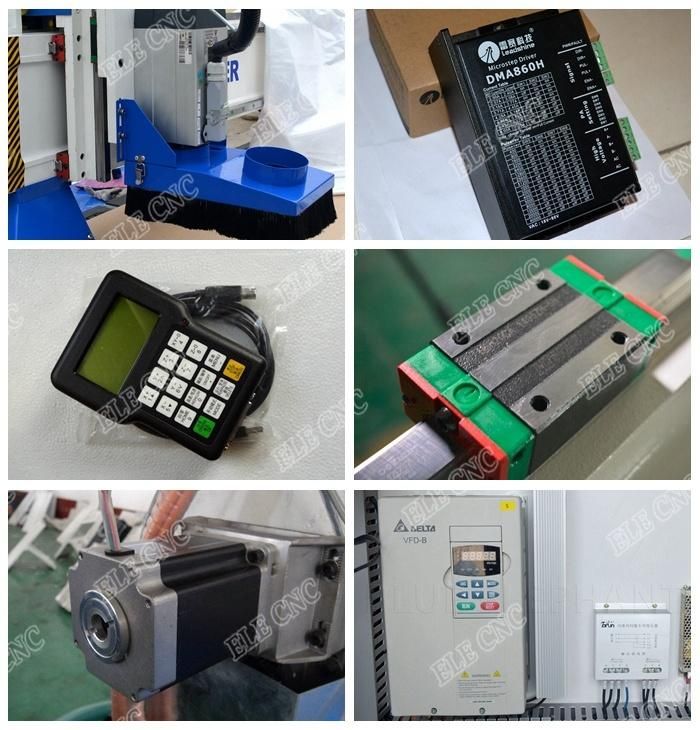

Main parts:

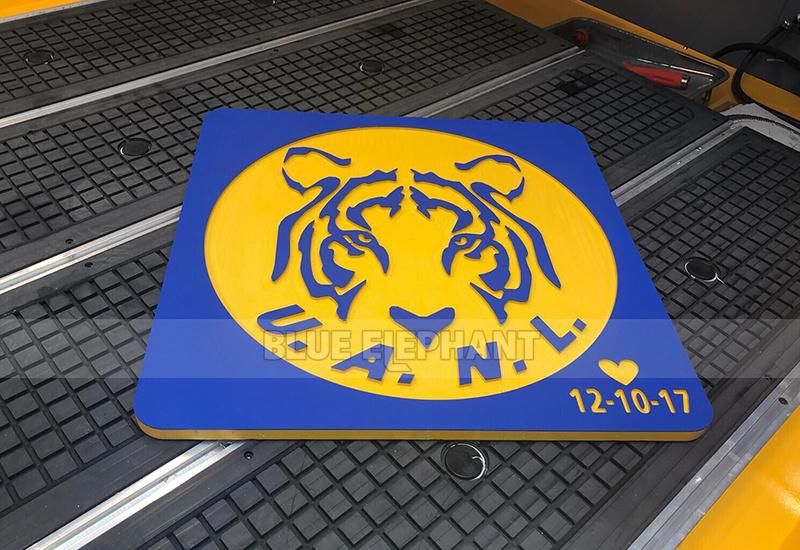

Application

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving.

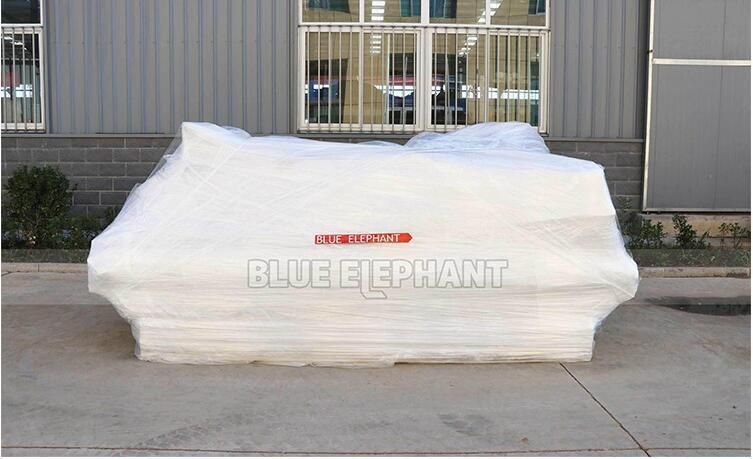

Packaging & Delivery:

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.




Our Service:

1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.

2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, and email.

5, Our technician can give you remote guide online(Skype or MSN) if you have any question.

6, We can record videos of operating the laser machine.

7, Free training course in our factory.

8.Machine will be adjusted before it is delivered, operation disk/CD was included.

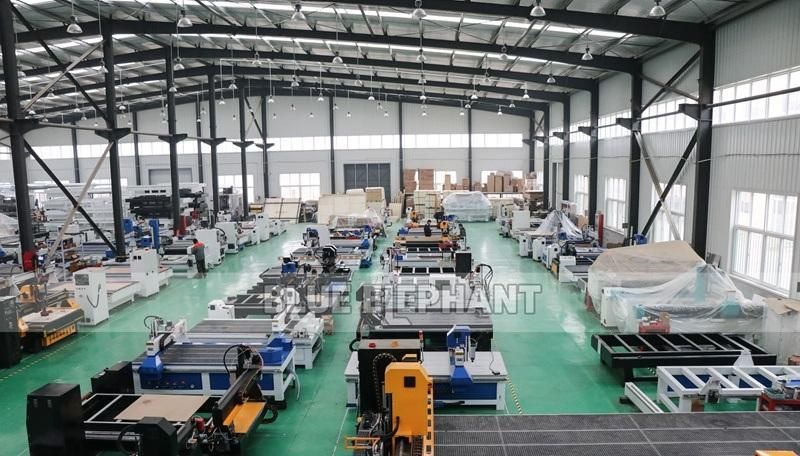

Our Factory:



Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
