• Model NO.：ELECNC-1212
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：AC 220V, 1pH, 50,60Hz(Optional :110V)
• Dimension(L*W*H)：1200*1200*160mm
• Spindle Power：1.5kw Water Cooling Spindle
• Spindle Speed：0-24000rpm
• Inverter：1.5kw Fuling Inverter
• Control System：Mach 3
• Motor and Driver：Stepper
• Ball Screw：Taiwan Tbi Ball Screw
• Option：80mm Rotary Device
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Working area

1200*1200*600mm

Spindle

1.5KW water cooling spindle

Spindle rotating speed

24000RPM

Motor

Stepper

Inverter

1.5 kw FULING brand

Control system

Mach3

X,Y,Z

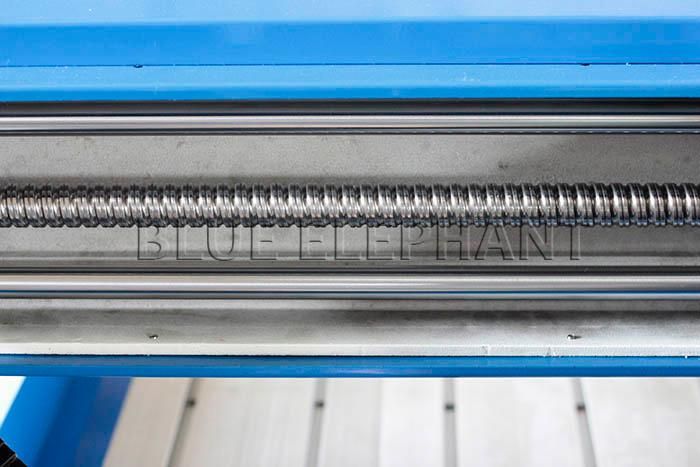

Ball screw imported from Taiwan

Table surface

T-slot working table

Frame structure

Cast aluminum structure

Positioning accuracy

±0.02/300mm

Repositioning accuracy

±0.01mm

Max. engraving speed

6,000mm/min

Max. motion speed

8,000mm/min

Tools diameter

ER20

Dictate format

G code,U00,mmg,plt/HPGL/NC

Compatible software

Type3,Ucancam,ArtCAM

Support software

Windows98/2000/XP

Working supply

AC220V, 1 phase,50/60HZ(110V for option)

Guarantee

One year

option

vacuum table, dust collector, rotary device, mist sprayer, flume

Application

Furniture, wood craft, decorative products, signs, building models, metal, embossed pictures.

Technical support

24 Hours technical support by email or calling

User friendly English manual and Video CD for machine operation and maintain

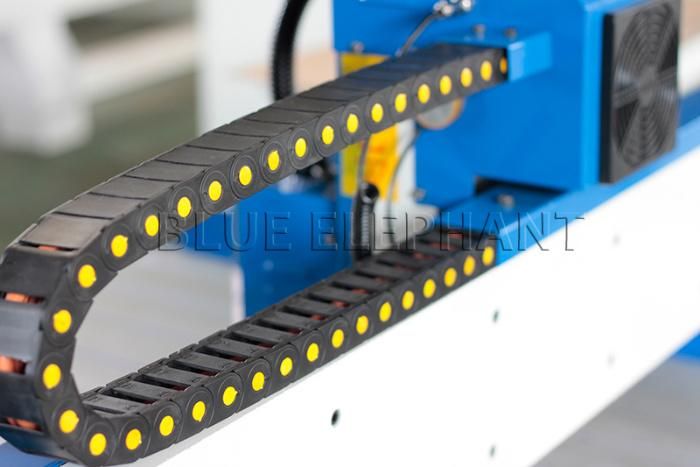

The machinery parts



Application
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors,interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object

Packaging & Delivery

Packaging Details:  1.Outside package:Standard marine export plywood case.

                                  2.inner package:Stretch film and plastic film for humidity.

                                  We can package according to your requests.

Delivery Detail:  Shipped in 15 working days after payment.




Our service

1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, and email.

5, Our technician can give you remote guide online(Skype or MSN) if you have any question.

6, We can record videos of operating the laser machine.

7, Free training course in our factory.

8.Machine will be adjusted before it is delivered, operation disk/CD was included.


Company Information



Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developing to the research and manufacturer of CNC router machine and laser cutting engraving machine.

We have our R & D department, Quality control department, and after sale & service department.

Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.

We had got CE and FDA  certification always offer  best  quality  machine.

Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

Just looking forward to service every customer, like you.
