• Model NO.：ELE1325
• Weight：1500kg
• Computer Interface：USB Interface
• Type：Vertical Uniaxial Wood Router
• Spindle Layout：Spindle Over
• Feed Mode：Mechanical
• Controlling Mode：CNC
• Customized：Customized
• Transport Package：Standard Marine Export Plywood Cases
• Specification：CE, ISO, SGS
• Trademark：Blue Elephant
• Origin：Shandong, China
• Production Capacity：200set,Sets Per Month

Descriptions

Parameters

Working area

1300*2500*300mm

Control system

Syntec 6MB Control System

Spindle

4.5kw *4 China famous brand spindle

Spindle speed

0-24000RPM

Inverter

7.5kw inverter

Motor and driver

Delta 1000w Servo Motor,Japan Shimpo reducer

Voltage

380V, 3ph, 50Hz (optional)

Table structure

New type thicker and bigger heavy duty welded frame and gantry

Table surface

Vacuum T-slot working table

Vacuum pump

7.5kw water type circulation vacuum pump

Transmission

ABBA #25 linear guide

Lubrication system

Auto lubrication

Dust Collector

double bags dust collector 3.0kw

Vaccum pump

7.5kw water vaccum pump

PS:All the working area and specifications can be customized according to your requests.

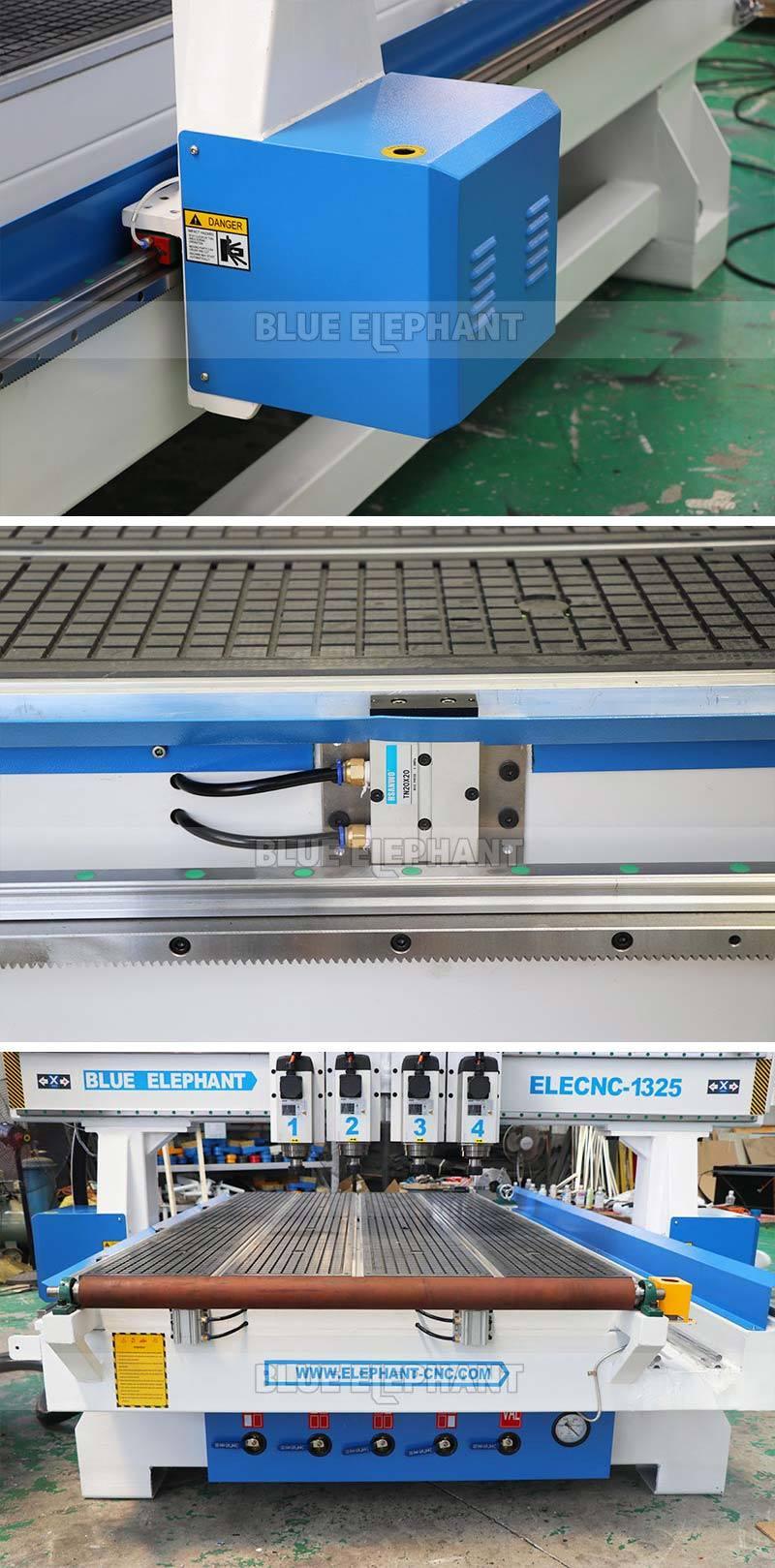

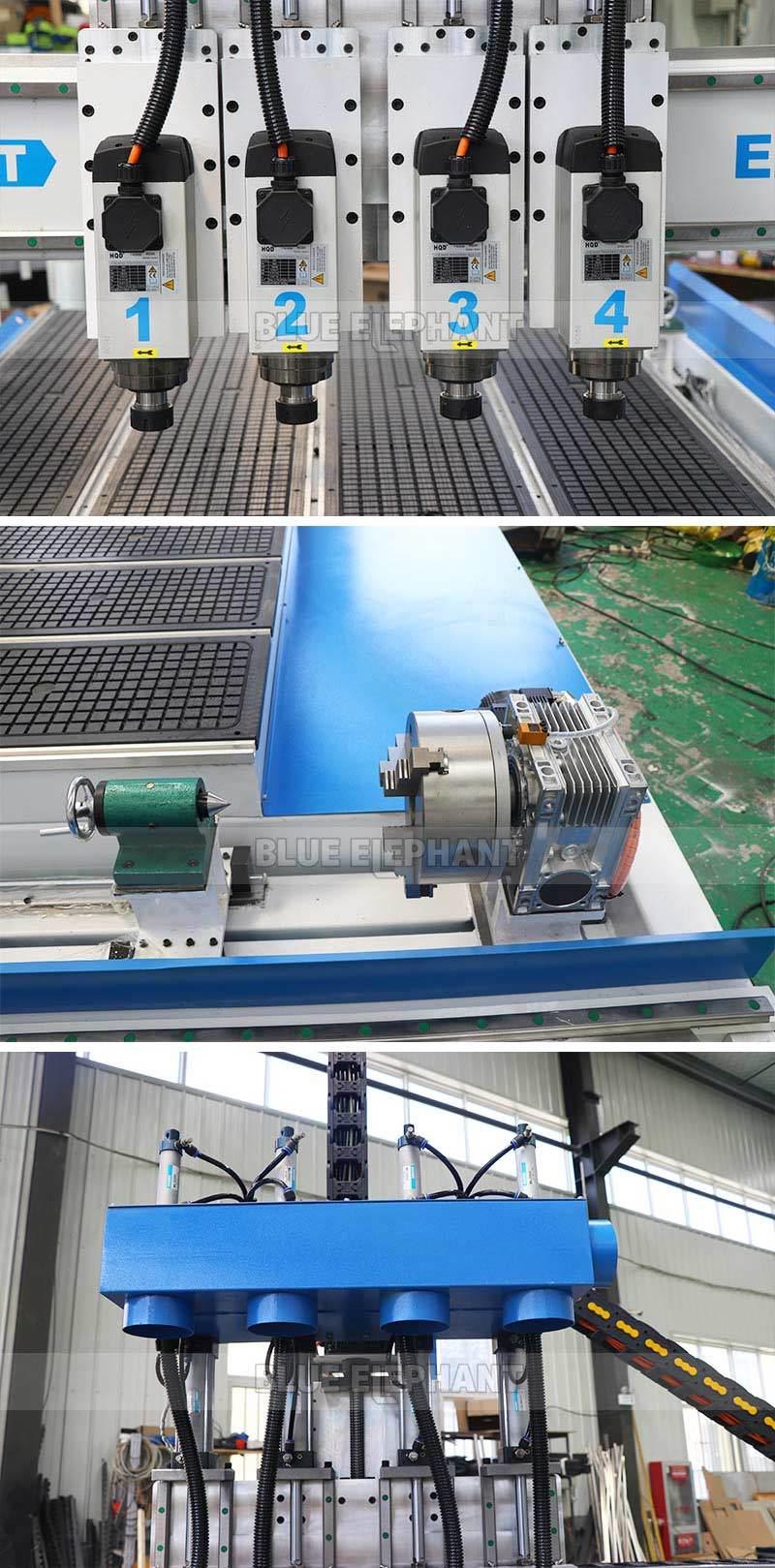

Machinery Parts:




Application

1.Wood furnitur industry: Wave plate,fine pattern,antique furniture,wooden door,screen,craft

   sash,composite gates,cupboard doors,interior doors,sofa legs,headboards and so on.

2.Advertising industry: Advertising indentification,sign making,acrylic engraving and cutting,crystal word making,blaster molding,and other advertising materials derivatives making.

3.Die industry: A sculpture of copper,aluminum,iron and other metal molds,as well as artificial marble,sand,plastic sheeting,PVC pipe,wooden planjs and other non-metallic mold.

4.Relief sculpture and 3D engraving

5.Cylindrical object

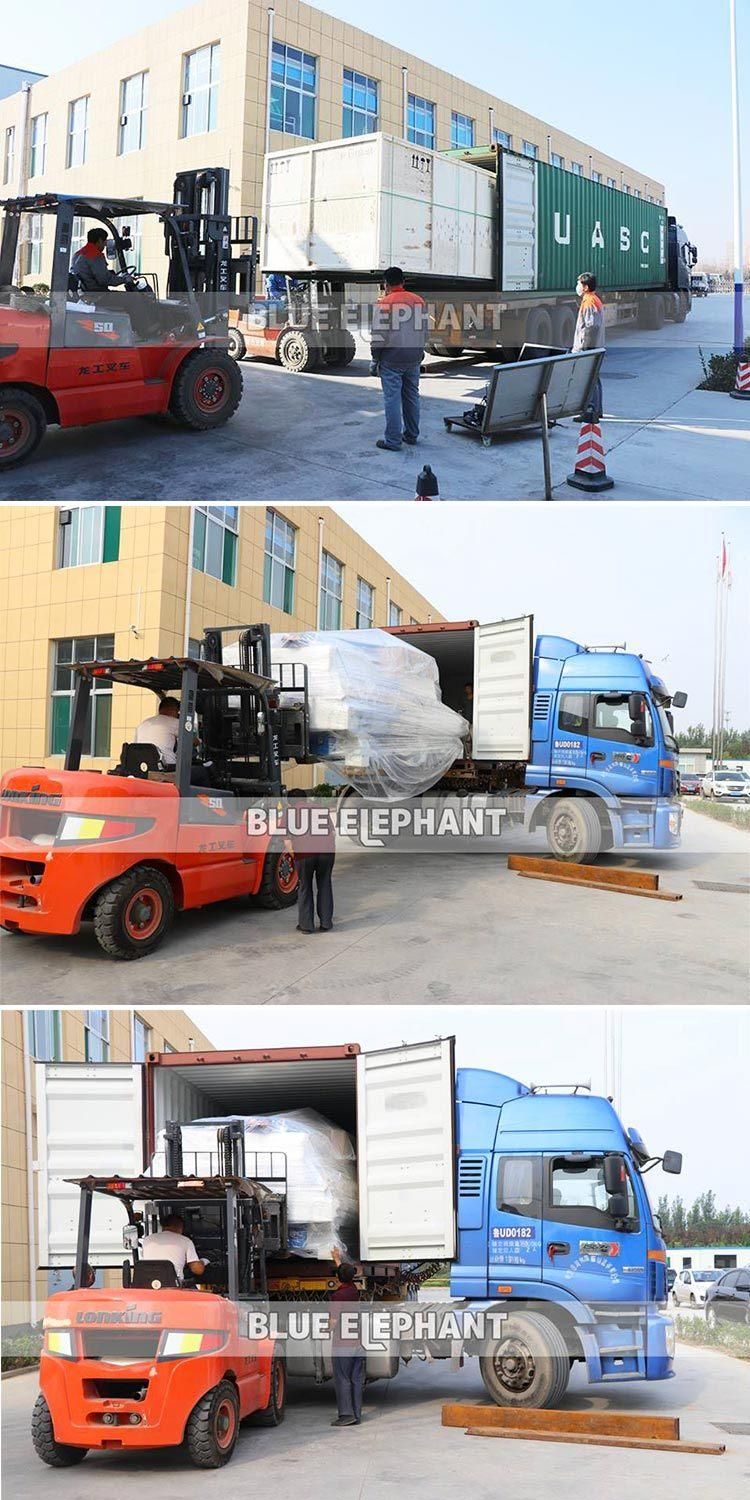

Packaging & Delivery

Packaging Details:  1.Outside package:Standard marine export plywood case.

                                  2.inner package:Stretch film and plastic film for humidity.

We can package according to your requests.

Delivery Detail:Shipped in 15-20 days after payment



Our Service

1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will
    change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any
    problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost
    price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, and email.

5, Our technician can give you remote guide online(Skype or MSN) if you have any question.

6, We can record videos of operating the laser machine.

7, Free training course in our factory.

8.Machine will be adjusted before it is delivered , operation disk/CD was included.

Customers Feedback


Company Information




Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City , Shandong Province .

We have always been developing to the research and manufacturer of CNC router machine, plasma cutter, laser cutting engraving machine, which have passed CE, SGS, TUV etc certification.

Welcome to visit us, click https://blueelephant-cnc.en.made-in-china.com to learn more about us.



Contact us:

Web: blueelephant-cnc.en.made-in-china.com
