1530 4 Axis CNC Router Machine 3D CNC Router with Aluminium Copy Router Machine
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type:Wooden Mold Router
- Spindle Layout:Spindle Over
- Spindle Number:Single-Spindle
- Feed Mode:Manual
- Controlling Mode:CNC
- Certification:CE, ISO, SGS BV TUV
Base Info
- Model NO.:ELE1530
- Customized:Customized
- Condition:New
- Color:Customized
- Product Name:Blue Elephant
- Dimension(L*W*H):1500*3000*200mm
- Model Number:Ele 1530
- Max. Rapid Travel Rate:33000mm,Min
- Spindle:3kw Water Cooling Spindle
- Place of Origin:Shandong, China (Mainland)
- Voltage:AC380V, 3pH, 50,60Hz (Option: 220V)
- Weight:1500kgs
- Positioning Accuracy:±0.03,300mm
- Repositioning Accuracy:±0.03mm
- Transport Package:Standard Export Wooden Case
- Specification:CE, ISO, SGS
- Trademark:BLUE ELEPHANT
- Origin:Shandong, China
Description
Description
Parameter
X,Y,Z Working Area
1500x3000x700mm*±100°
Table Size
1500×3500mm
X,Y,Z Traveling Positioning Accuracy
±0.01/300mm
X,Y,Z Repositioning Accuracy:
±0.01mm
Table Surface
Vacuum and T-slot Combined (Option: T-slot Table)
Frame
Big Steel Tube Structure
X, Y Structure
Helical rack gear , HIWIN Linear guide
Z Structure
Imported Ball Screw , HIWIN Linear guide
Max. Power Consumption
(Without Spindle) 4.2Kw
Max. Rapid Travel Rate
40000mm/min
Max. Working Speed
30000mm/min
Spindle Power
HSD spindle 4.5kw( Italy ATC spindle for option)
Spindle Speed
0-18000RPM
Drive Motors
Japan 850 W YASKAWA servo motor
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V))
Command Language
G Code
Operating System
SYNTEC Control System (model: EZ4M)
Computer Interface
USB
Flash Memory
512M
Collet
ER25
X,Y Resolution
<0.01mm
Software Compatibility
UG , Power mill
Running Environment Temperature
0 - 45 Centigrade
Relative Humidity
30% - 75%
Applications

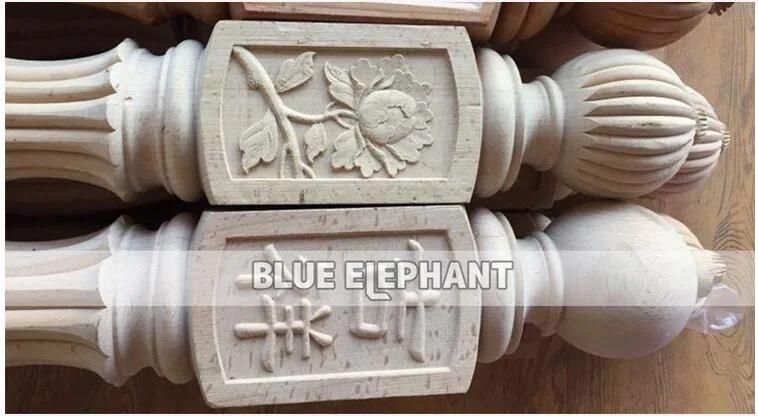

1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Packaging & Delivery:

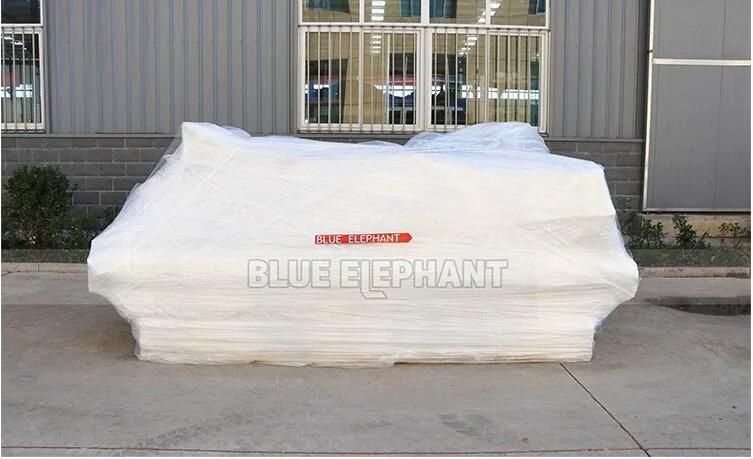

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

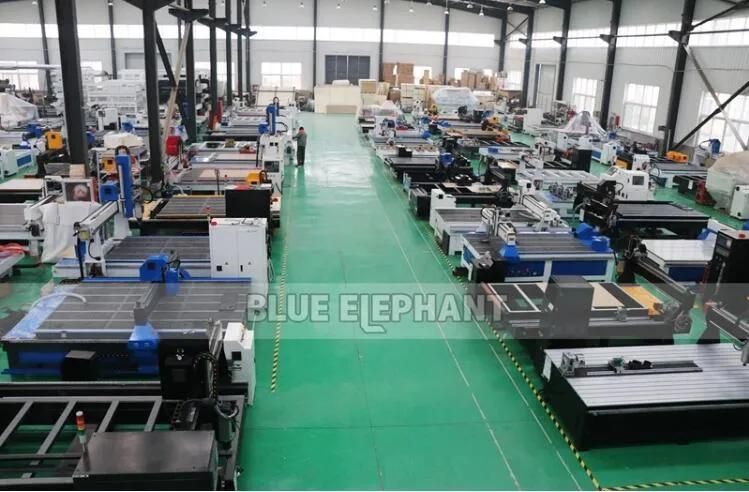

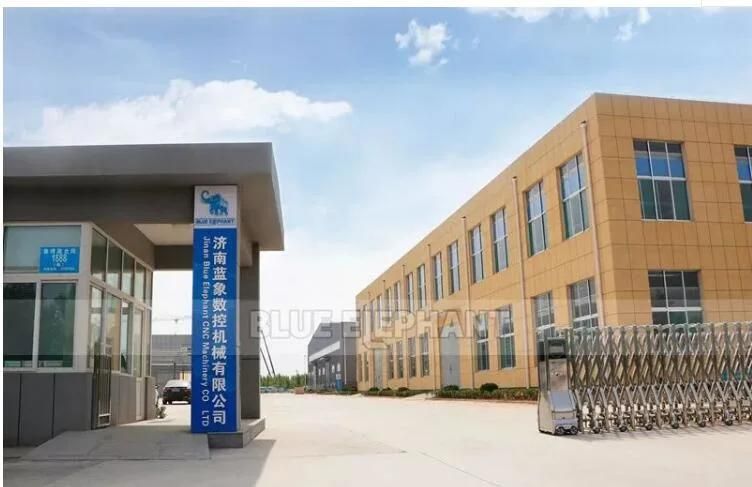

Welcome to our factory:
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
