EPS Foam CNC Router 3050 Wood CNC Engraving Machine Auto Tool Changer
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type：Wooden Mold Router
- Spindle Layout：Spindle Over
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO, SGS BV TUV
Base Info
- Model NO.：ELECNC-3050
- Customized：Customized
- Condition：New
- Color：Customized
- Product Name：Wood Atc CNC Router for Wood Engraving and Cutting
- Working Size：3000*5000*1000mm

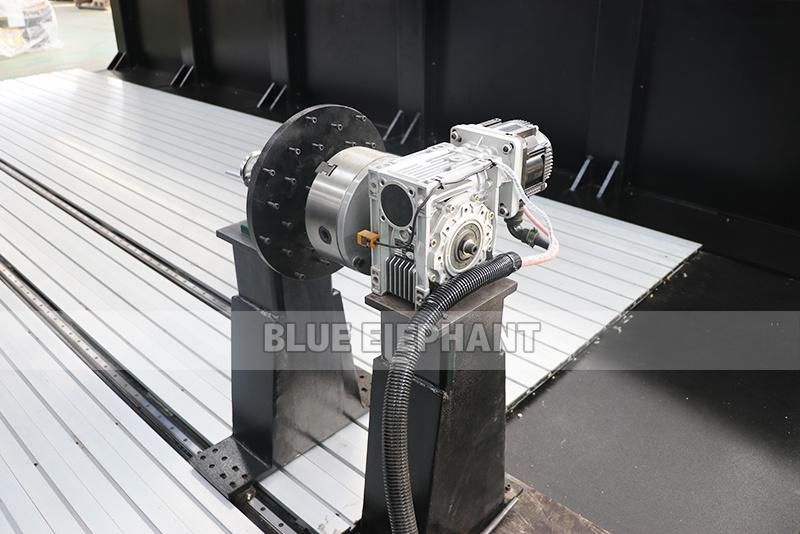

- The 4th Axis：±180°
- Transmission：X,Y Rack and Pinion Drive
- Table Structure：Cast Iron Frame
- Spindle Power：Italy 9 Kw Hsd Atc Air Cooling Spindle
- Spindle Speed：24000rpm
- Working Speed：20m,Min
- Working Voltage：380V, 3pH, 50,60 Hz
- Control System：Taiwan Syntec
- Transport Package：Standard Export Wooden Case
- Specification：CE, FDA, ISO, SGS
- Trademark：BLUE ELEPHANT
- Origin：Shandong, China
- Production Capacity：200 Sets Per Month
Description
Description
Parameter
X,Y,Z Working Area
3000x5000x1000mm*180°
X,Y,Z Traveling Positioning Accuracy
±0.01/300mm
X,Y,Z repositioning Accuracy
±0.01mm
Table Surface
Milling steel table (T-slot)

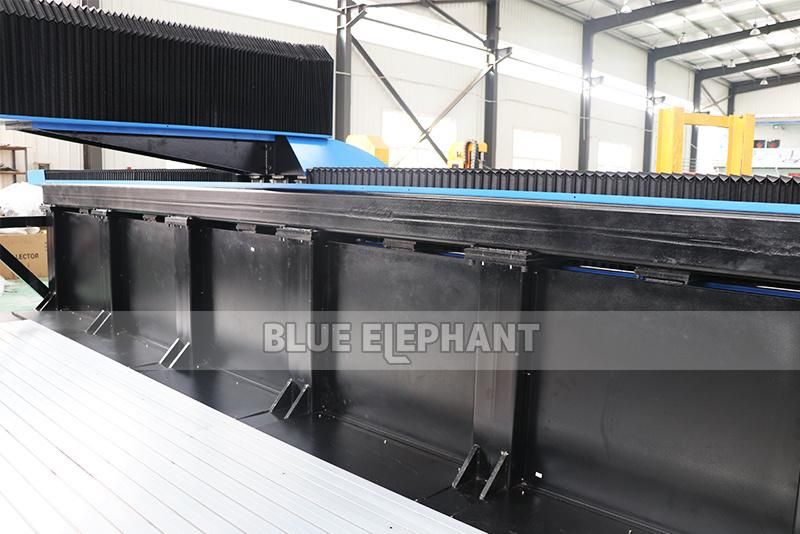

Frame
Welded structure (cast iron)
X, Y Structure
Oblique Rack and Pinion Drive from Taiwan, Hiwin Rail Linear Bearings:X axis, Y axis, 30mm
Z Structure
Ball Screw, Hiwin Rail Linear Bearings :Z axis, 25mm
Max. Power Consumption
(Without spindle) 6.5Kw
Max. Rapid Travel Rate
40000mm/min
Max. Working Speed
25000mm/min
Spindle Power
9KW Italy HSD ATC air cooling spindle
Spindle Speed
0-24000RPM
Drive Motors
Yaskawa servo system : 1.3kwZ axis is with band brake
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V))
Command Language
G code
Operating System
Syntec control System : EZ3M(Osai)
Computer Interface
Ethernet
Flash Memory
256 M(with CF card)
Collet
BT40
X,Y Resolution
<0.01mm
Software Compatibility
Type3, UcancameV9, Art cam software
Running Environment Temperature
0degree - 45 degree
Relative Humidity
30% - 75%

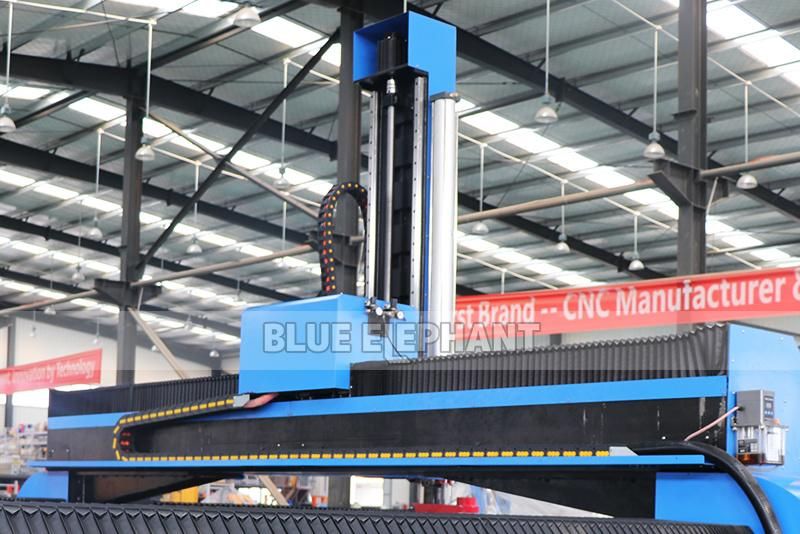

Product Details
Application
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: Shipped in 15 working days after payment.
Our Service
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

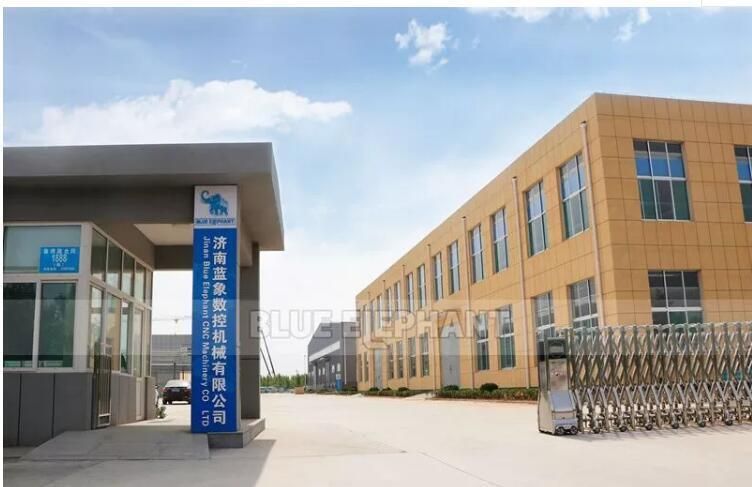

Our factory
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
