• Model NO.：ELECNC-1824
• Customized：Customized
• Condition：New
• Color：Customized
• Product Name：Wood CNC Router
• Working Size：1800X2400X1200mm for 3axis;1000X2400X1200mm for 4A
• Control System：Taiwan Syntec21mA Control System with Mpg Handle W
• Lathe Structure：Aluminum Alloy-Steel Table
• Spindle Speed：24000rpm,Min
• Spindle：Atc 9.6kw Italy Original Hsd Spindle, 6000-24000RP
• Software：Artcam,Type3
• Motor Driver：Japan Yaskawa Servo
• Working Speed：20m,Min
• Transport Package：Standard Export Wooden Case
• Specification：CE
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Working Area

1800x2400x1200mm for 3axis;1000x2400x1200mm for 4axis;

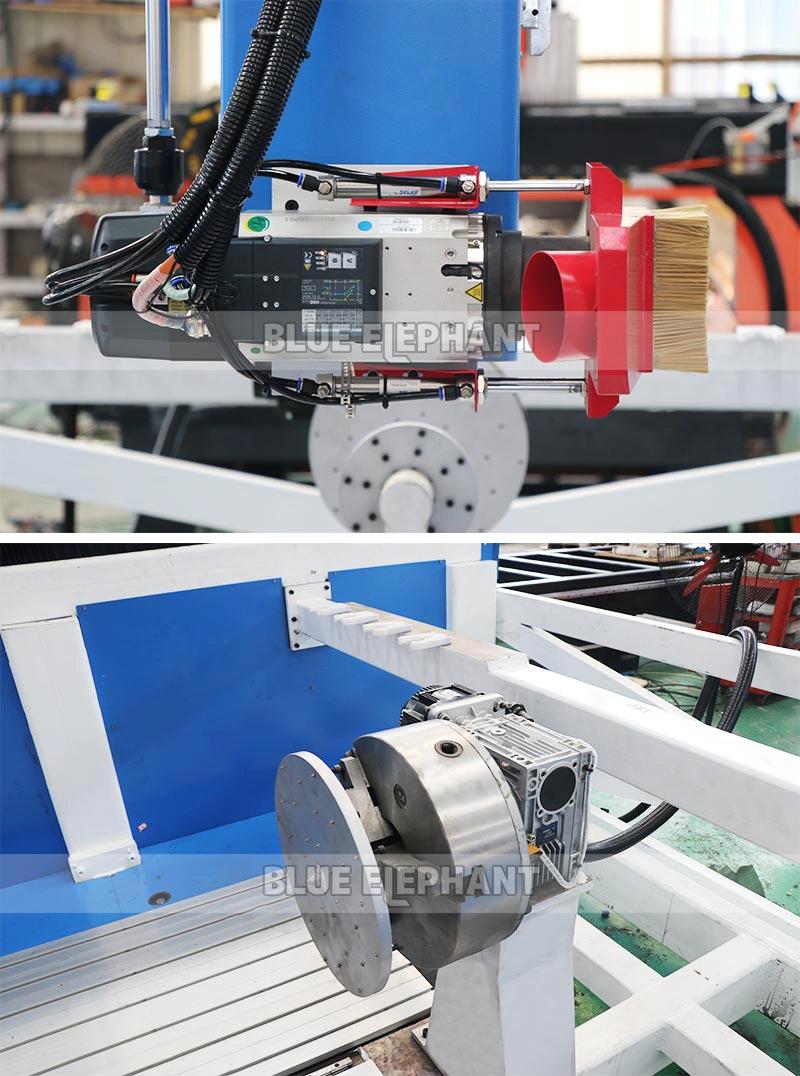

Spindle

ATC 9.6KW Italy original HSD spindle, 6000-24000RPM

Rotate 0-180 degrees.

Control system

Taiwan SYNTEC21MA control system with MPG handle whee

Drive system

Japan YASKAWA 1.3KW servo motor and drivers, Z axis with brake

Japan Shimpo reducer

Inverter

Taiwan Delta B Model 11.0KW

Machine Frame

New type thicker and bigger heavy duty 12mm

Working table

Aluminum T slot table

Guide rail

Taiwan PMI linear guide, 35# for X,Z axis; 40# for Y axis

Transmission

X,Y-helical rack pinion, Z axis with 2510 TBI ball screw

Tool sensor

Automatic tool sensor

Collect

ISO30 tool holders with ER32 collect

Lubrication system

Automatic lubrication system for rails

Traveling speed

65m/min

Working speed

25m/min

Voltage

380V,3phase, 50HZ

Limited switch

Japan Omron limited switch

Electric part

French SCHNERDER switch

Electric Wires

High soft shield with copper wire to protect against static electricity, UL/CE standard Shanghai Cardiff brand.

4th rotary axis

1,000mm, 2,400mm length

Electric Parts

France Schneider electric parts

PS: All the working area and specifications can be customized according to your requests

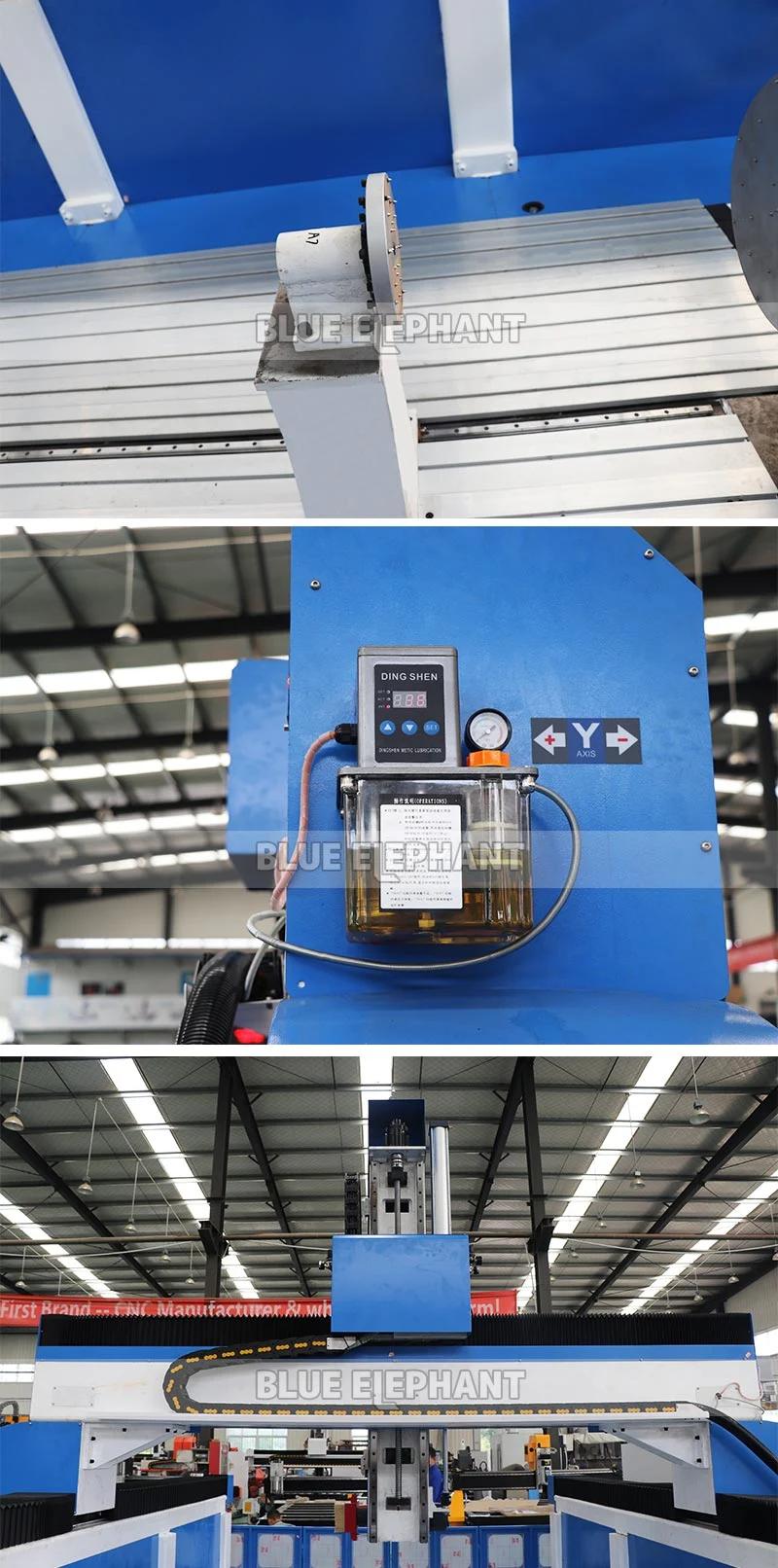

Details image




Application

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.

Improved package, much more strong and environmental protection.

We can also make package according to your requests.

Delivery Detail: Shipped in 20-30 working days after payment.

Guarantee and After-sale service:

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.
