China 1325 4s Wood Router Multi Spindles CNC Machine for Wood Carving
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：Four-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO, FDA, SGS BV TUV
Base Info
- Model NO.：ELECNC-1325-4S
- Customized：Customized
- Condition：New
- Color：Customized
- Working Area：1300*2500*200mm
- Control System：Original Wei Hong Pm95A
- Spindle：2*4.5kw+2*6.0kw Air Cooling Spindle
- Spindle Speed：0-24000rpm
- Inverter：7.5kw Fuling Inverter
- Motor and Driver：Leadshine 2206 Hybrid Servo and Drive, Japan Shimpo
- Voltage：380V, 3pH, 50Hz (Optional)
- Table Structure：Heavy Duty Welded Frame
- Table Surface：Vacuum T-Slot Working Table
- Vacuum Pump：7.5kw Water Type Circulation Vacuum Pump
- Lubrication System：Manually
- Tool Sensor：Automatic Tool Sensor
- Positioning Cylinder：6 Sets
- Dust Collector：New Type Double Bags Dust Collector 3.0kw
- Transport Package：Wooden Cases
- Specification：3200*2140*1850mm
- Trademark：BLUE ELEPHANT
- Origin：Jinan, Shandong
- Production Capacity：200 Sets Per Month
Description
Descriptions
Parameters
Model
ELECNC1325-4S
Working area
1300*2500*200mm
Control system
Original Wei Hong PM95A control system
Spindle
2 sets 4.5kw and 2 sets 6kw China famous brand air cooling spindle
Spindle speed
0-24000RPM
Inverter
7.5kw Fuling Inverter
Motor and driver
Leadshine 2206 Hybrid Servo and drive, Japan Shimpo reducer
Voltage
380V, 3ph, 50Hz (optional)
Table structure
New type thicker and bigger heavy duty welded frame and gantry
Table surface
Vacuum T-slot working table
X,Y axis transmission
Helical rack and pinion drive for X,Y axis, Taiwan HINWIN 20# linear guide
Z axis transmission
Taiwan HINWIN 20# linear guide, Taiwan TBI 2510 ball screw for z axis
Vacuum pump
7.5kw water type circulation vacuum pump
Lubrication system
Manually
Tool Sensor
Automatic tool sensor
Positioning Cylinder
6 sets
Dust Collector
New type double bags dust collector 3.0kw
PS:All the working area and specifications can be customized according to your requests.
Sample & Application

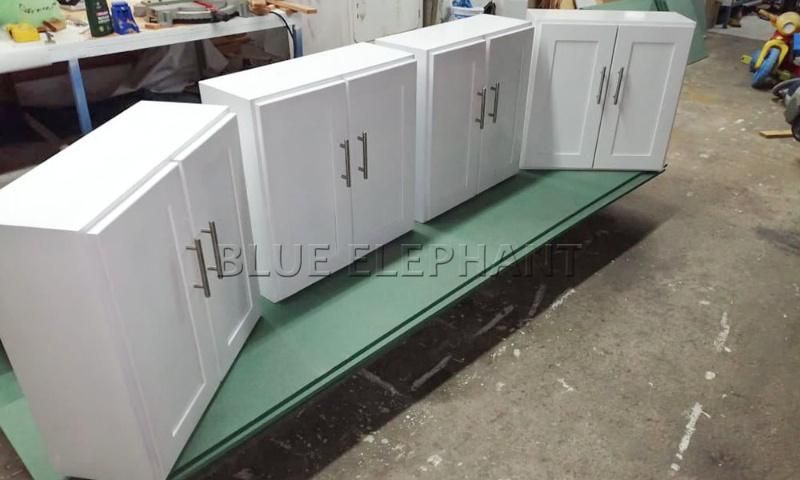

1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Our ServicePre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packaging & Delivery
Packaging Details1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.

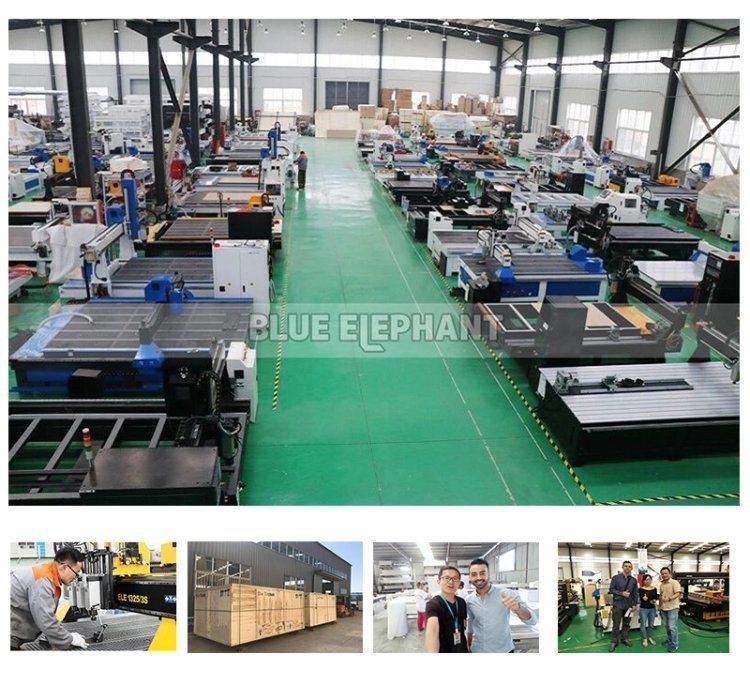

Company Introduction
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
