• Model NO.：ELE1530
• Customized：Customized
• Condition：New
• Color：Customized
• X,Y,Z Working Area：1500*3000*300mm
• Table Surface：T-Slot & Vacuum Working Table
• Spindle：6kw Italy Hsd Air Cooling Spindle
• X, Y Structure：Helical Rack Gears Transmission on X, Y Axis
• Z Structure：Taiwan Tbi Ball Screw Transmission on Z Axis
• Motor and Driver：750W Japan Yaskawa Servo Motor and Driver
• Spindle Speed：0-24000rpm
• Inverter：7.5kw Taiwan Delta Inverter
• Control System：Richauto DSP B18 Control System
• Dust Collector：1.5kw New Type Double Bag Dust Collector
• Vacuum Pump：7.5kw Water Circulation Vacuum Pump
• Working Voltage：380V, 3pH, 50Hz
• Rotary Device：300mm Diameter and 3000mm Length of Rotary Device
• Transport Package：Standard Export Wooden Case
• Specification：1500x3000x700mm
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

T-slot & vacuum working table

6kw Italy HSD air cooling spindle

Helical rack gears transmission on X,Y axis

Taiwan TBI ball screw transmission on Z axis

750w Japan Yaskawa servo motor and driver for X,Y,Z axis; Stepper motor and driver for rotary device

7.5kw Taiwan Delta inverter

RichAuto DSP B18 control system

1.5kw new type double bag dust collector

7.5kw water circulation vacuum pump

Working voltage

380v, 3ph, 50hz

PS: All the working area and specifications can be customized according to your requests.

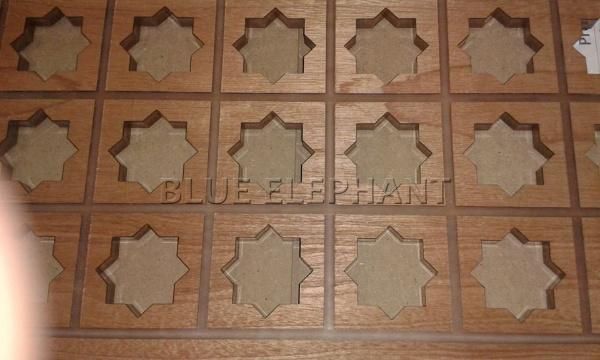

Sample & Application

1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.



Our Service

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions



After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.










Packaging & Delivery

Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.

Delivery Detail: Shipped in 25-30 working days after payment.

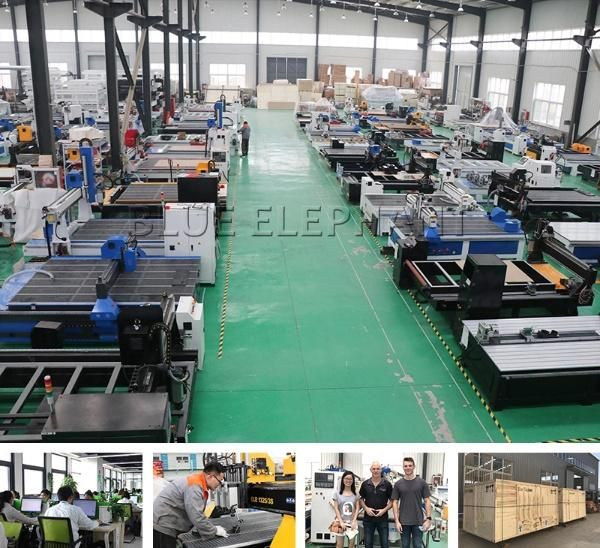

Company Introduction

Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
