• Model NO.：DT1515 Z800
• Customized：Customized
• Condition：New
• Color：Customized
• Spindle：Hsd Italy 18kw
• Tool Magazine：Bamboo Hat Atc
• Vacuum Pump：160m3
• Servo：Yaskawa
• Linear Guide and Ball Screw：Taiwan Hiwin and Tbi
• Transport Package：Plywood Case
• Specification：DT1515-Z800
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：1 Sets Per Month

Basic Info.

Model NO. DT1515 Z800 Customized Customized Condition New Color Customized Spindle Hsd Italy 18kw Tool Magazine Bamboo Hat Atc Vacuum Pump 160m3 Servo Yaskawa Linear Guide and Ball Screw Taiwan Hiwin and Tbi Transport Package Plywood Case Specification DT1515-Z800 Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 1 Sets Per Month

Product Description

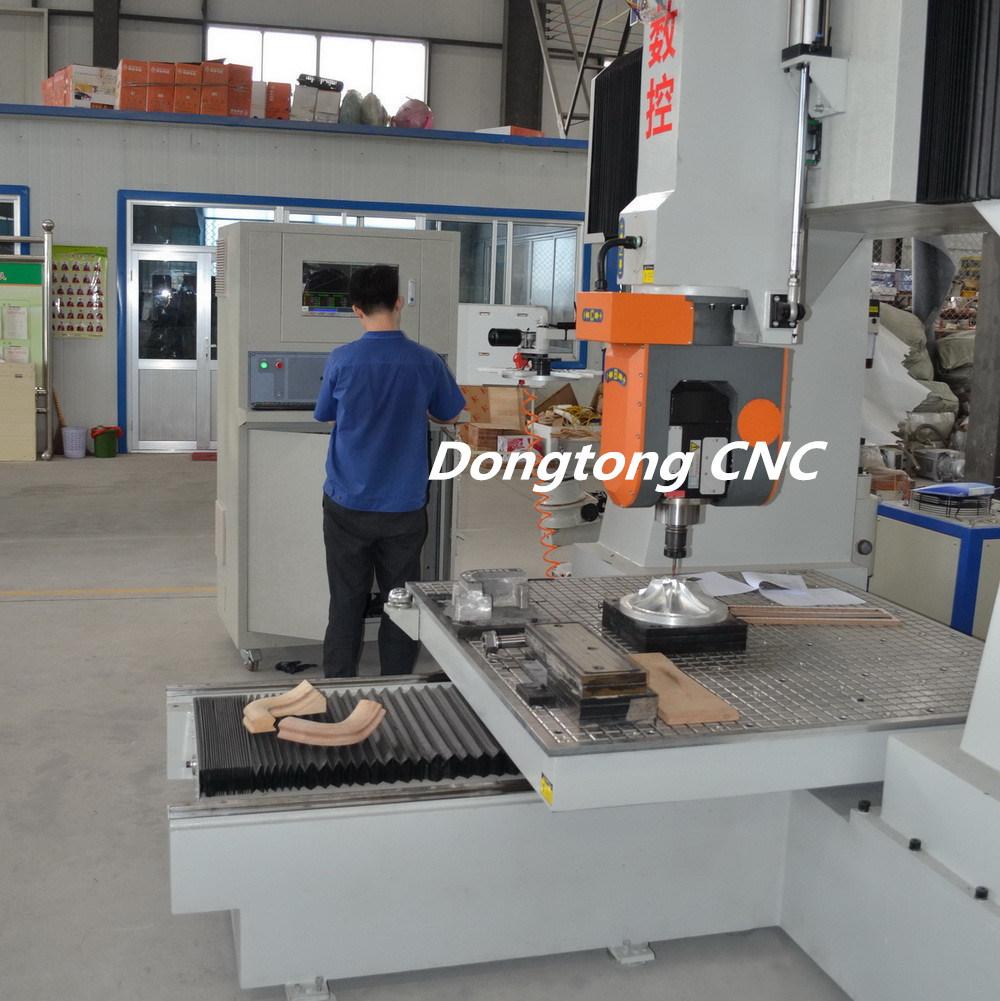

5 AXIS PROCESSING CENTER
5 AXIS CNC ROUTER
from professional cnc woodworking engraving machine maufacturor.


Feature:
1. All ball screw driving, high precision, long service life. X/Y axis adopts screw fixing nut rotating structure, high speed, balance and reliable.
2. The design of overall beam and beam seat, good rigidity, high precision.
3. Z axis drive section and some parts made by casting materials, high strength, good rigidity.
4. Automatic exhaust lubrication system, software controlled fuel rationing timely and quantitatively.
5. Five axis double swing, B and C axis adopt gapless worm gear drive, the output torque rigidity, back lash adjustable quickly.

Application:
1. MOULDING INDUSTRY: It can engrave all kinds of nonmetal moulding,especially for auto car foam moulding, steamship wooden model,aviation wooden model,train wooden model and so on.
2. MUSICAL INTRUMENT INDUSTRY: It can engrave 3D surface of large scale musical instrument, and the contour cutting.
3. OTHER INDUSTRY: Stair railing,large-scale sculpture.model of UAV,the handle of a gun and so on.


Technical Parameter:

Model	5 Axis processing center 1515 Z800
Working table	1500x1500mm
Spindle	HSD water cooling spindle 18Kw 12000Rpm ISO40 from Italy
Tool magazine	Bamboo Hat ATC with 5 positions
X axis working area	2200mm
Y axis working area	2000mm
Z axis working area	800mm
B axis	±100°
C axis	±200°
System	Taiwan SYNTEC, WinCE interface, support for mouse, keyboard , USB
vacuum pump	160m³
servo	Japan YASKAWA
Linear Guide and ball screw	Taiwan Hiwin and TBI
Weight	6 Tons

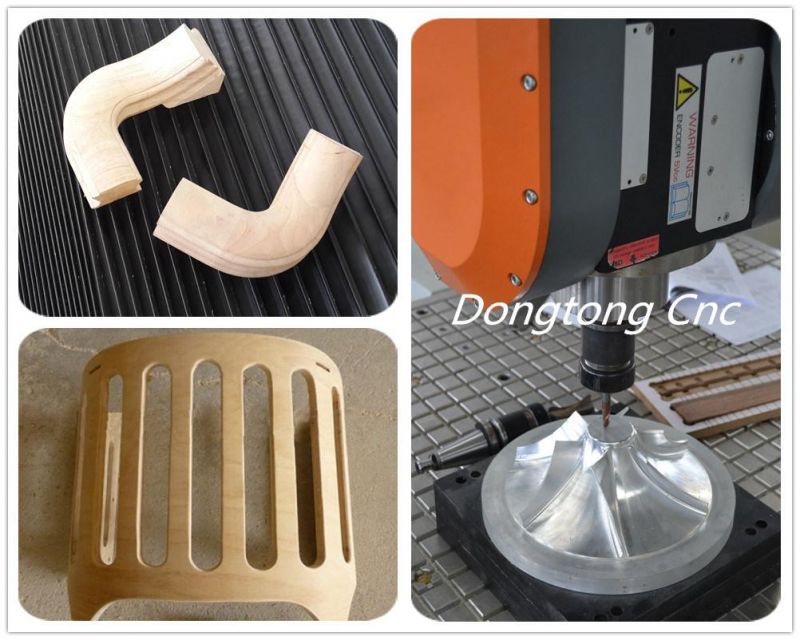

Our perfect engraved samples:


Our  machine's details:


Our Processing Time:

 Sincerely waiting for your any inquiry, and trust that we can provide you professional suggestions.
 Guarantee & After-sale service1. One year warranty under normal use and we supply lifelong maintenance. 2.24 hours technical support by Phone, Email, Skype, Msn, or romote. 3. Free training to make sure you master the operation of the cnc router.
 OEM Service Available1. Usually, we will manufacturer the machine as our regular design. 2. X Y Z Working Area could be custmer-oriented designing. 3. Special configuration could be customer-oriented designing.
