Ncstudio/ DSP, Stepper/ Yaskawa Servo, Vacuum Table, 1300X2500, CNC Router
Jinan Guanjiahong CNC Machinery Co., Ltd.- Type:Vertical Uniaxial Wood Router
- Spindle Layout:Spindle Over
Base Info
- Model NO.:DT1325W-1
- Spindle Number:Single-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Customized:Customized
- Condition:New
- Color:White and Blue
- After-sales Service:Permanent
- Guide Rail:PMI (Imported)
- Screw:PMI (Imported)
- Running Mode:Stepper (Optional Yaskawa Servo)
- Driver:Yako 2811mA (Optional Leadshine 860)
- Motor:Thank 450c (Optional Cw-450b)
- Dust Collector:Yes
- Inverter:Fuling
- Control Systerm:Nc Studio (Genuine)
- Table:Vacuum
- Oil Lubrication System:Yes
- Transport Package:Plywood Case
- Specification:1325W-1
- Trademark:GJH
- Origin:Shandong China
- HS Code:84609090
- Production Capacity:100 Sets Per Month
- Package size per unit product:3100.00cm * 2280.00cm * 2000.00cm
- Gross weight per unit product:1600.000kg
Description
Basic Info.
Model NO. DT1325W-1 Spindle Number Single-Spindle Feed Mode Mechanical Controlling Mode CNC Customized Customized Condition New Color White and Blue After-sales Service Permanent Guide Rail PMI (Imported) Screw PMI (Imported) Running Mode Stepper (Optional Yaskawa Servo) Driver Yako 2811mA (Optional Leadshine 860) Motor Thank 450c (Optional Cw-450b) Dust Collector Yes Inverter Fuling Control Systerm Nc Studio (Genuine) Table Vacuum Oil Lubrication System Yes Transport Package Plywood Case Specification 1325W-1 Trademark GJH Origin Shandong China HS Code 84609090 Production Capacity 100 Sets Per MonthPackaging & Delivery
Package size per unit product 3100.00cm * 2280.00cm * 2000.00cm Gross weight per unit product 1600.000kgProduct Description
NCSTUDIO/ DSPSTEPPER/ YASKAWA SERVO

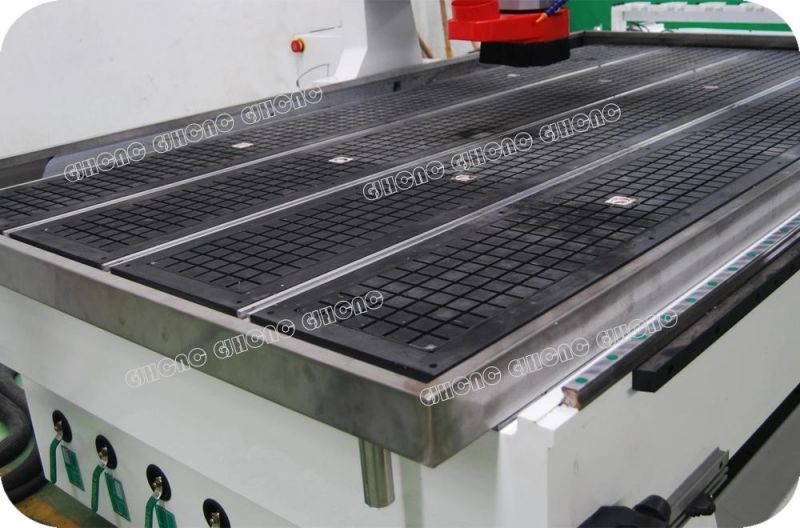

VACCUM TABLE

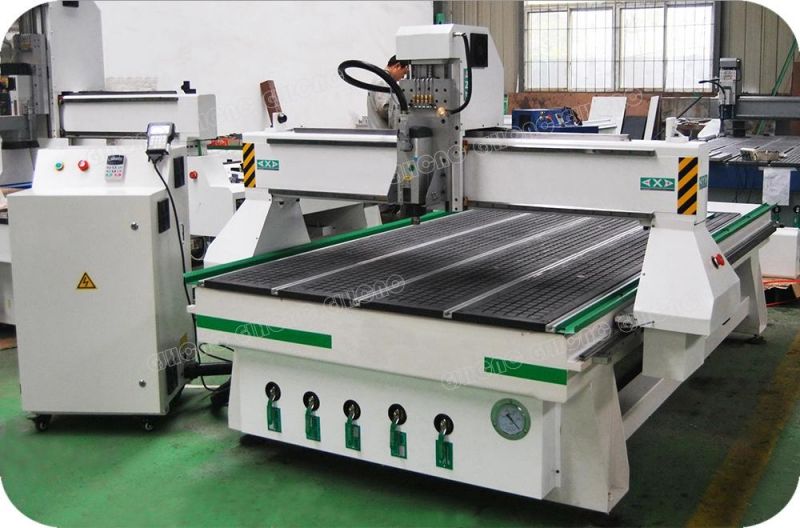

1300X2500 CNC ROUTER
MODEL:DT1325W-1
STANDARD:1300X2500X200M
With new structure, CNC Router 1325-1 fits for hard wood working, like cutting and engraving on Rosewood for furniture, indoor decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass-producing of furniture.
If you need process Alumium, Cooper or Stone, we can add Water tray on the working table.
NO. Discription Parameter
1. X,Y,Z Working Area 1300x2500x200mm
2.Table Size 1360×2940mm
3. X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
4. X,Y,Z Repositioning Positioning Accuracy ±0.03mm
5. Table Surface Vacuum & T-slot combined table )
6. Frame Welded strucutre
7. X, Y Structure Rack and Pinion Drive, Square Rail Linear Bearings
8. Z Structure Imported Ball Screw, Square Rail Linear Bearings
9. Max.Power Consumption (Without spindle) 2.0Kw
10. Max.Rapid Travel Rate 33000mm/min
11. Max.Working Speed 25000mm/min
12. Spindle Power Motor 3.0Kw water cooling Spindle
13. Spindle Speed 6000-24000RPM
14. Drive Motors Stepper system (Option: Yaskawa servo, Panasonic servo)
15. Working Voltage AC380V/50/60Hz,3PH (Option: 220V))
16. Command Language G Code
17. Operating System Ncstudio System (Option: DSP)
18. Interface USB
19. Collet ER25
20. X,Y Resolution <0.02mm
21. Software Compatability Type3 software,(Option: any Cam software)
22. Running Environment Temperature: 0ºC~45ºC
Relative humidity: 30%~75%
23. Packing Size 3200X2100X1970mm
24. Net Weight 1160KG
25. Gross Weight 1350KG
If you have specific requirement for cnc woodworking engraving machine, customized is available.

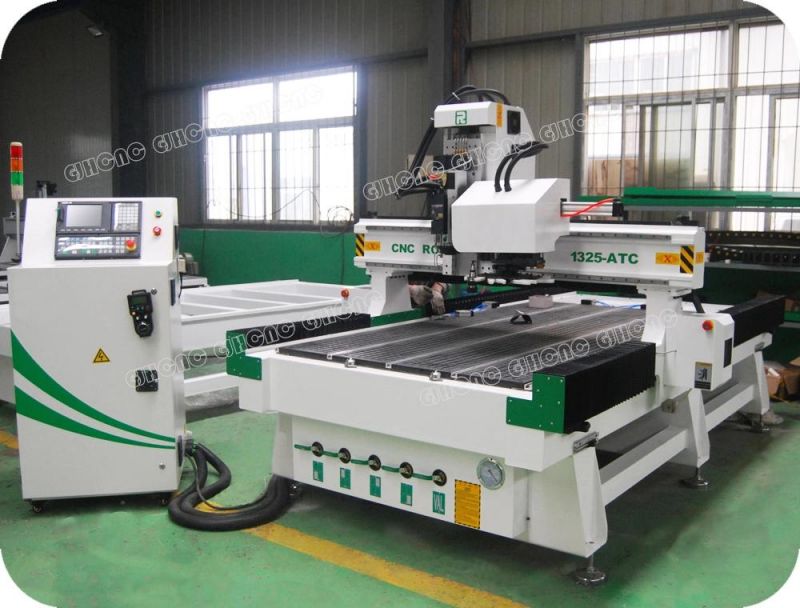

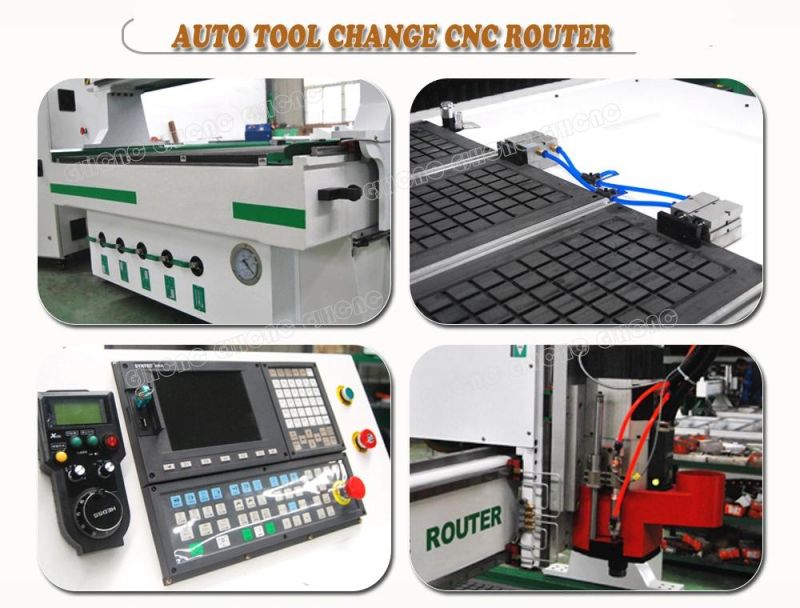

CAROUSEL ATC Machine as follows,

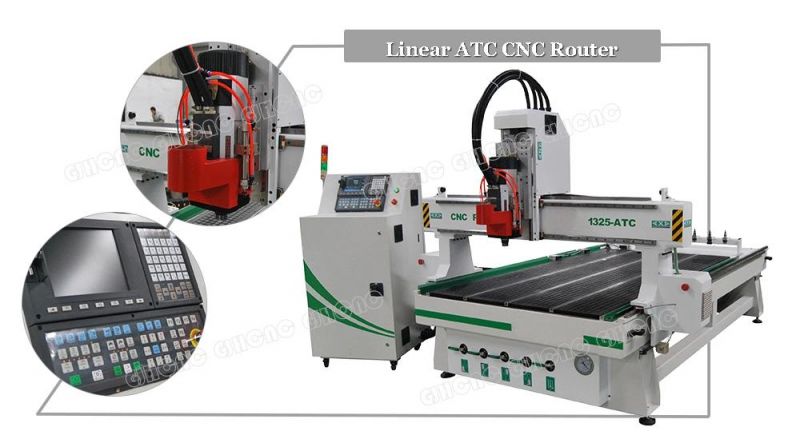

LINEAR ATC Machine as follows,
GUARANTEE & AFTER-SALE SERVICE:
1. One year warranty under normal use and we supply lifelong maintenance.
2.24 hours technical support by Phone, Email, Skype, Msn, or romote.
3. Free training to make sure you master the operation of the cnc router.
OEM SERVICE AVAILABLE:
1. Usually, we will manufacturer the machine as our regular design.
2. X Y Z Working Area could be custmer-oriented designing.
3. Special configuration could be customer-oriented designing.
