• Model NO.：DT2040
• Customized：Customized
• Condition：New
• Color：Customized
• Control System：Nc Studio
• Ball Screw：PMI, Taiwan
• Guild Rail：Hiwin Square Rail
• Transport Package：Plywood Case
• Specification：SGS
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：300 Sets Per Month

Basic Info.

Model NO. DT2040 Customized Customized Condition New Color Customized Control System Nc Studio Ball Screw PMI, Taiwan Guild Rail Hiwin Square Rail Transport Package Plywood Case Specification SGS Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 300 Sets Per Month

Product Description

 2040/1325/1826, plastic, acrylic, stone, wood CNC router
Woodworking , Advertising CNC Carving Machine
from professional cnc router manufacturer.

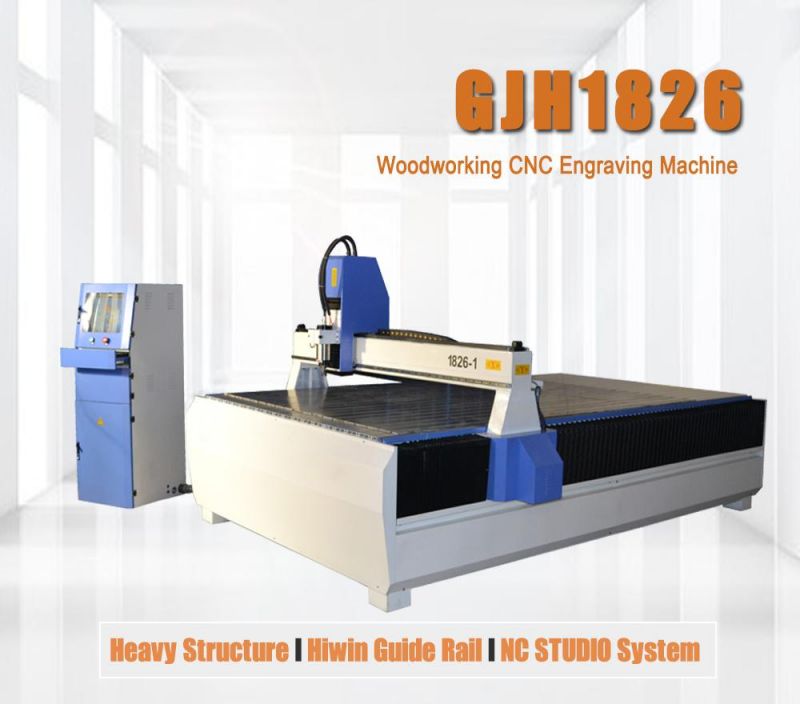

1.  Mode DT1826  machine is specially designed for advertisement. It has high precision, fast speed, cost-effective.
2.  By the way of seamless welding and vibrating treatment, the lathe bed steel structure is firm, durable, strength steel
3.  Computer cabinets and Weihong control system make the machine have good stability and high reliability.
4.  Using automatic lubrication system, it's convenient for maintenance.
5.  Owns more functions of power-off restoration, continuation on break point,  working time anticipation etc.
6.  XYZ axis adopt high-precision linear and square rail from Yintai in Taiwan.  High-precision and durable no-clearance rolling ball
    screws for Z axis, it's  imported from Yintai brand in Taiwan, rack drive for X Y axis, high-precision,  faster and better efficiency.



1.  Woodworking industry: All kinds of door, windows, cabinet, craft door, paint- free door, screen, wave board processing,
2.  Advertisement industry: suitable for processing all kinds of design of rich and   colorful model, Such as labels. Architectural molds,
     badge, engraving plate . exhibition boards, doorplate. Direction board, decoration and so on.
3.  Handcraft industry: apply to engraving patterns and characters on all kinds of materials , such as wood,bamboo, marble , organic
     board, double color  board.
4.  Other industry: Relief carving, photograph craving, openwork engraving,plane engraving, cutting and milling bottom










NO	Performance index	Performance index	Parameter	Optional
1	Working area	X axis	1800mm
		Y axis	2600mm
		Z axis	180mm
2	Table size		1800mm*3100mm
3	Accuracy	Processing precision	0.05mm
		Repositioning precision	0.05mm
4	Drove mode	X axis	Helical Rack and Pinion
		Y axis	Helical Rack and Pinion
		Z axis	Ball Screws
5	Speed	Max travel speed	50000mm/min
		Max engraving speed	20000mm/min
6	Spindle(Water-cooling)	Spindle power	4.5KW	0.8KW_7KW
		Spindle speed	0_24000r/min
7	Running mode		Servo motor	Stepper motor
8	Operating voltage		AC220V/50HZ
9	Command code		G code
10	Operating system		Nc studio
11	Net weight		1800KGS

 1. One year warranty under normal use and we supply lifelong maintenance.2. 24 hours technical support by Phone, Email, Skype, Msn, or romote.3. Free training to make sure you master the operation of the cnc router.4. Usually, we will manufacturer the machine as our regular design.5. X Y Z Working Area could be custmer-oriented designing.6. Special configuration could be customer-oriented designing.
 2040/1325/1826, plastic, acrylic, stone, wood CNC router
Woodworking , Advertising CNC Carving Machine
from professional cnc router manufacturer.

If you have specific requirment for woodworking engraving machine cnc router, customization is available.
