• Model NO.：ELECNC-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Inverter：China 7.5kw Inverter
• Frame Size：1300X2500X200mm
• Working Size：900*1500 mm
• X,Y,Z Repositioning Accuracy：China #25 Linear Guide Rail, Helical Rack Gear
• Working Voltage：AC220V,50,60Hz, 3pH (Option: 380V)
• Spindle Power：China 6kw Hqd Air Cooling Spindle*3
• Transmission：Taiwan Tbi Ball Screw and Linear Guide Rail
• Drive Motors：750W Leadshine Servo Motor & Driver
• Operating System：DSP System (Options: Ncstudio,Mach3 PC Soft
• Table Surface：T-Slot & Vacuum Working Table
• Transport Package：Standard Marine Export Plywood Case.
• Specification：CE, SGS, CIQ
• Trademark：BLUE ELEPHANT
• Origin：Jinan, Shandong
• Production Capacity：200 Sets,Month

Description

Parameter

X,Y,Z Working Area

1300x2500x200mm

Table Surface

T-slot & vacuum working Table

X, Y Structure

China #25 linear guide rail, helical rack gear

Z Structure

Taiwan TBI Ball Screw and linear guide rail

Spindle Power

China 6kw HQD Air Cooling Spindle*3

Drive Motors

750W leadshine servo motor & driver

Inverter

China 7.5kw Inverter

Working Voltage

AC220V/50/60Hz, 3PH (Option: 380V)

Lubrication

Automatic lubrication system

Option

7.5kw water circulation vacuum pump;

3.0kw double pocket new type dust collector

Tool sensor

Auto tool sensor

Position cylinder

Auto position cylinder

Control box

Independent control box

Command Language

G Code

Operating System

SYNTEC control system

Collet

ER32

X,Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9 Software

Running Environment  Temperature

0 - 45 Centigrade

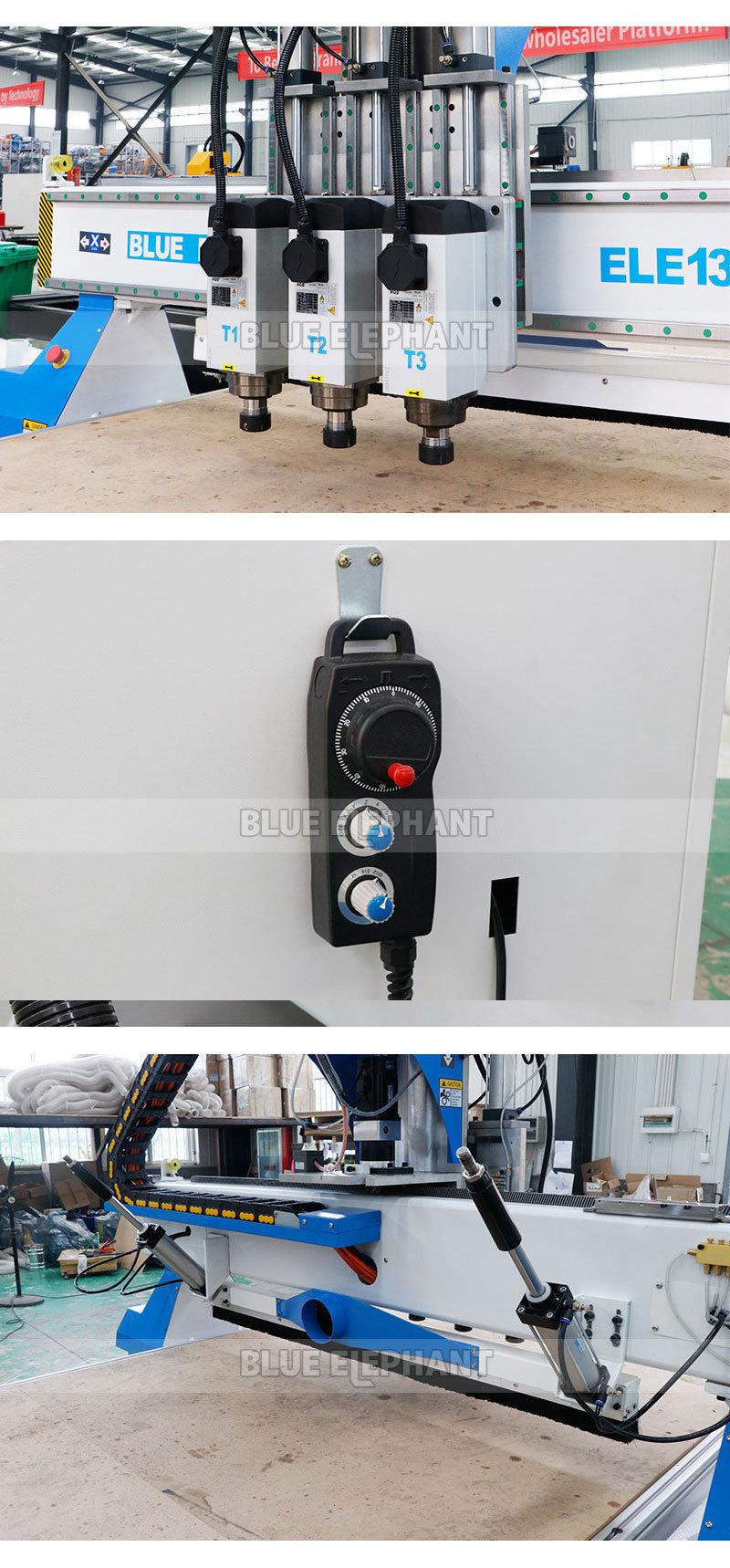

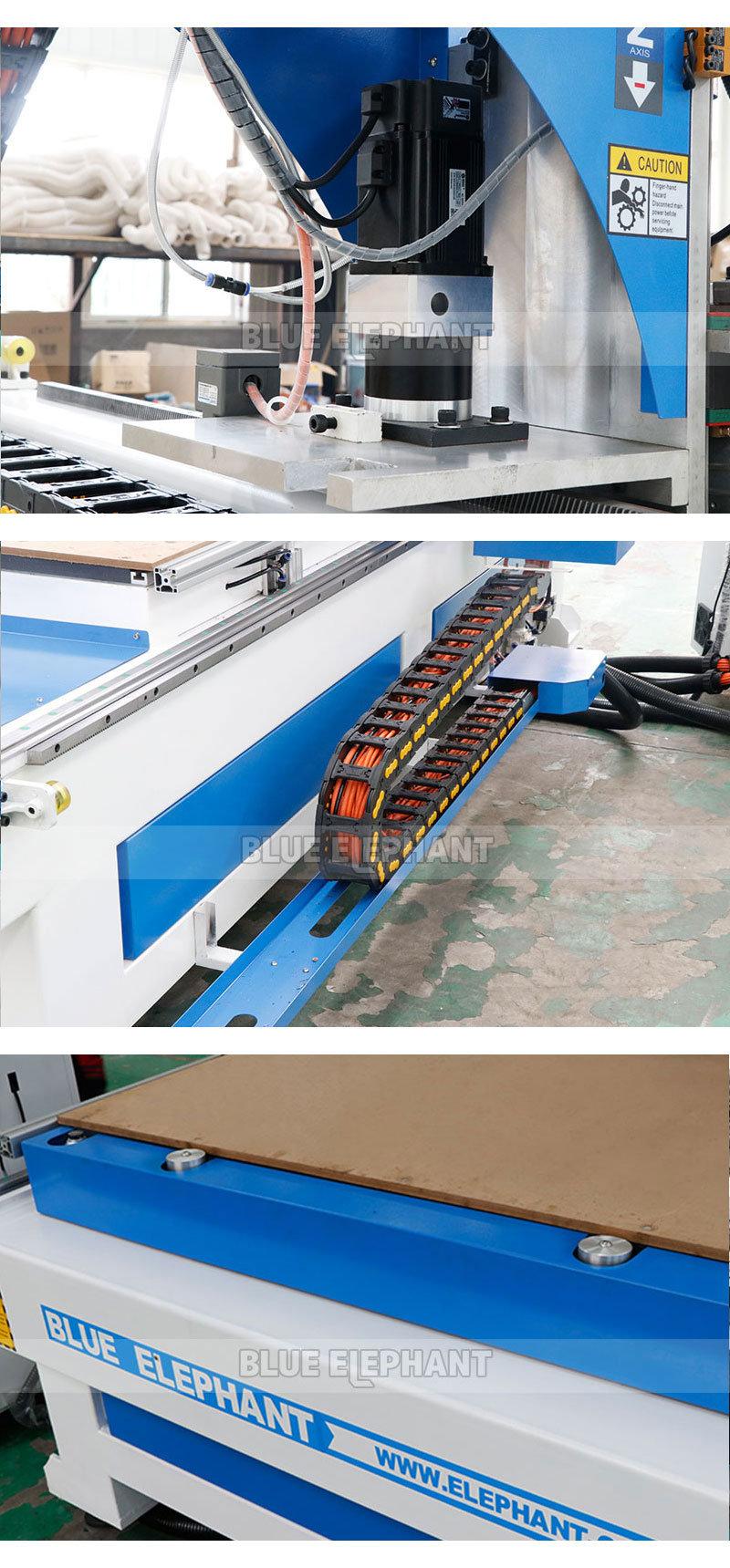

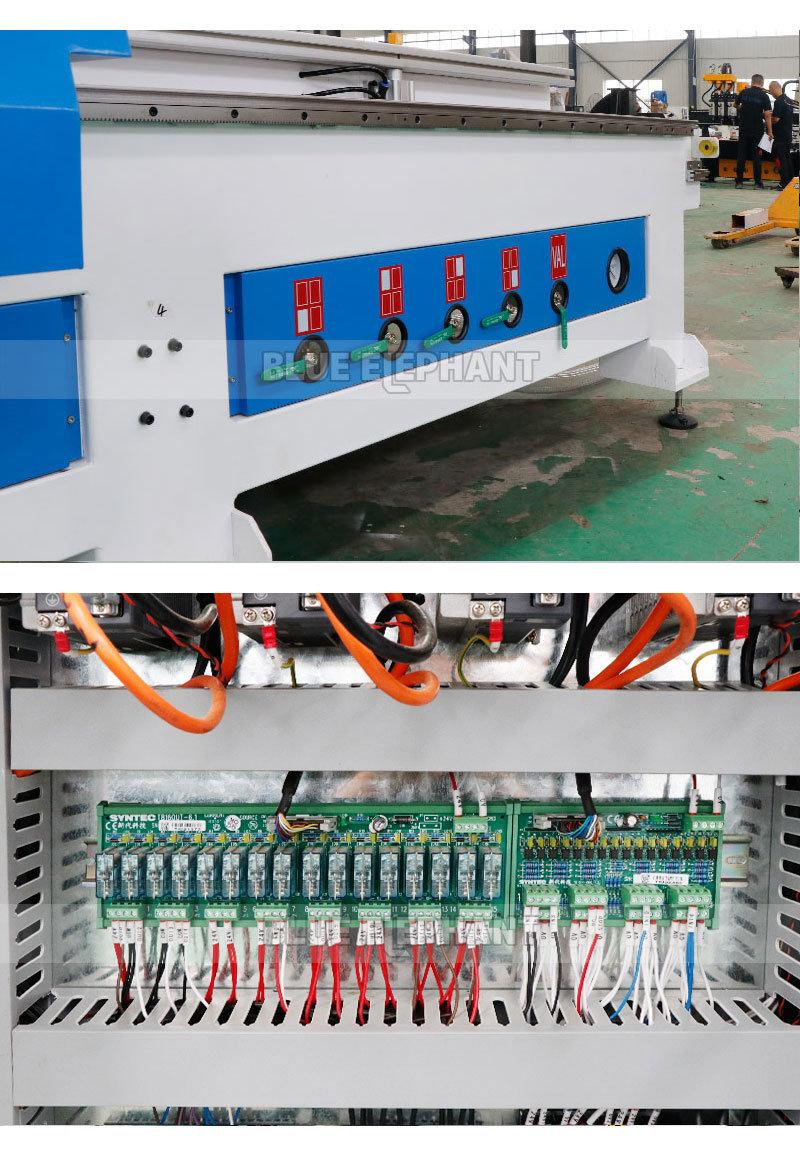

Detail Image



Application

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

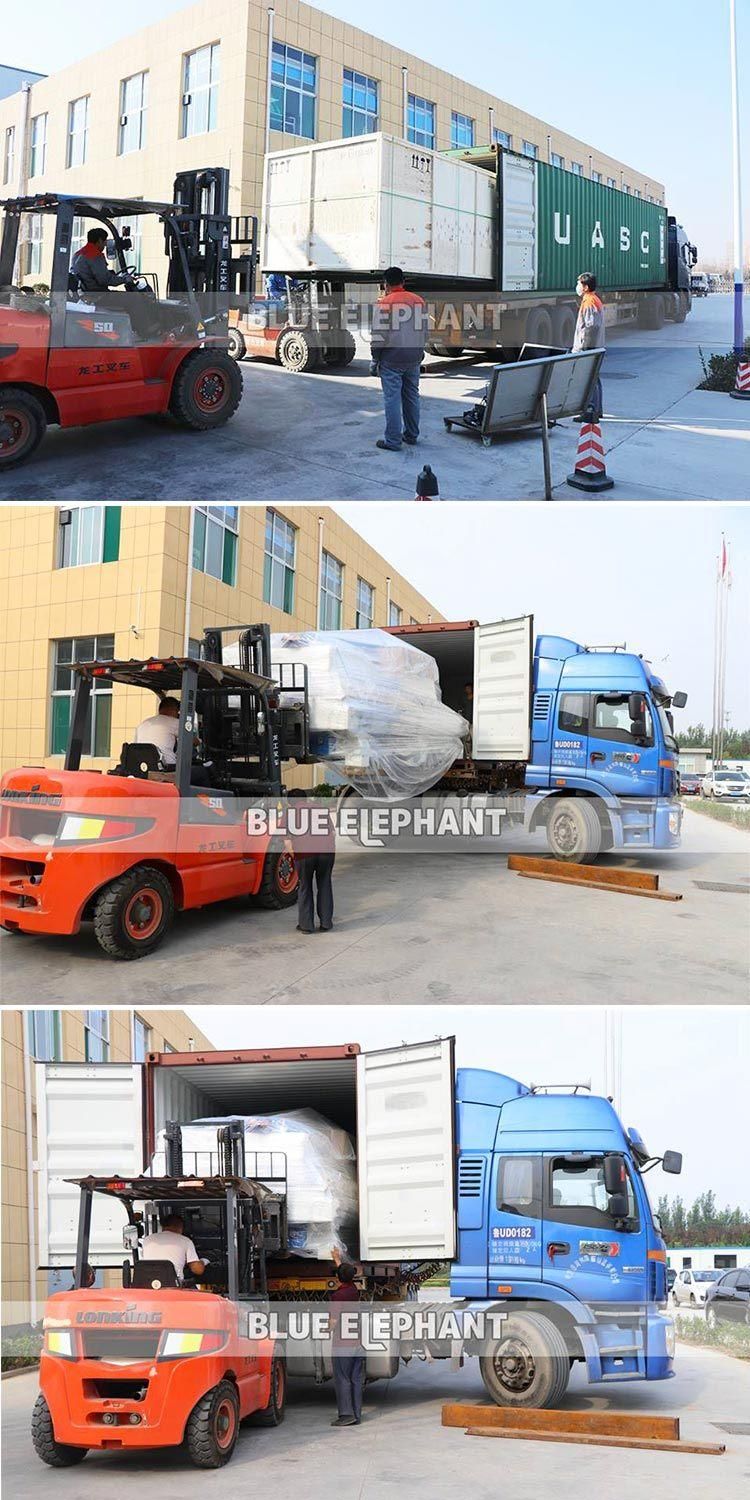

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. inner package: Stretchy film and plastic film for humidity.

3. We can package according to your requests.

Delivery Detail: Shipped in 25-30 working days after payment.

Guarantee and After-sale service:

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.

BLUE ELEPHANT

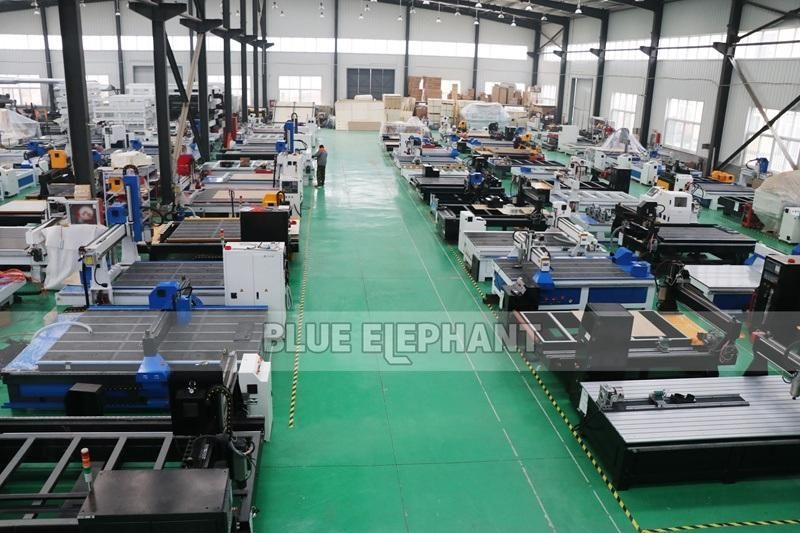

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City , Shandong Province .

We have always been developing to the research and manufacturer of CNC router machine, plasma cutter, laser cutting engraving machine, which have passed CE, SGS, TUV etc certification.
